AI Triage & Remediation

Note

COMING SOON

This capability has not yet been released. This documentation is intended to help stakeholders prepare in advance for adoption of the new capability.

Overview

AI Triage & Remediation is an agentic AI capability that dramatically streamlines triage and remediation workflows. This feature comprises two distinct tools:

  • The AI Triage agent evaluates new vulnerabilities identified in your project and provides insights into the Reachability and Exploitability of each vulnerability. It incorporates risk context to determine whether the exploitable method is reachable by your application and checks if masking and sanitization measures are in place to prevent exploitation. This allows teams to distinguish between findings that are theoretically vulnerable and those that present a concrete risk in the running application.

  • The AI Remediation agent complements this analysis by generating suggested code fixes for supported vulnerabilities. For GitHub Code Repository Integration projects, remediation creates a pull request containing the proposed fix. For other supported project types, remediation guidance is provided within Checkmarx One.

Together, these capabilities dramatically reduce manual analysis effort and accelerate remediation without disrupting existing development workflows.

Methods for Running AI Triage & Remediation

There are three ways to run AI Triage and Remediation on risks identitified by Checkmarx One:

  • Manual Activation - You can launch the AI Triage and Remediation activities for specific risks identified in a Checkmarx One scan. This is done via the Risk Orchestration screen by selecting a project, drilling down to a specific risk and clicking on the button to launch the desired action.

  • Automated Workflow - You can create an automated workflow on the global or project level in which you defined criterion for which AI triage runs automatically upon scan creation.

    Notice

    The automated workflow is not currently supported for AI Remediation.

  • PR Decoration Workflow - For GitHub Code Repository integration projects, you can configure the project to run AI triage based on pre-defined criterion. You can also interact with Checkmarx One from the PR decoration created by a Checkmarx scan.

Automatic State Change

When AI Triage determines that a change in triage state is justified, the State is adjusted automatically, based on the following logic:

  • When a vulnerability is determined to be Reachable and Exploitable, the state is set as Confirmed.

  • When a vulnerability is determined to be not Reachable or not Exploitable, the state is set as Proposed Not Exploitable.

    Notice

    When the state has been set by AI, the AI icon is shown next to the state.

Requirements

Current Limitations

  • Currently supported for the SAST and SCA scanners only

    • Initiating AI Triage and Remediation via Risk Orchestration is supported only for SAST scanner

  • Creating a PR with remediated code is only available for GitHub Code Repository integration projects

  • AI Remediation must be launched manually via Risk Orchestration or via PR workflow, not by automatic configuration

Running AI Triage & Remediation

The following sections explain how to run AI Triage & Remediation using the various available methods.

Running Manual AI Triage & Remediation

You can initiate AI Triage or AI Remediation for an individual vulnerability directly from Risk Orchestration.

  1. In the Checkmarx One web application, navigate to ASPM > Risk Orchestration.

  2. Open the project containing the vulnerability you want to review.

  3. Select the vulnerability in the results table.

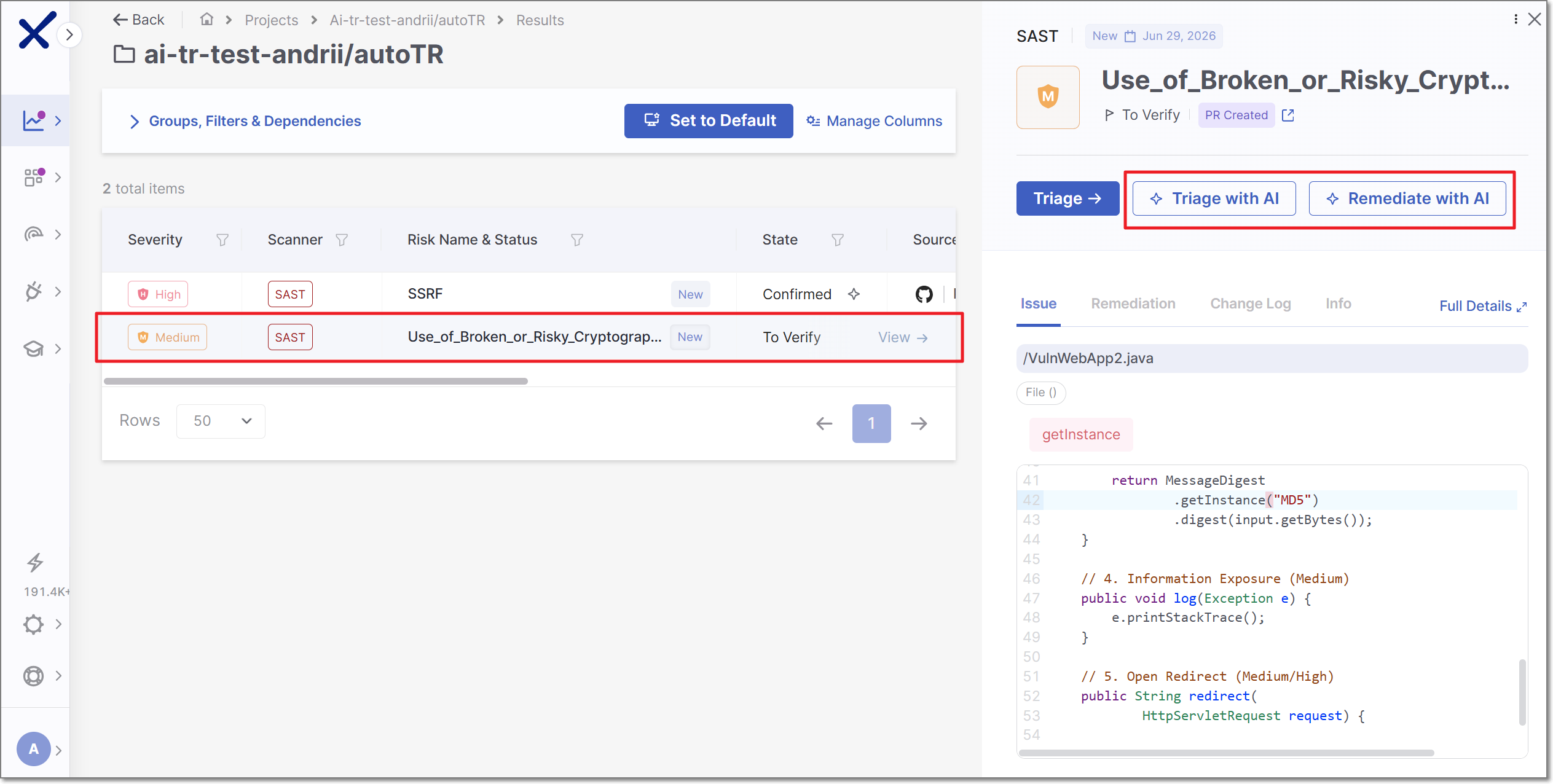

The selected vulnerability opens in the side panel, where you can choose to run aitriagebutton.png or aitriagebutton2.png on the selected risk.


Running Automated AI Triage

AI Triage can be configured to run automatically upon scan completion. Automatic execution rules can be defined at the account level and optionally overridden for individual projects.

Configuring AI Triage in Global Account Settings

In the global account settings you can define the default rules that determine when AI Triage is automatically run across your organization.

To configure the global account settings:

  1. In the Checkmarx One web application, navigate to Settings > AI Assist.

  2. Activate the Auto-triage toggle.

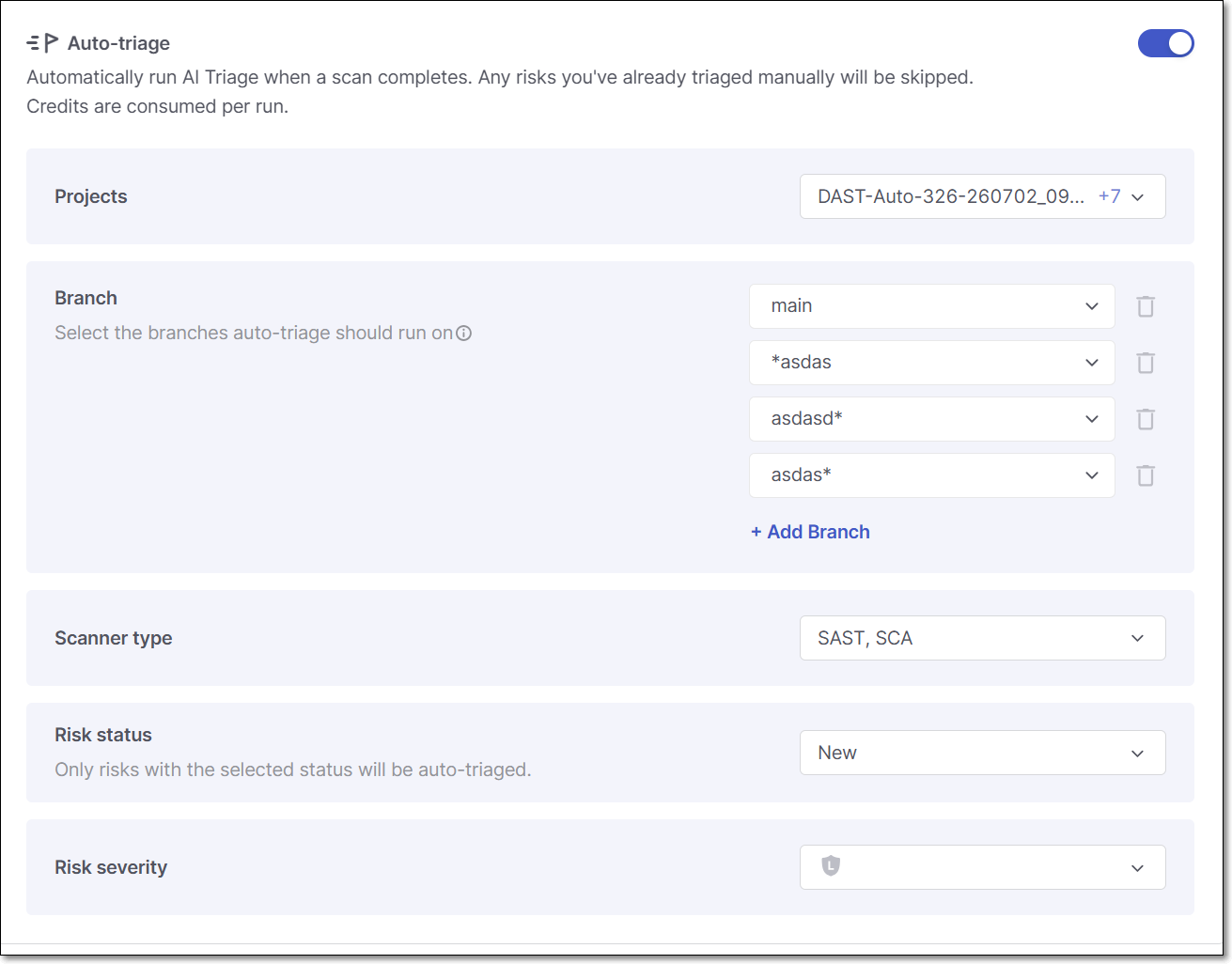

    The Auto-triage configuration options are shown:


  3. Specify values for the following parameters:

    • Projects – The projects to which the following rules for running AI Triage apply.

    • Branches – The branches which trigger automatic AI Triage.

    • Scanners – The scanners whose results trigger AI Triage.

    • Risk Status – The vulnerability status values that trigger AI Triage.

    • Risk Severity – The vulnerability severity levels to include.

  4. For each parameter, select the Allow Override checkbox to permit individual projects to customize their own Auto-triage settings.

  5. Click Save.

Configuring Project-level Settings


Automatic AI Triage can also be configured for individual projects. Project settings can be used when AI Triage has not been configured at the account level, or to customize the account-wide settings when Allow Override is enabled.

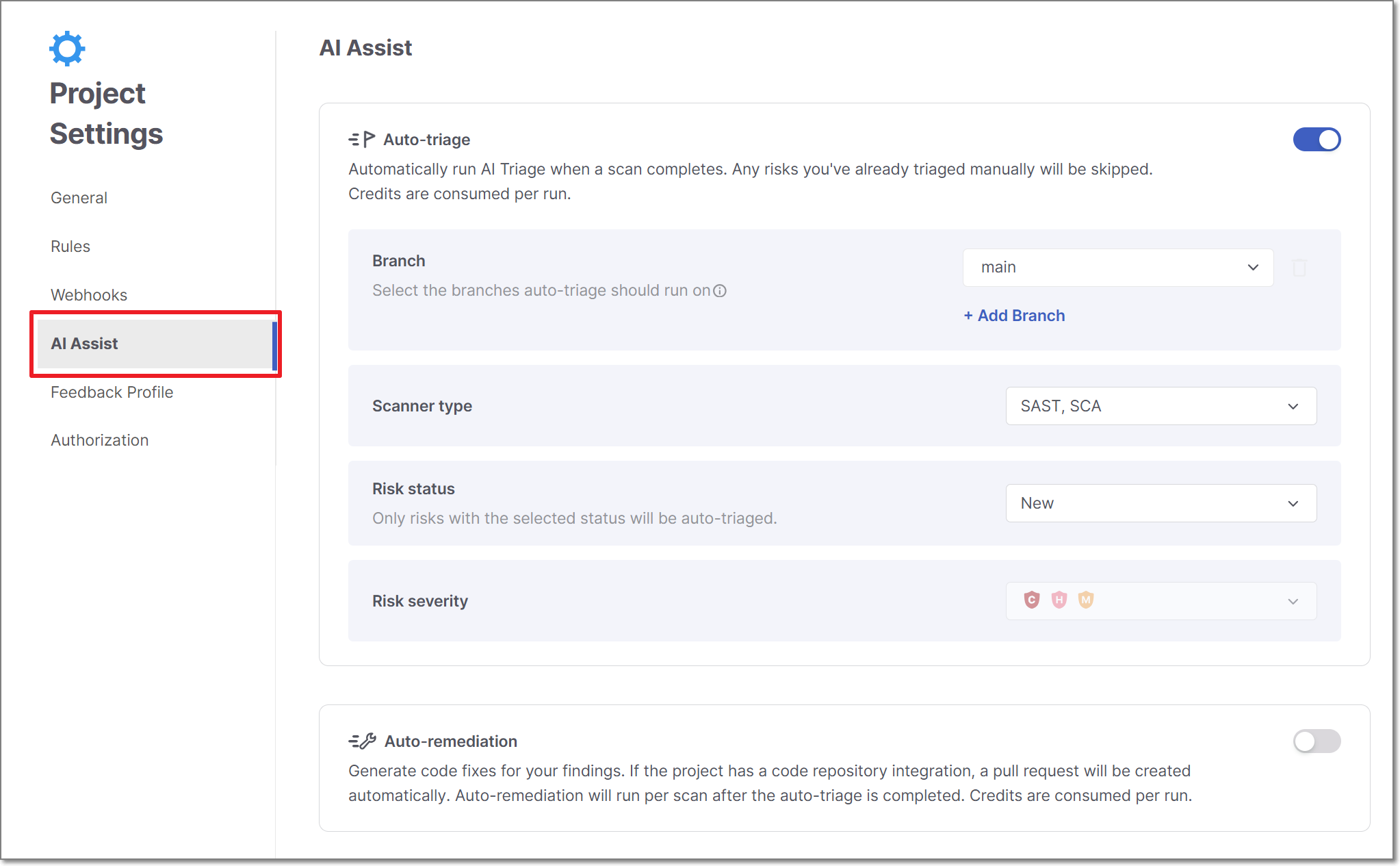

  1. Navigate to the desired project's Project Settings > AI Assist tab.

  2. Configure the Auto-triage settings as explained above.

  3. Click Save.

The available configuration options are the same as the organization-wide settings, except that the project is already selected.

Running GitHub PR AI Triage & Remediation

For GitHub Code Repository Integration projects, AI Triage & Remediation integrates directly into the pull request workflow. When a pull request triggers a Checkmarx scan, AI Triage runs automatically on "Net New" risks (i.e., new vulnerabilities being introduced into the protected branch by a pull request) according to the pre-configured criterion set for that project. The triage results are displayed in the pull request decoration. Developers can then request AI Remediation directly from the pull request. When remediation is generated, Checkmarx creates a separate pull request containing the suggested code changes for review.

Enable AI Triage & Remediation for a Code Repository Integration Project

AI Triage & Remediation is configured at the project level in the Checkmarx One web application (UI). It can be enabled during project creation, or at a later time by updating the project settings. Users control which projects have AI Triage & Remediation enabled and which severity vulnerabilities are included in the triage analysis and remediation workflow.

To enable this capability on an existing project:

  1. In the Workspace Workspace.png > Projects screen, hover over the desired code repository integration project's row, click on More Options More_Options.png > Project Settings.

  2. In the Project Settings, navigate to the Code Repository tab.

  3. In the permissions section, activate the toggle for AI Triage & Remediation.


    A confirmation dialogue is displayed.

  4. Click Activate to enable the feature.

  5. For the Applies to severities threshold, select the severity levels that this feature will apply to.

  6. Click Save.

AI Triage & Remediation Workflow

  1. Create a pull request

    In GitHub, open a pull request from a feature branch into a branch that is associated with a Checkmarx project where PR scanning and AI Triage & Remediation are enabled (as configured in the Checkmarx One web application).

  2. Checkmarx One scan runs and triggers triage

    A Checkmarx scan runs on the pull request. The results are added as a comment through PR decoration, including a table of New Issues (vulnerabilities introduced in this PR) and Fixed Issues (vulnerabilities that were resolved in this PR).

    The AI Triage agent automatically analyzes each of the New Issues that meet the designated severity threshold and the PR decoration shows the results of the Triage analysis.


  3. Trigger remediation for a vulnerability

    Request a fix for one or more a vulnerabilities by submitting a comment with @checkmarx followed by a natural language request for remediation, e.g., @checkmarx remediate issue 1 or @checkmarx fix all issues.

  4. Review remediation output

    The Remediation agent responds with a comment indicating that a remediation pull request has been created. A link is provided to view the generated pull request.

    Open the remediation pull request, and review the suggested code change.

  5. Merge the remediation changes

    If you approve the changes, merge the fixed branch into the source branch of your original pull request.

  6. Complete the original pull request

    Once the required fixes are applied, proceed with merging the original pull request according to your standard workflow.

Viewing AI Triage and Remediation Results

Results from AI Triage and Remediation are shown in the Risk Orchestration screen, when the relevant project is opened and the relevant risk is selected.

When AI Triage causes an automatic state change, the AI icon is shown in the risks table in the State column.

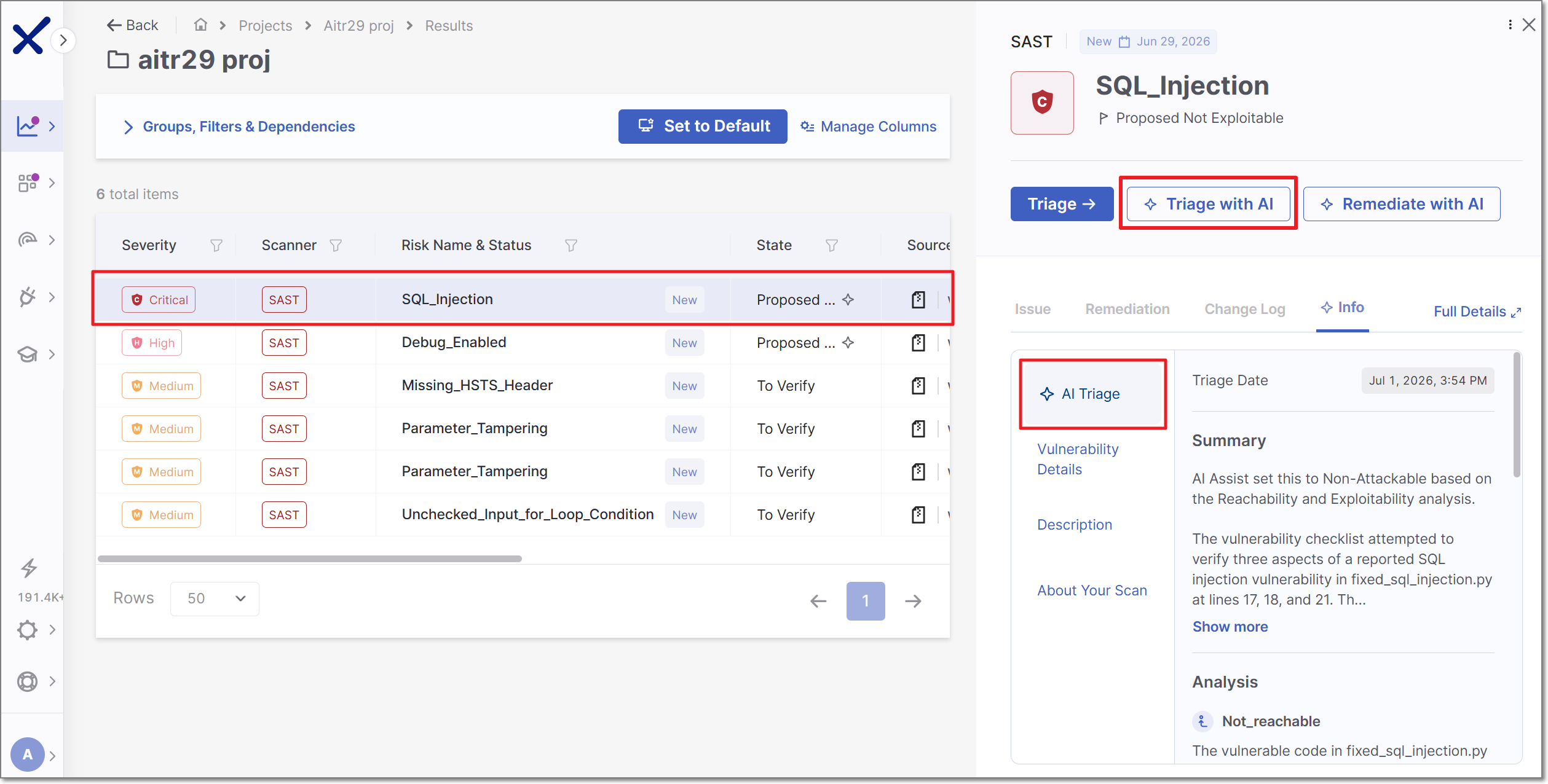

AI Triage Results

In the side panel that opens when a risk is selected, the AI Triage results are shown in the Info tab. The results include a summary of the risk assessment as well as an Analysis section with AI's determination of whether or not the vulnerability is Reachable and/or Exploitable.

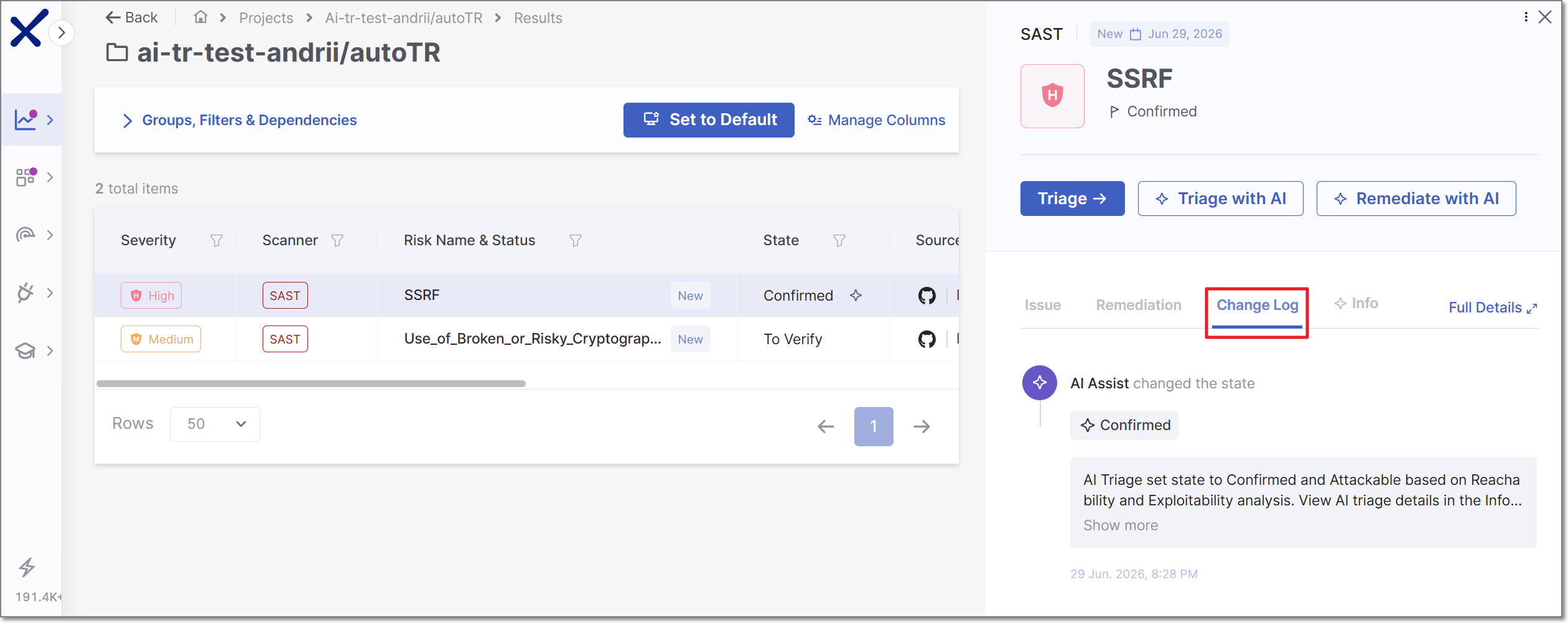

AI triage changes are also recorded in the Change Log.

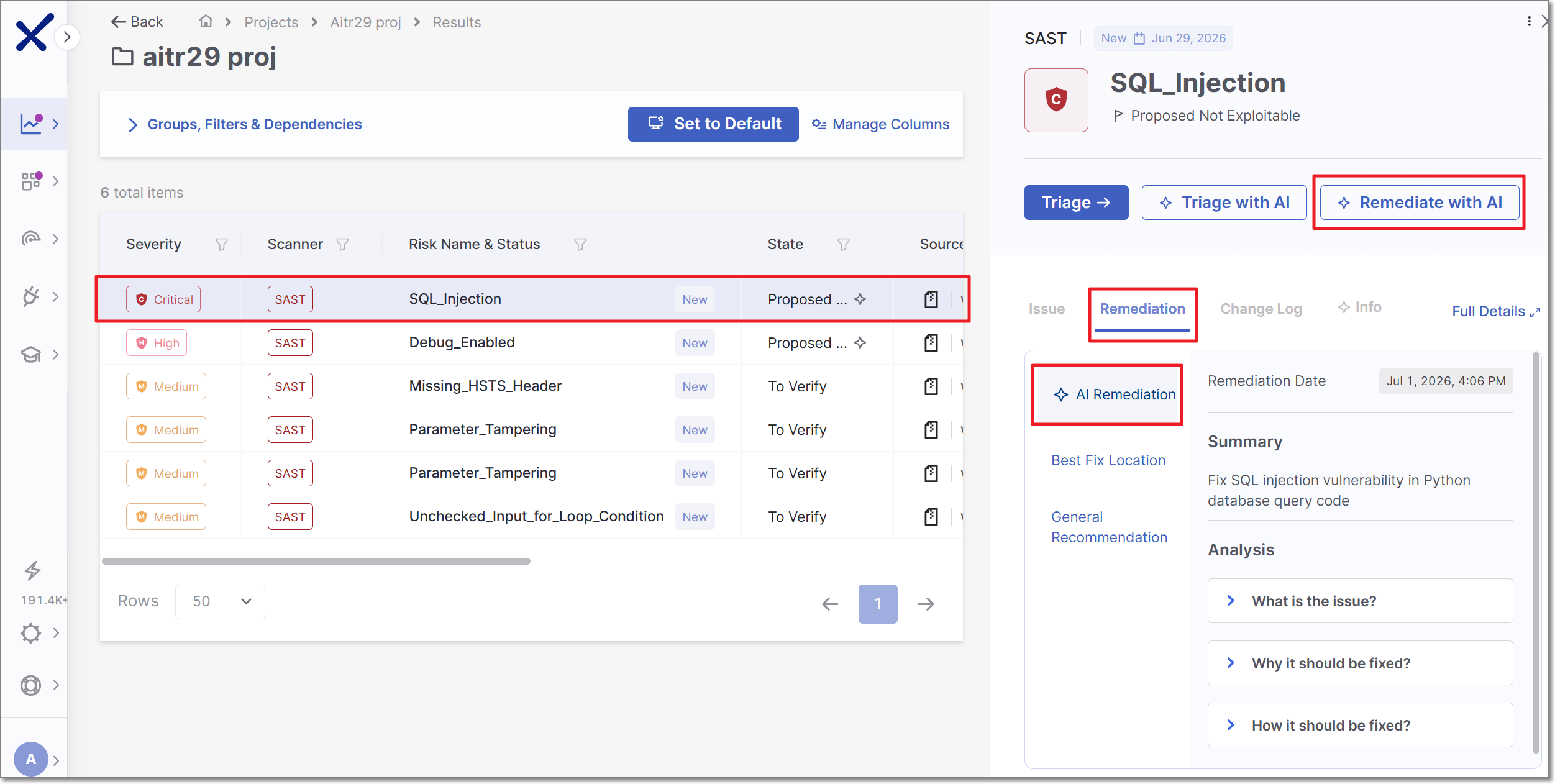

Running AI Remediation

In the side panel that opens when a risk is selected, AI Remediation results are shown in the AI Remediation section of the Remediation tab. The remediation includes a summary of the recommended fix, an explanation of the issue, why it should be addressed, and guidance on how to remediate it.


Notice

For GitHub Code Repository Integration projects, a pull request containing the suggested fix is also created. For other SCM integrations and manual projects, the remediation is available within Checkmarx One but no pull request is created.

Monitoring AI Triage & Remediation

AI Triage & Remediation Analytics

To view AI Triage & Remediation analytics:

  1. In the Checkmarx One web application, navigate to Insights.pngASPM > Analytics & Dashboard.

  2. Select the AI Assist Usage tab.

  3. Select AI Triage & Remediation.

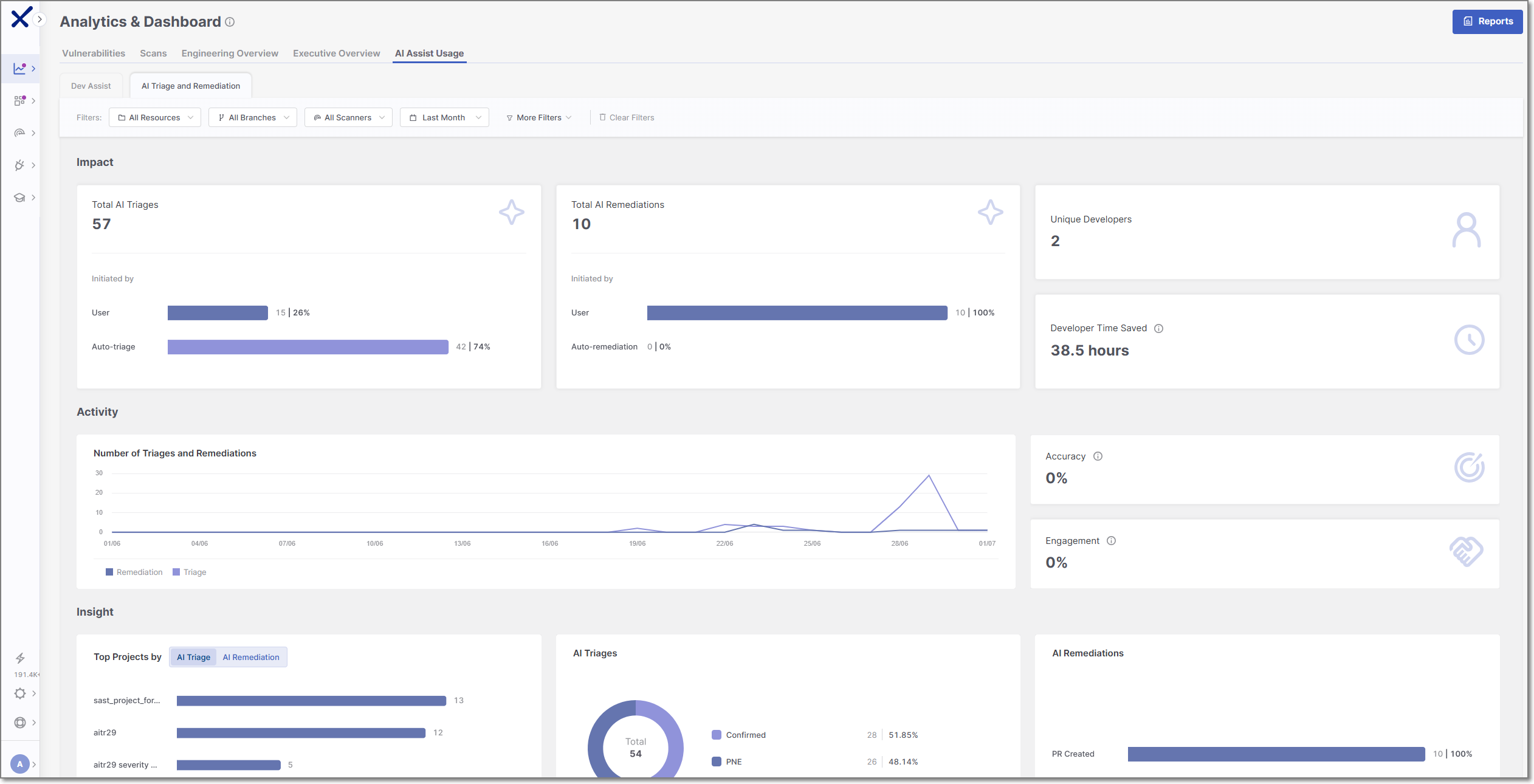

The AI Triage & Remediation dashboard provides an overview of how AI-assisted triage and remediation are being used across your organization. It includes high-level metrics such as the number of AI triages and remediations performed, unique developers using the feature, and estimated developer time saved. The dashboard also displays activity trends over time and provides insights into adoption patterns, triage outcomes, remediation results, and project usage. Use the filters at the top of the page to view analytics for specific resources, branches, scanners, time periods, or other criteria.

Monitoring Credit Usage

AI Triage and AI Remediation consume Checkmarx Credits. Checkmarx One provides both a high-level summary of your available credits and detailed reporting on credit consumption.

Important

Credit consumption data is only visible to admin users.

Viewing the Credit Usage Summary

The Account Settings > License tab provides an overview of your organization's current credit usage and projected consumption.

To access the Credit Usage summary:

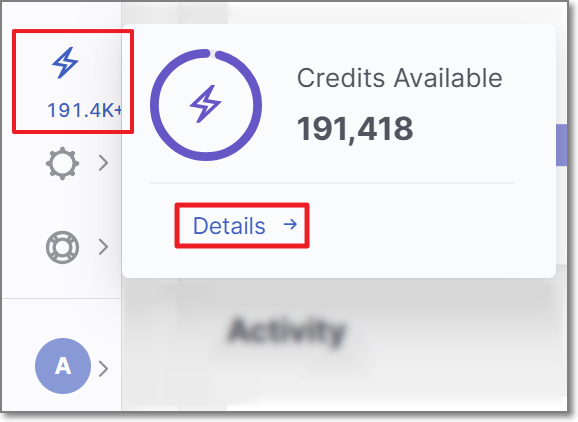

  1. In the Checkmarx One web application, click the Credits indicator in the left navigation pane.

  2. In the pop-up, click Details.

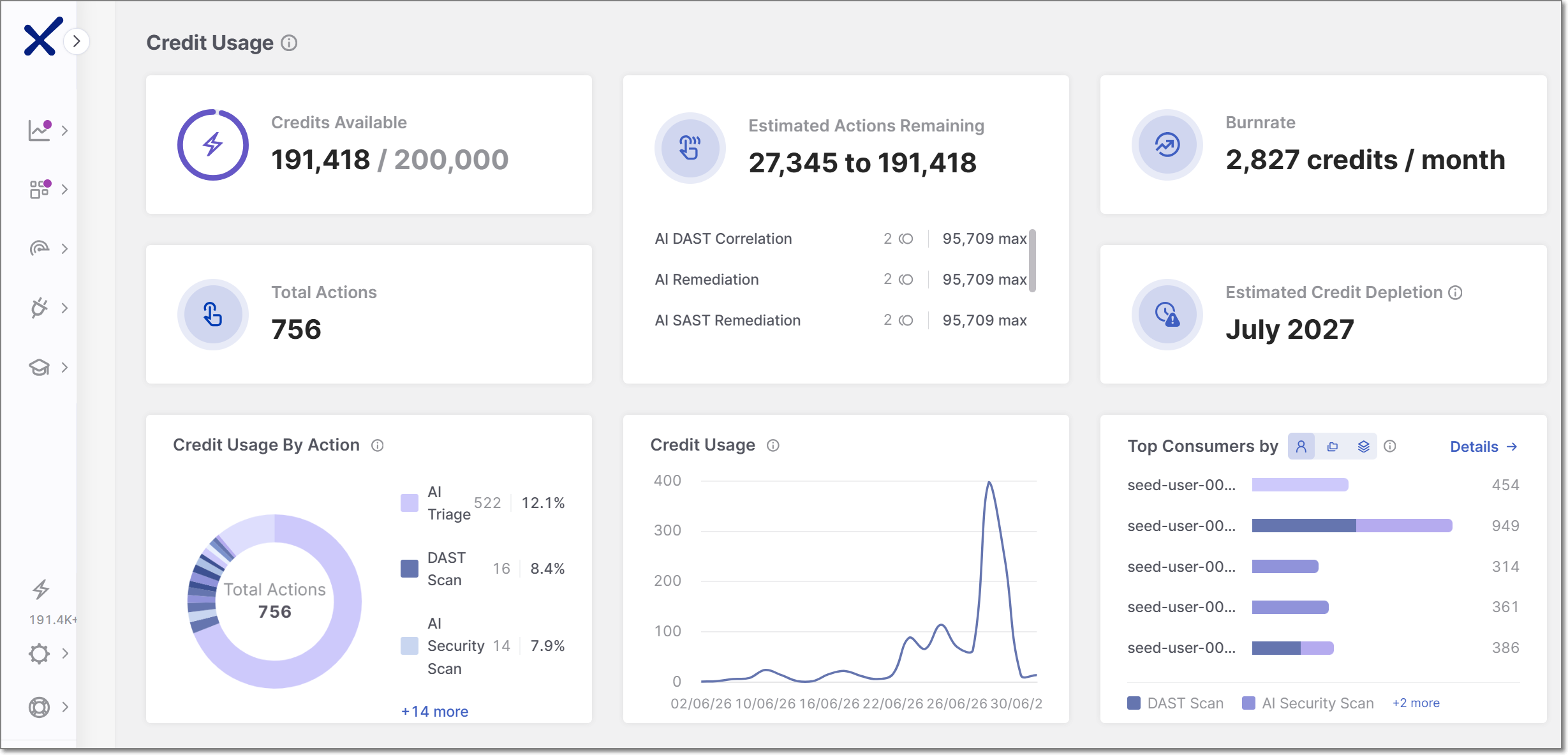

The License page opens and displays the Credit Usage section, which provides a high-level overview of your organization's AI credit consumption.


The Credit Usage section displays the following widgets:

  • Credits Available – The number of remaining credits available under your license.

  • Estimated Actions Remaining – The estimated number of additional AI actions that can be performed with the remaining credits.

  • Burn Rate – The average rate at which credits are being consumed.

  • Estimated Credit Depletion – The projected date on which the available credits will be exhausted based on the current burn rate.

  • Total Actions – The total number of AI actions performed.

Viewing Credit Usage Details

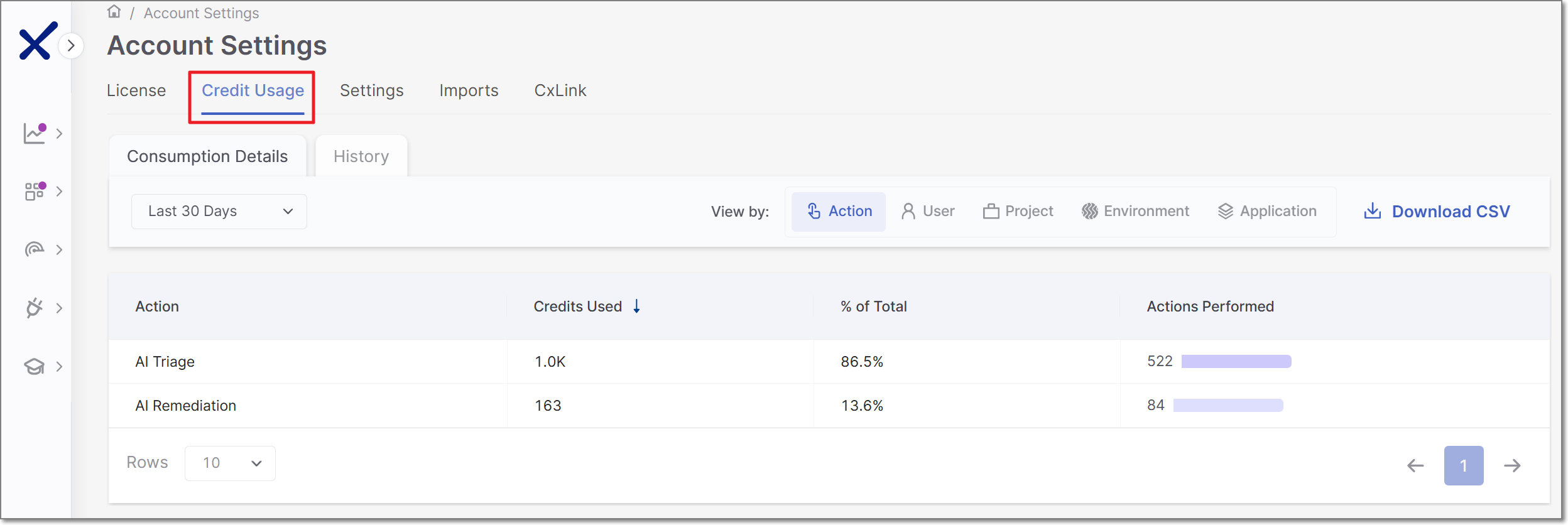

You can view additional details about credit usage by clicking on the Credit Usage tab.


The Credit Usage tab contains two sub-tabs, Consumption Details and History.

Both tabs enable the following actions:

  • Filter the displayed data by time period.

  • Export the displayed data as a CSV file.

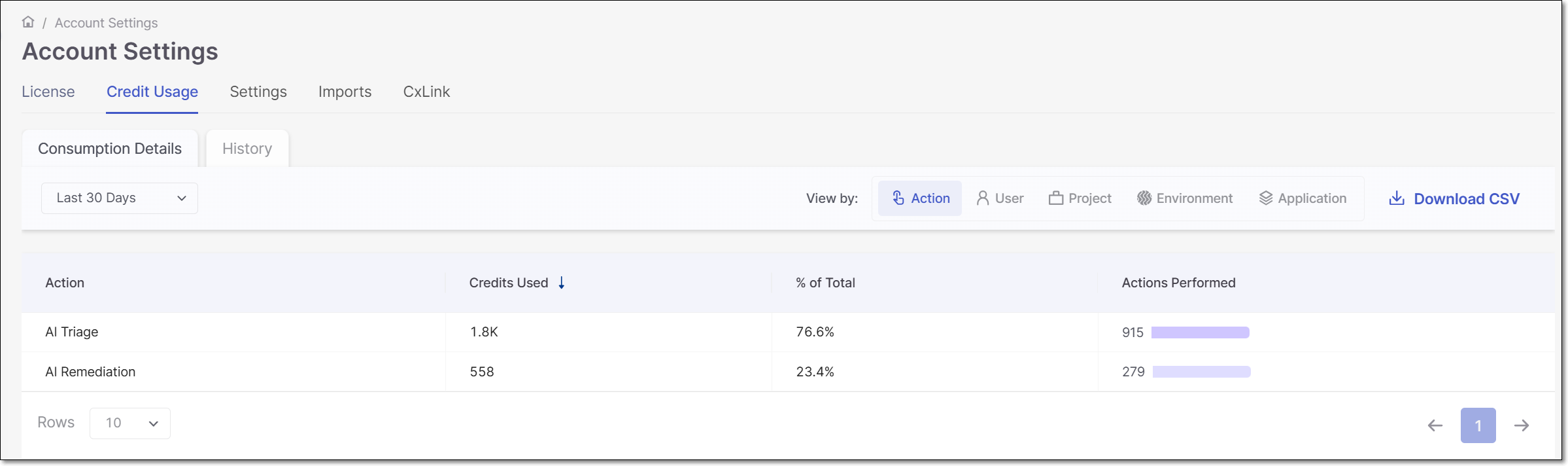

Consumption Details Tab (default)


The Consumption Details tab lets you view credit consumption broken down by Action, User, Project, Environment, or Application.

For each item displayed, the table shows the number of credits used, the percentage of total credits used by that entity and the number of actions performed.

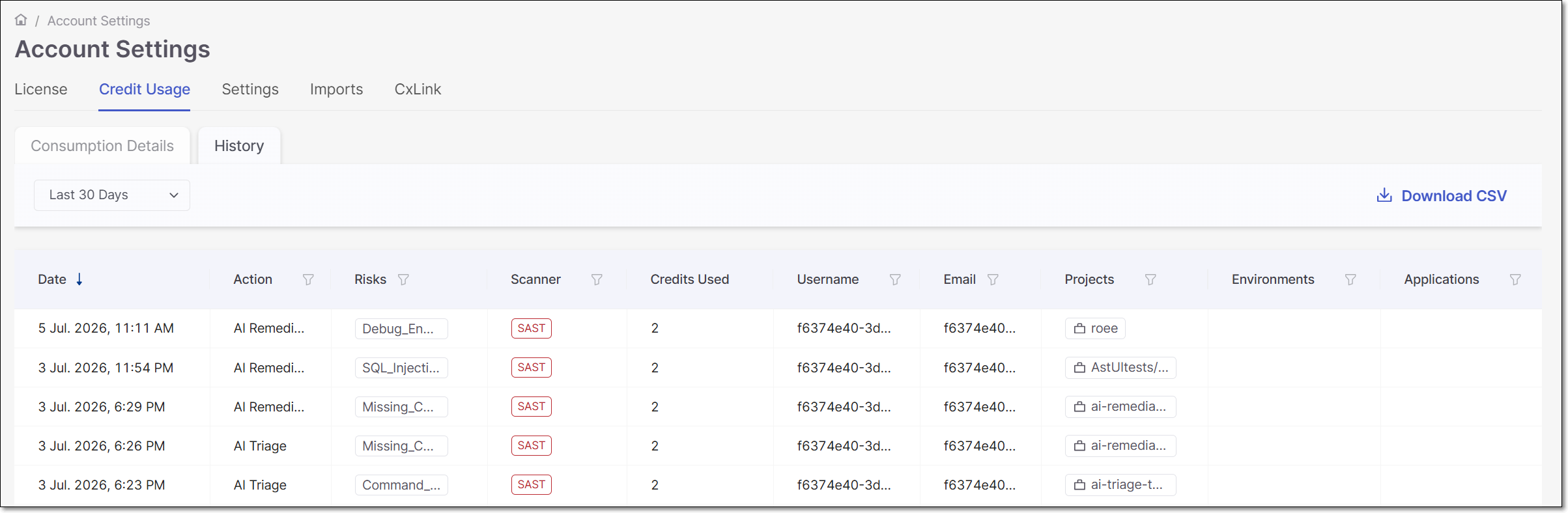

History Tab


The History tab shows a list of actions taken that consumed AI Credits. For each action details are given about the action taken, the number of credits used and the user who initiated the action.
