GitHub Self-Hosted

Notice

It is possible to add the Checkmarx One external IP addresses to the customer Firewall allowlist - For more information see Managing Checkmarx One Traffic and AWS S3 Access

Additionally, if the code repository is not internet accessible, it is possible to configure the code repository IP address instead of its hostname during the initial integration with the code repository - as it is not resolved via DNS.

Overview

Checkmarx One supports GitHub integration, enabling automated scanning of your GitHub projects whenever the code is updated. Checkmarx One's GitHub integration listens for GitHub commit events and uses a webhook to trigger Checkmarx scans when a push, or a pull request occurs. Once a scan is completed, the results can be viewed in the Checkmarx One Platform.

In addition, for pull requests, a comment is created in GitHub, which includes a scan summary, list of vulnerabilities and a link to view the scan results in Checkmarx One.

Notice

This integration supports both public and private git based repos.

The integration is done on a per project basis, with a specific Checkmarx One Project corresponding to a specific GitHub repo.

Notice

You can select several repos to create multiple integrations in a bulk action.

Prerequisites

  • The source code for your project is hosted on a GitHub repo.

  • You have a Checkmarx One account and have credentials to log in to your account.

    Important

    Creating new import configurations or editing existing configurations requires update-tenant-params permission. Importing new Projects using an existing configuration requires create-project permission.

    Our best practice recommendation is to create a dedicated service user for the purpose of creating the integration. This will ensure that scans created via the integration will have a representative name.

  • The GitHub user has admin privileges for this repository, see Code Repository Integrations.

  • You have your GitHub Client ID & Client Secret - See Retrieving GitHub Client ID & Client Secret.

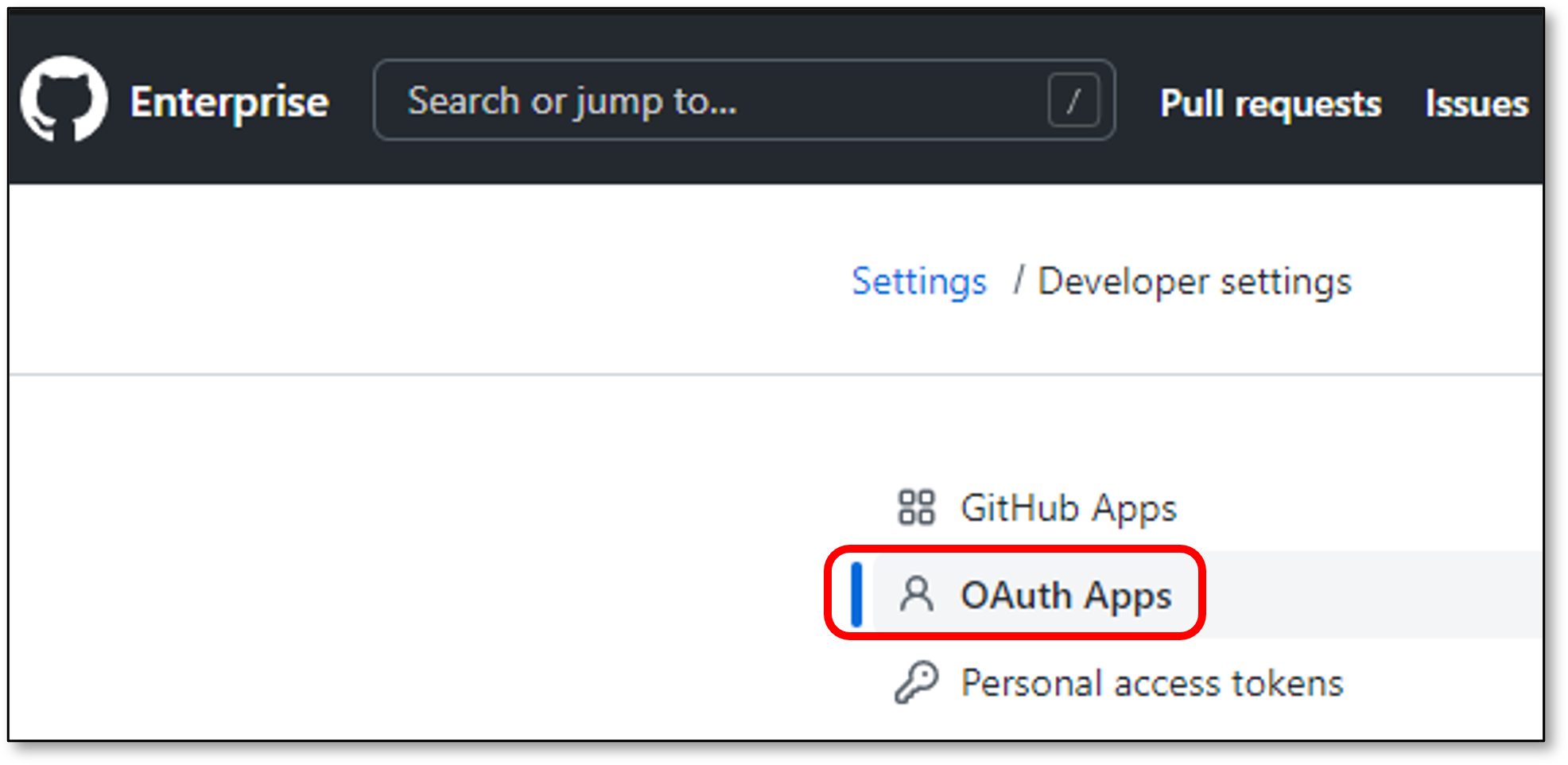

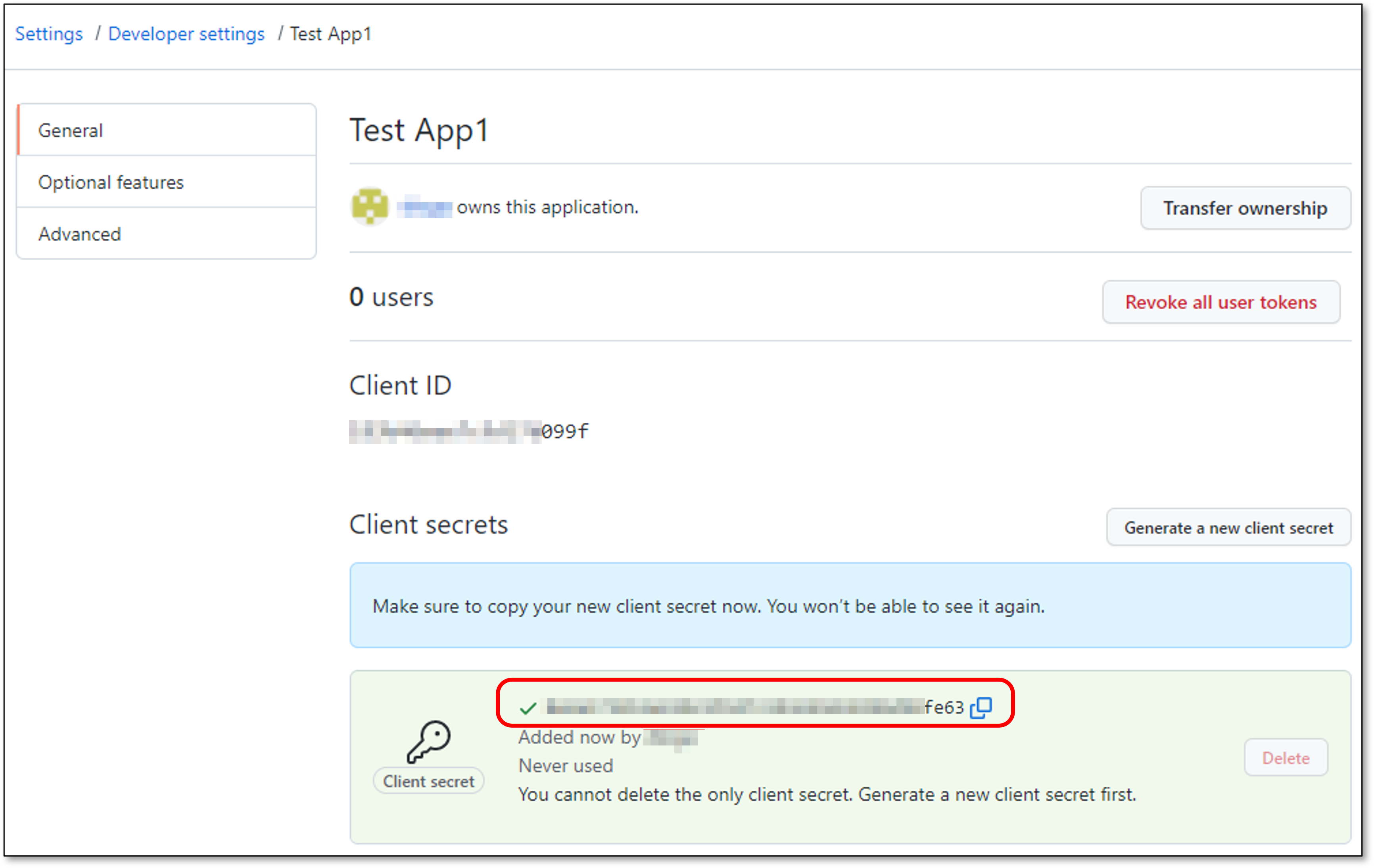

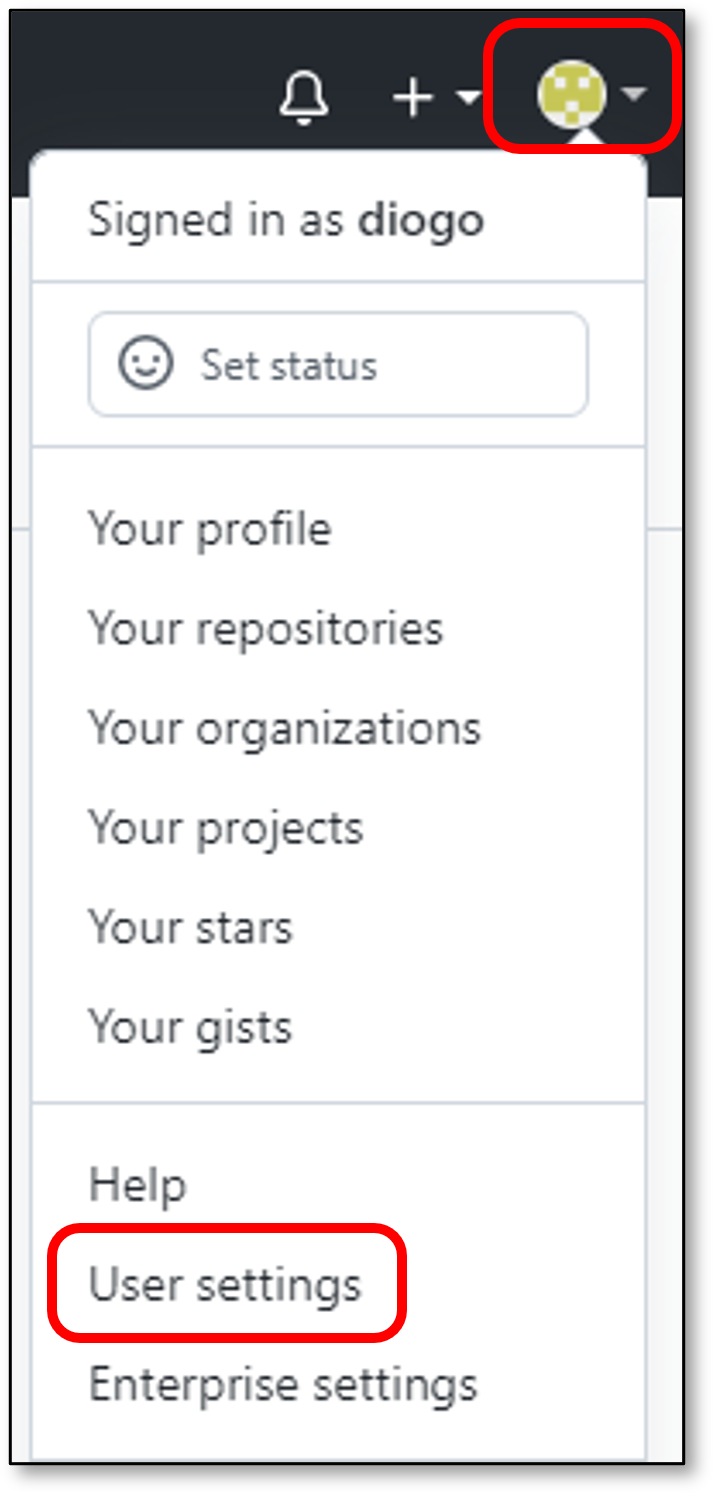

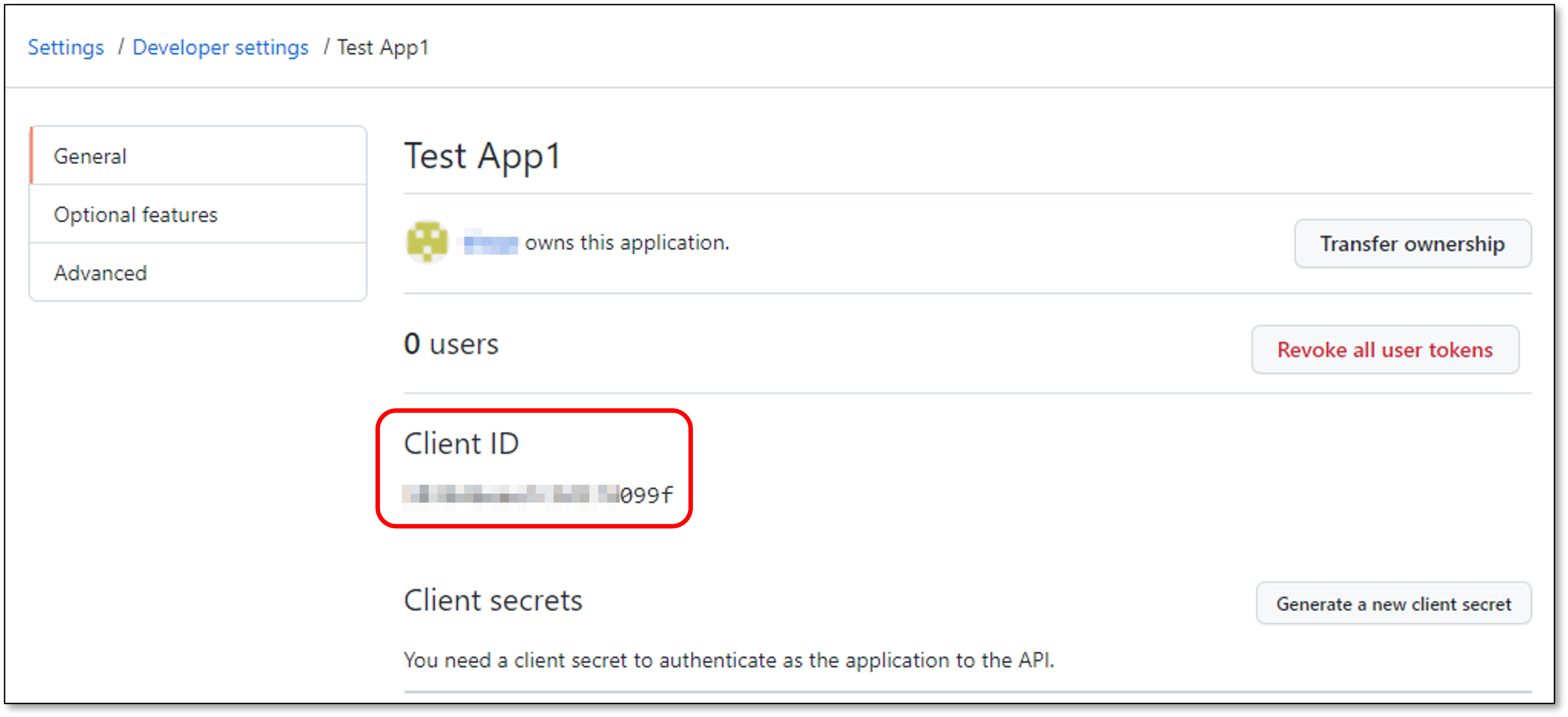

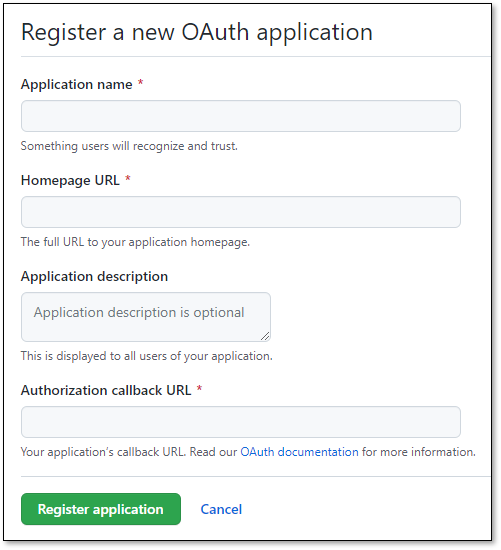

Retrieving GitHub Client ID & Client Secret

Setting up the Integration and Initiating a Scan

This process involves first connecting to your repo by specifying the repo URL and your authentication credentials, and then selecting the repos to import and configuring the Project settings.

It is possible to configure multiple configurations for connecting to GitHub self-hosted code repositories, each using a different URL and/or different authentication credentials. Once the initial configuration is set up, for each subsequent import action you can choose either to use the existing configuration or to create a new one.

Note

If a GitHub organization is renamed or moved, the existing connection becomes invalid. In such cases, the organization must be reimported to restore the integration.

To create GitHub self-hosted code repository Projects:

  1. In the Workspace Workspace.png, click on New > New Project - Code Repository Integration.


    The Import From window opens.

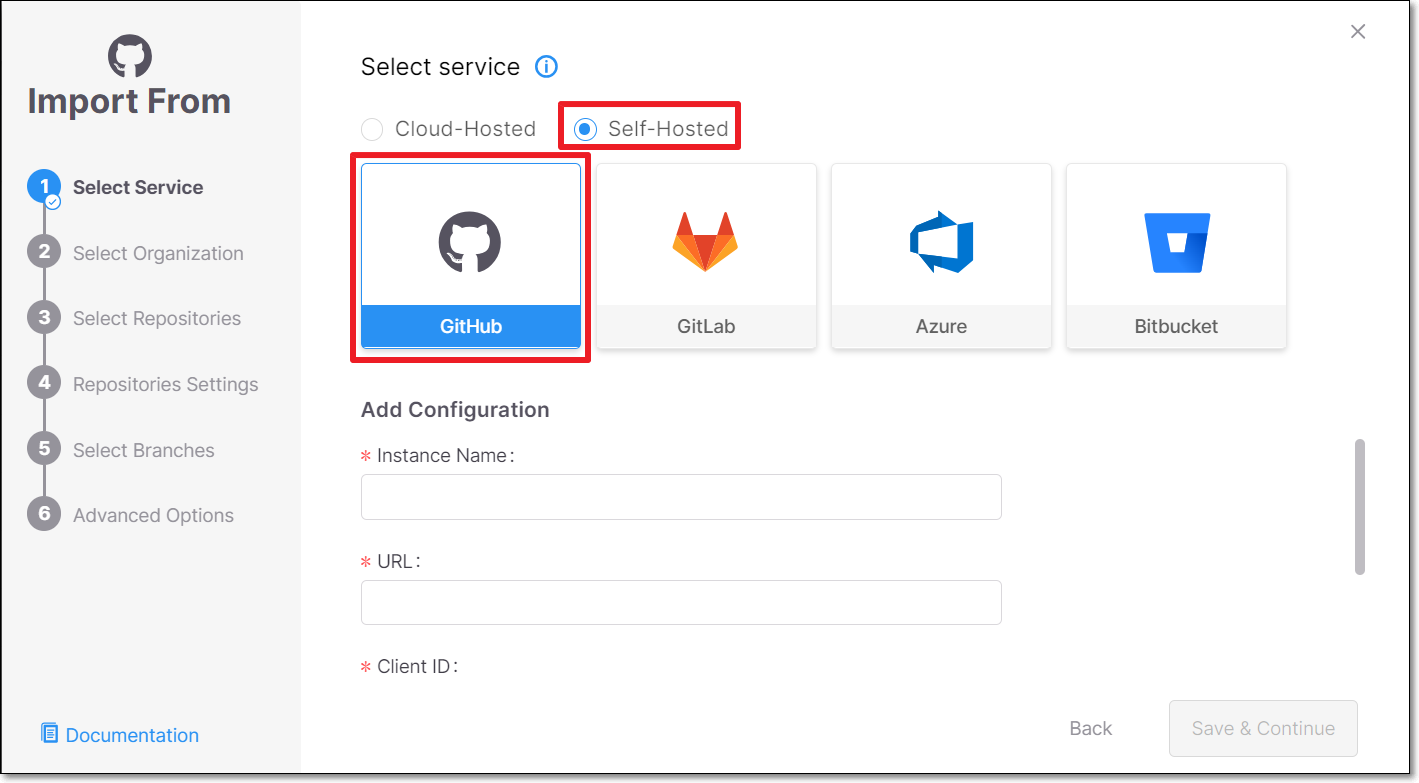

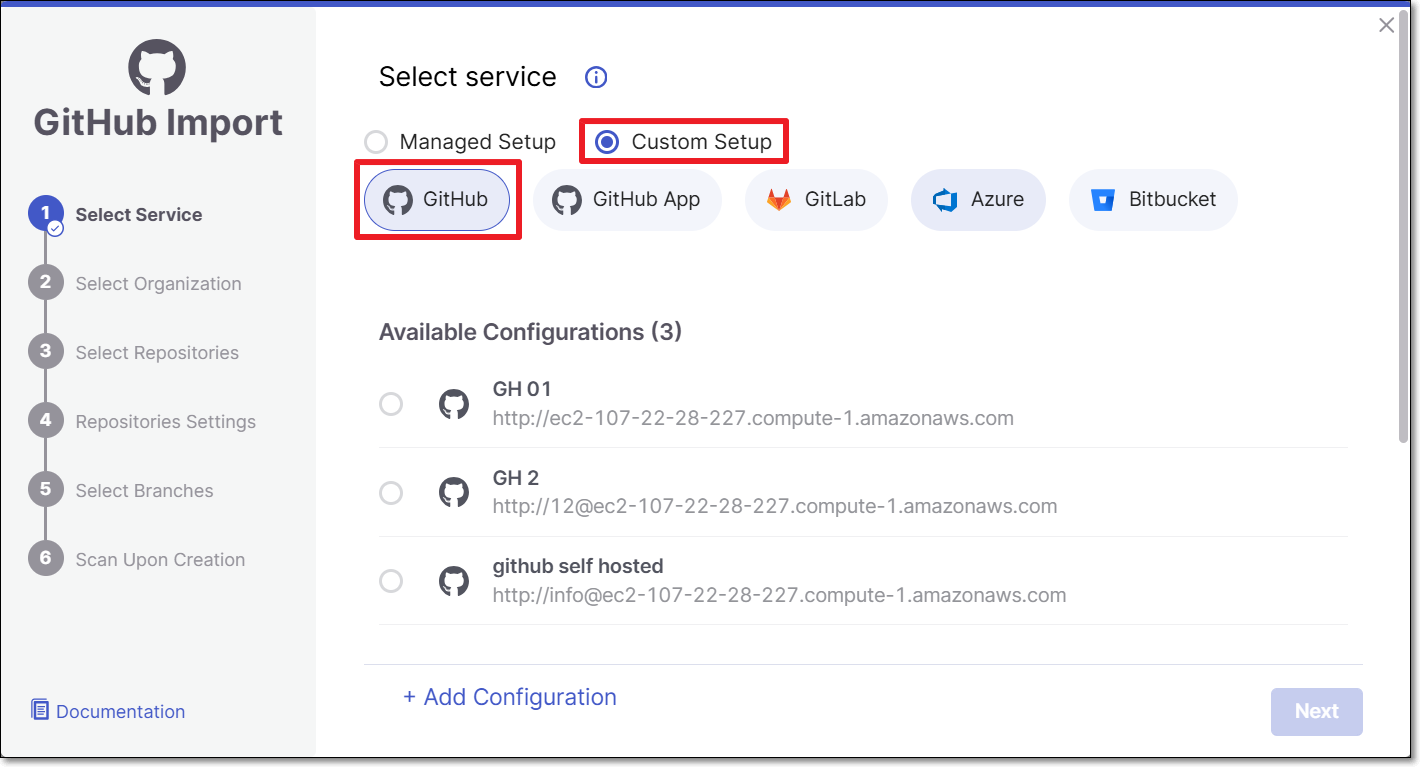

  2. Select Self-Hosted > GitHub.


  3. Configure the connection to your code repository, as follows:

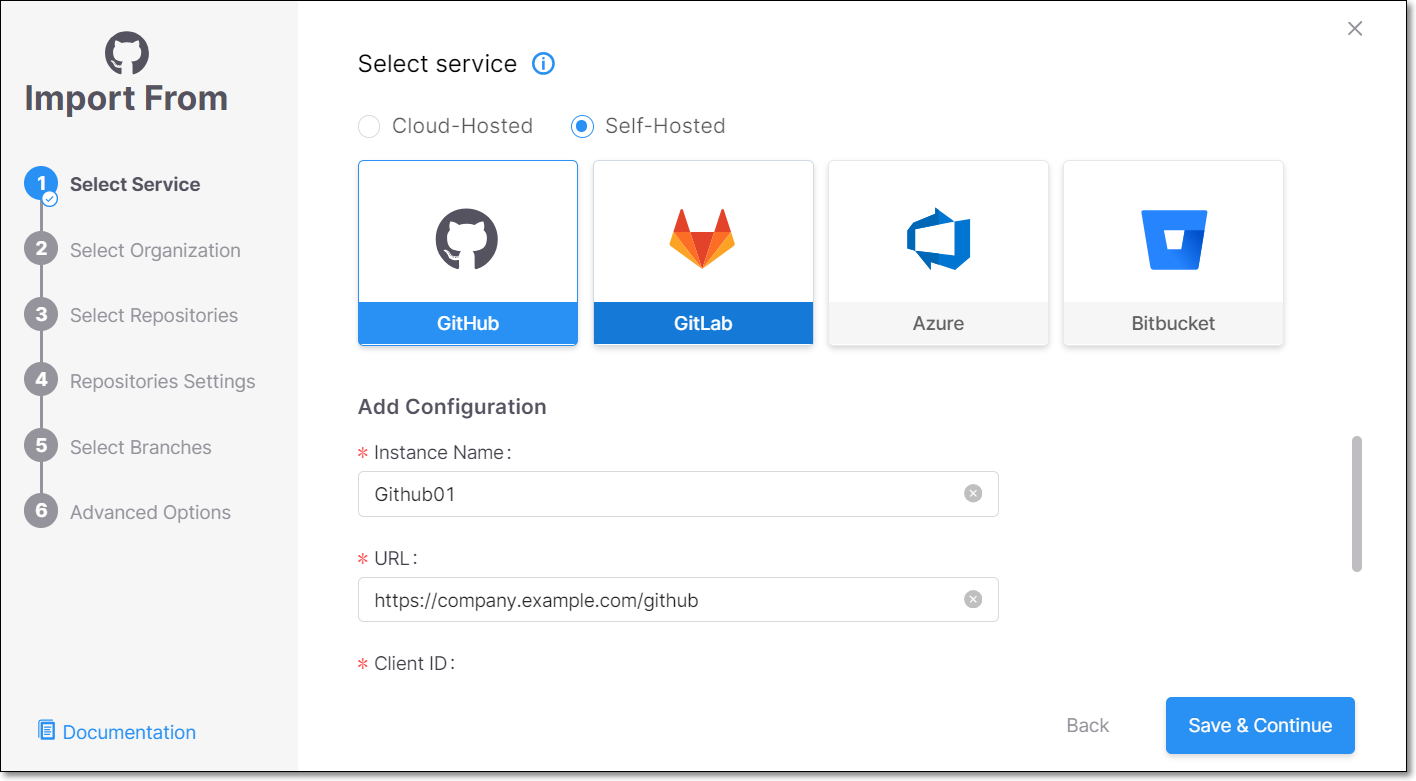

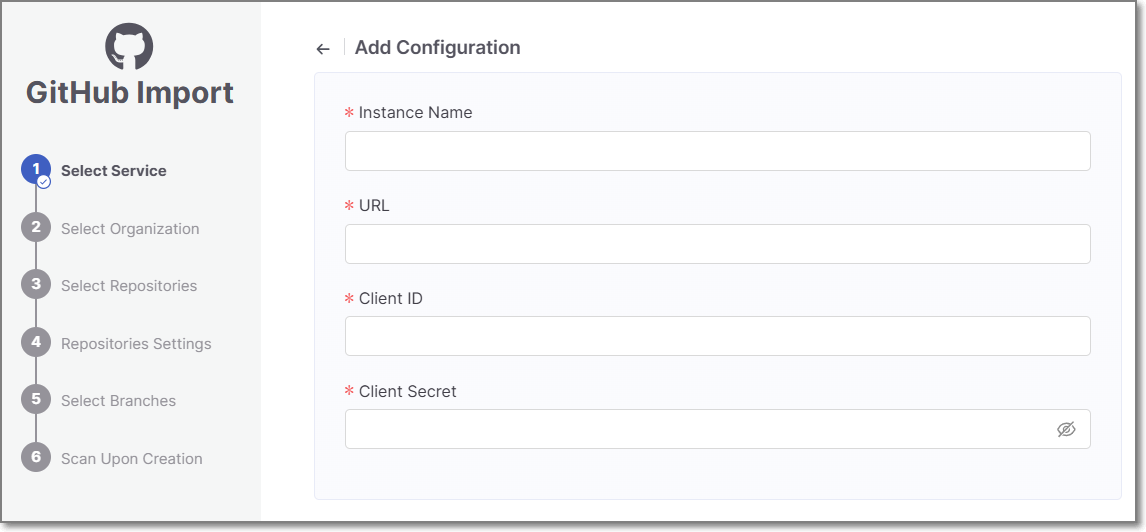

    • If you are setting up an import configuration for the first time, enter data for the following fields and then click Save & Continue:

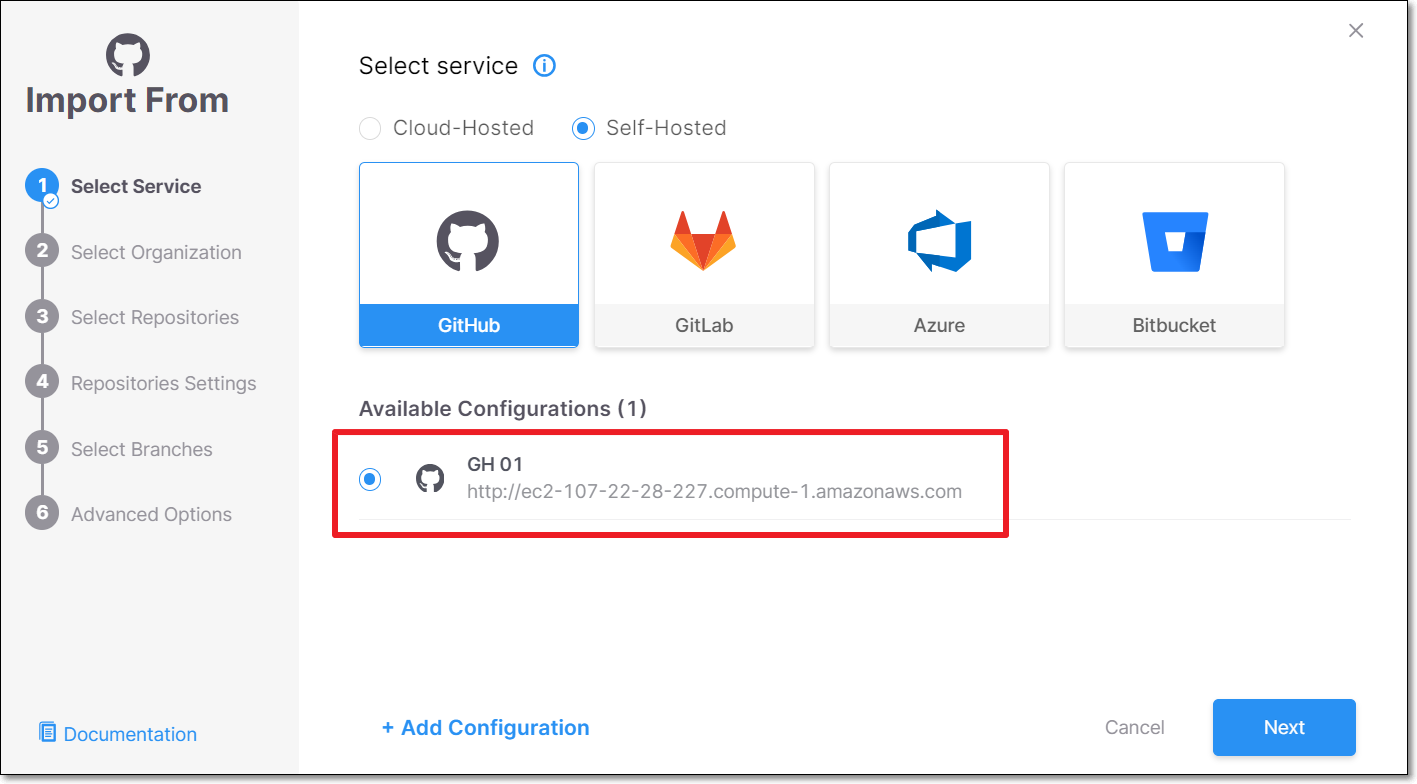

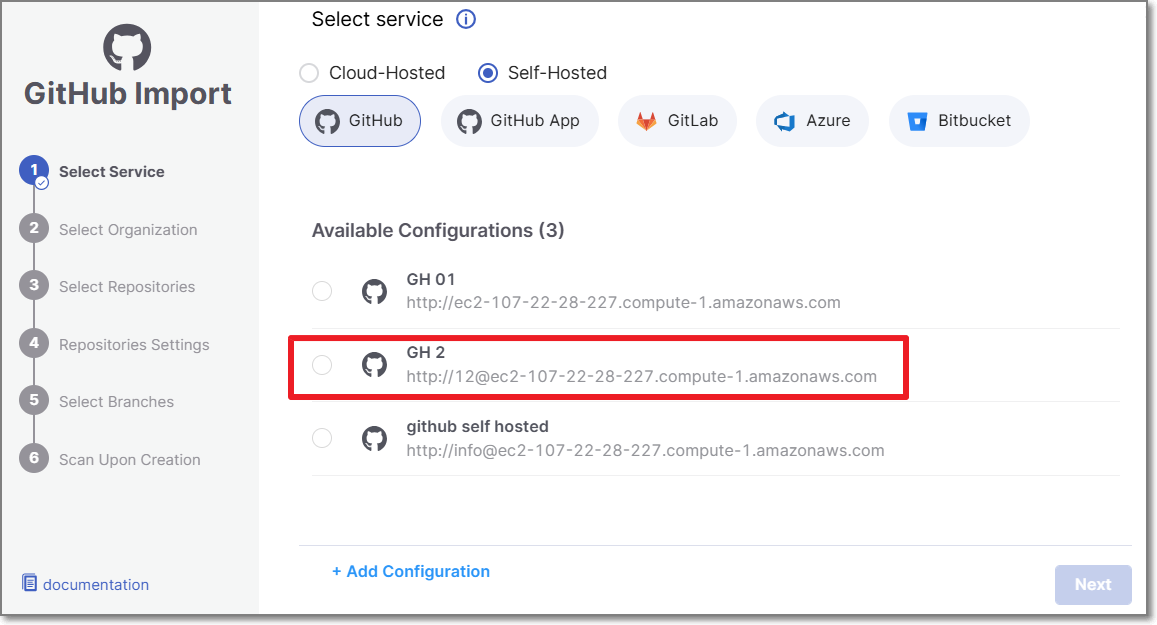

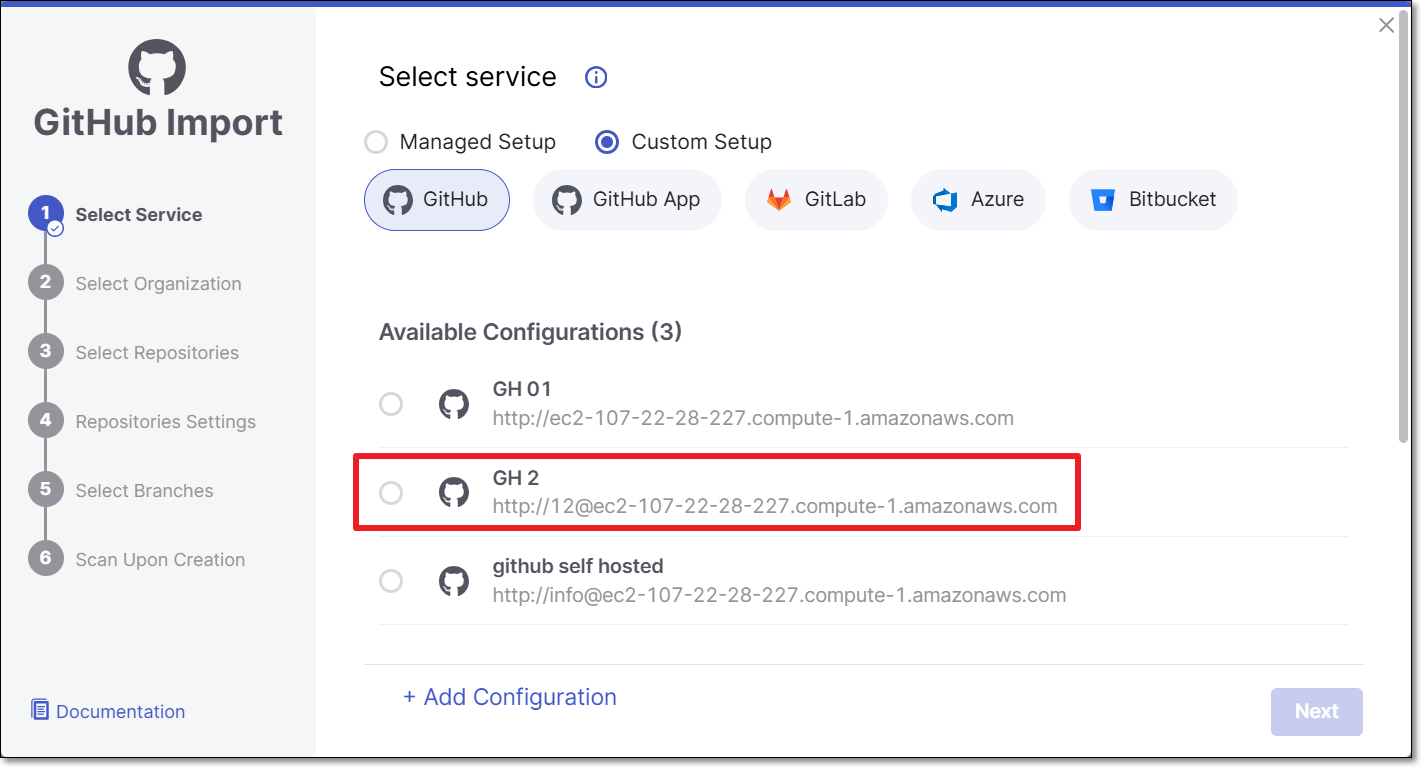

    • If you are importing Projects using an existing configuration, select the radio button next to the configuration that you would like ot use, and then click Save & Continue.

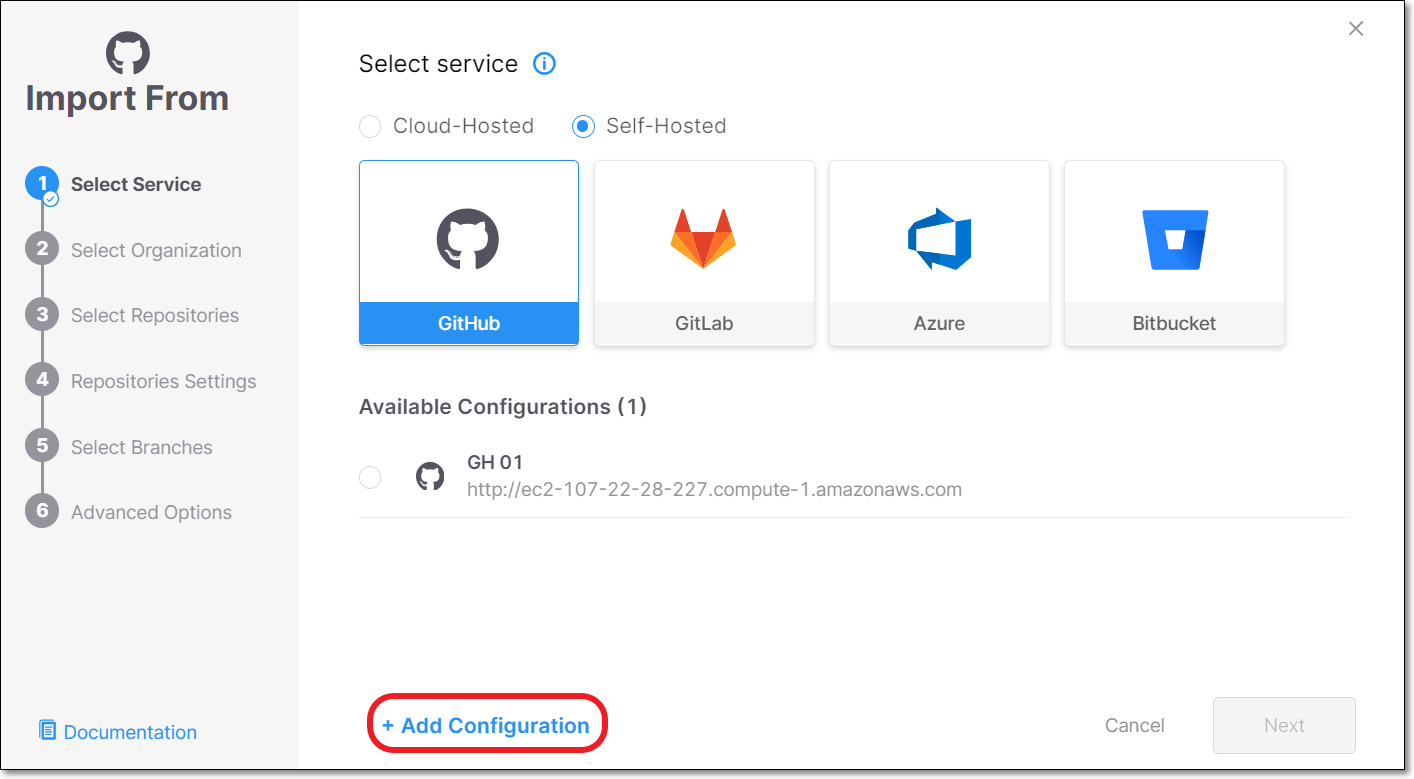

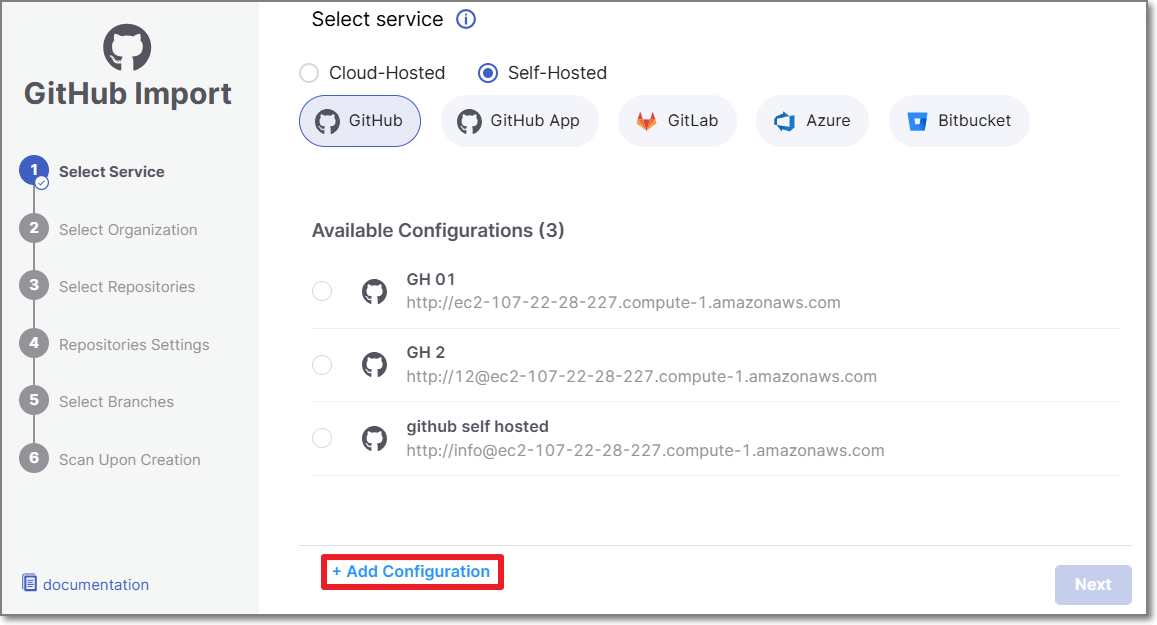

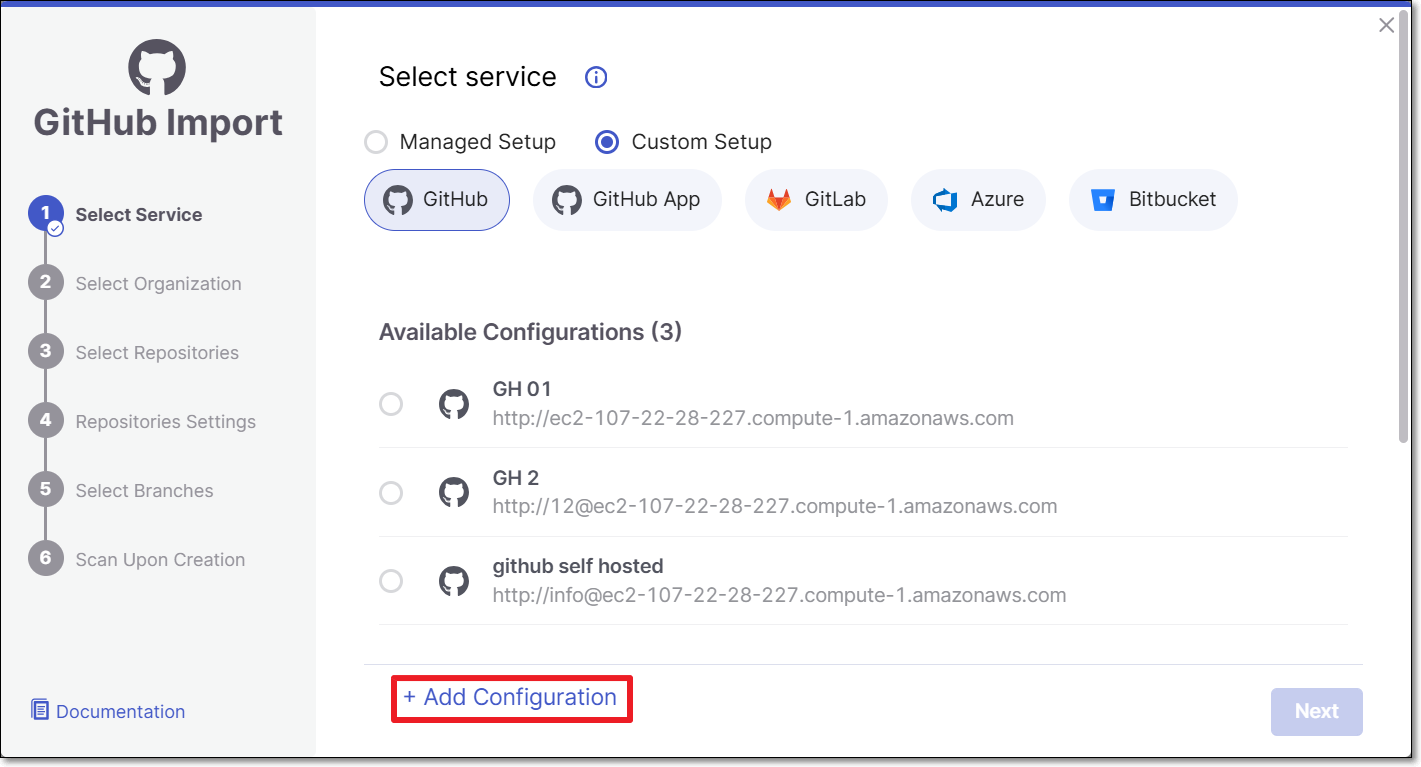

    • If you are adding a new configuration in addition to an existing configuration, click + Add Configuration, then fill in the data for this configuration as described above, and then click Next.


      Notice

      If you would like to edit an existing configuration (e.g., change the URL or credentials), go to Global Settings > Code Repository.

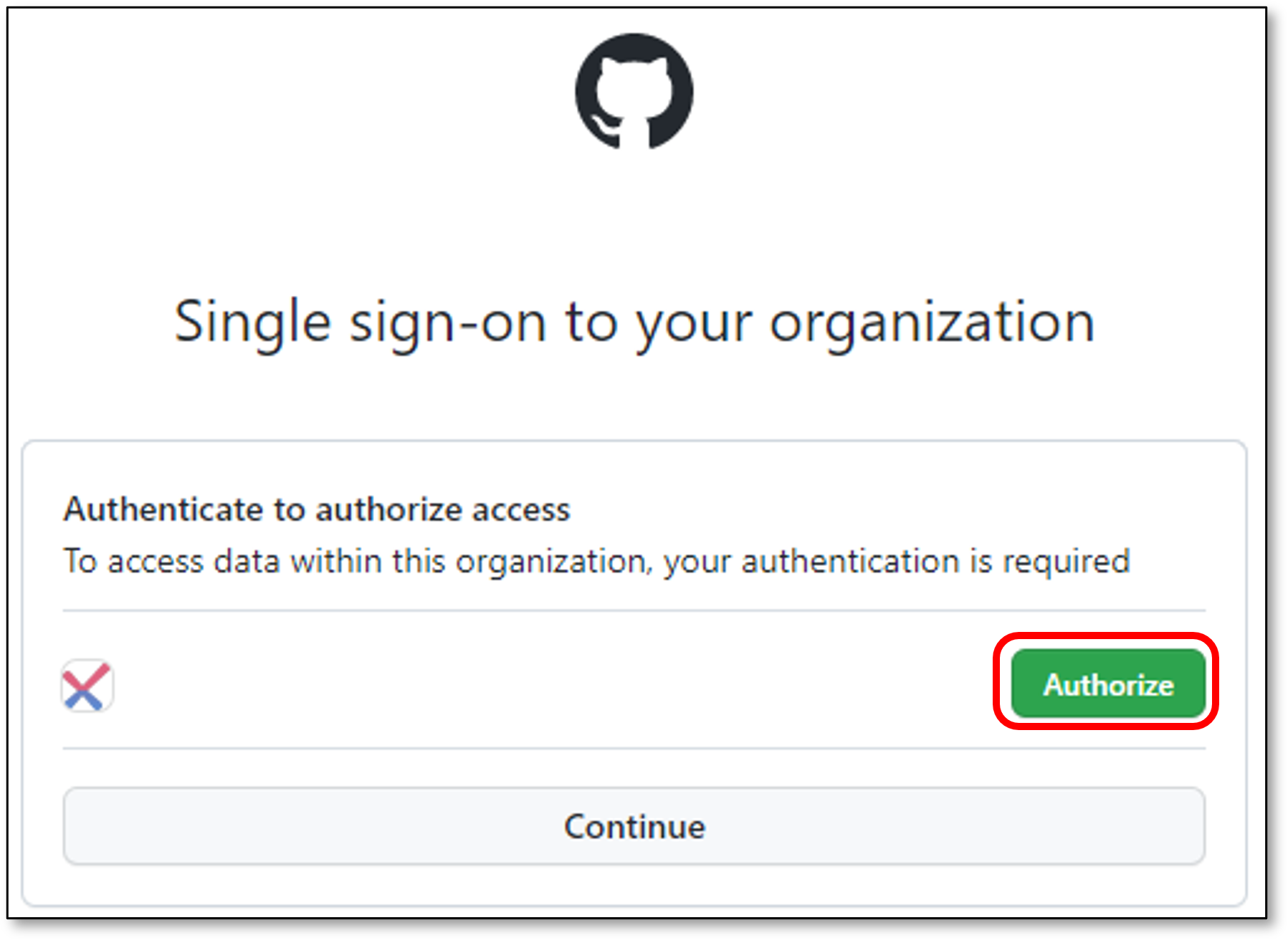

  4. Click Authorize.


  5. Select the GitHub User/Organization or Group (for the requested repository) and click Select Organization.

    The screen contains the following functionalities:

    • Search bar - Users need to type the full organization name (GitHub limitation). The search is not case sensitive.

    • Infinite scroll - For enterprises with a large amount of organizations.

    Note

    In case you selected GitHub User skip step 6.


  6. Select Repositories inside the GitHub organization and click Select Repositories.

    If the organization contains active repositories, suggested repos will be presented and selected automatically. For additional information see Suggested Repositories.

    Note

    • A separate Checkmarx One Project will be created for each repo that you import.

    • There can’t be more than one Checkmarx One Project per repo. Therefore, once a Project has been created for a repo, that repo is greyed out in the Import dialog.


  7. In the Repositories Settings step, you can optionally adjust the settings as follows:

    • If the project has multiple repositories, click All Repositories Settings to adjust the settings for all repositories, or select a specific repository, to adjust the settings for that repository.


    • Expand the Permissions Settings and adjust the following settings:

      • Scan Trigger: Push, Pull request - Automatically trigger a scan when a push event or pull request is done in your SCM. (Default: On)

      • Pull Request Decoration - Automatically send the scan results summary to the SCM. (Default: On)

      • SCA Auto Pull Request - Automatically send PRs to your SCM with recommended changes in the manifest file, in order to replace the vulnerable package versions. (Default: Off)

    • Expand the Scanner Settings and enable the toggle for each scanner you want to use (SAST, SCA, IaC Security, Container Security, API Security, OSSF Scorecard, Secret Detection) for your repositories. At least 1 scanner must be selected for each repository.

    • Protected Branches (when a specific repository is selected): Select which Protected Branches to scan for each repository.

      Note

      For additional information about Protected Branches see About Protected Branches

    • Add SSH key (when a specific repository is selected).

    • Assign Tags: Add Tags to the Project. Tags can be added as a simple strings or as key:value pairs.

    • Set Criticality Level: Manually set the project's criticality level.

  8. Click Next.

  9. Next, Select which Select Branches you want to scan for each Repository and click Create Project.

    Note

    For additional information about Protected Branches see About Protected Branches


  10. A Project is created for each repository and a scan is initiated for each project. The new projects are displayed on the Projects page,


    Note

    In order to update the scanners see Imported Project Settings

Technical Info About GitHub Webhooks

The webhook listening endpoints and APIs for GitHub self-hosted are similar to those used for GitHub cloud. Detailed info about webhooks for GitHub cloud is available here.GitHub Cloud

Editing Project Settings

To learn about editing Project Settings for an existing code repository integration Project, see Code Repository Project Settings.
