Application Risk Management

Overview

Checkmarx One offers a comprehensive Application Risk Management feature that enables you to understand and prioritize the risks associated with your applications. This centralized tool consolidates results from multiple sources in order to present a holisitic view of your appsec security posture and to help you to prioritize remediation tasks.

This tool shows vulnerabilities identified by the SAST and SCA scanners (including Malicious Packages Detection for licensed accounts), as well as results identified by our Correlation Engine (i.e., correlations between multiple scanners such as Exploitable Path identified by SAST and SCA or correlation between SAST and IaC Security). You can also import results from external platforms using the Bring Your Own Results (BYOR) feature. This tool also incorporates data from Cloud Insights (for licensed accounts) and adjusts the risk scores to reflect increased risk based on runtime usage and internet facing exposure. This enables team managers and appsec teams to proactively identify critical vulnerabilities early in the SDLC and prioritize them effectively.

The Application Risk Management tool assigns a Risk Score to each of the 50 most severe vulnerabilities identified in each application as well as an Overall Risk Score for the entire application.

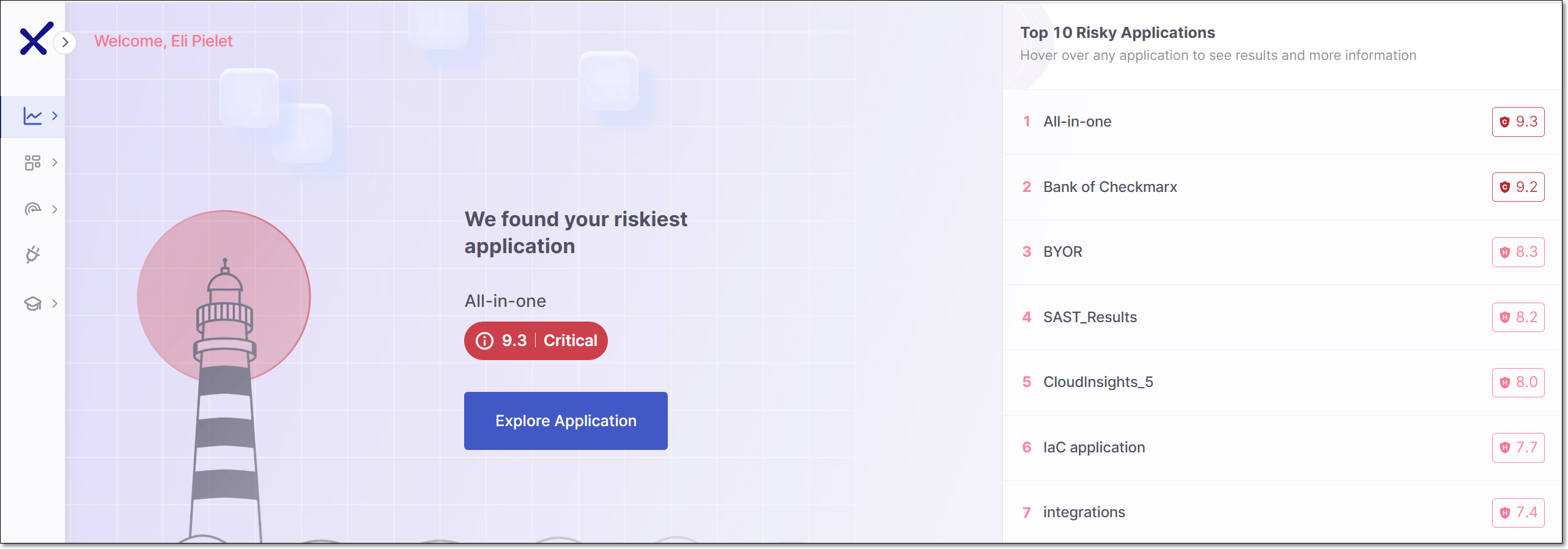

An overview of the Application Risk Management data for your entire account is shown on the Insights > Applicaiton Risk Management (HOME) page.

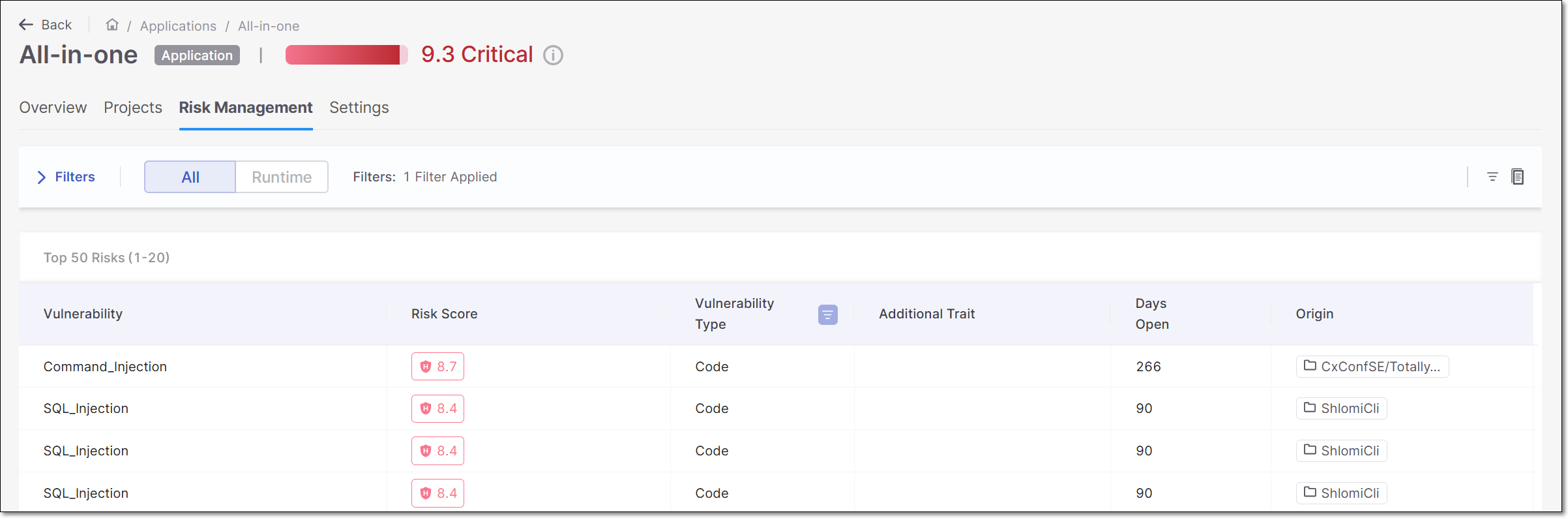

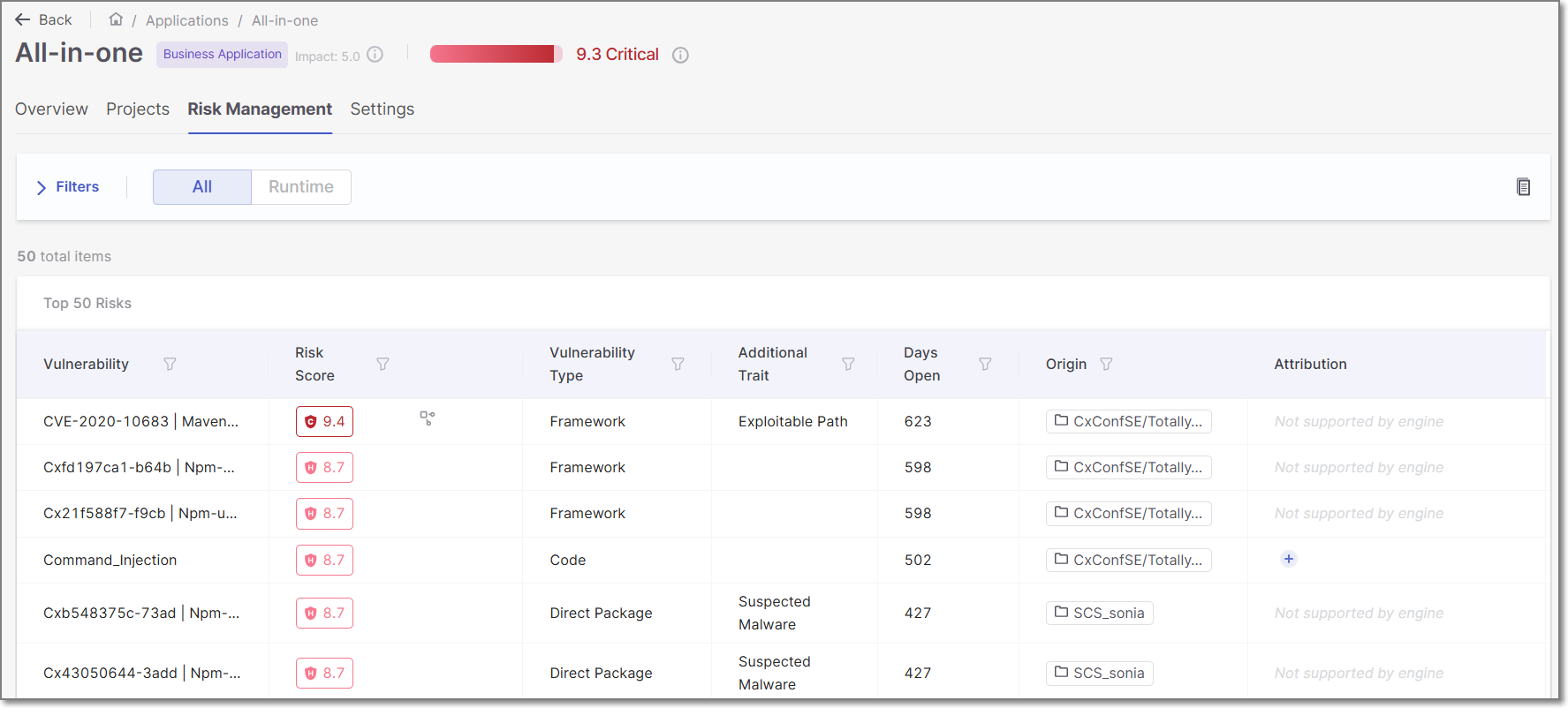

In addition, detailed Application Risk Management data for each application is shown in the Risk Management tab in the Workspace > Apllications page.

Risk Score Calculation

Risk Score for Individual Vulnerabilities

The Risk Score is determined by taking the Base Risk Score for each vulnerability and then factoring in additional risk factors, and (when necessary) applying the normalization formula.

Base Risk Score

The method used for determining the Base Risk Score differs according to the type of vulnerability.

SCA Vulnerabilities

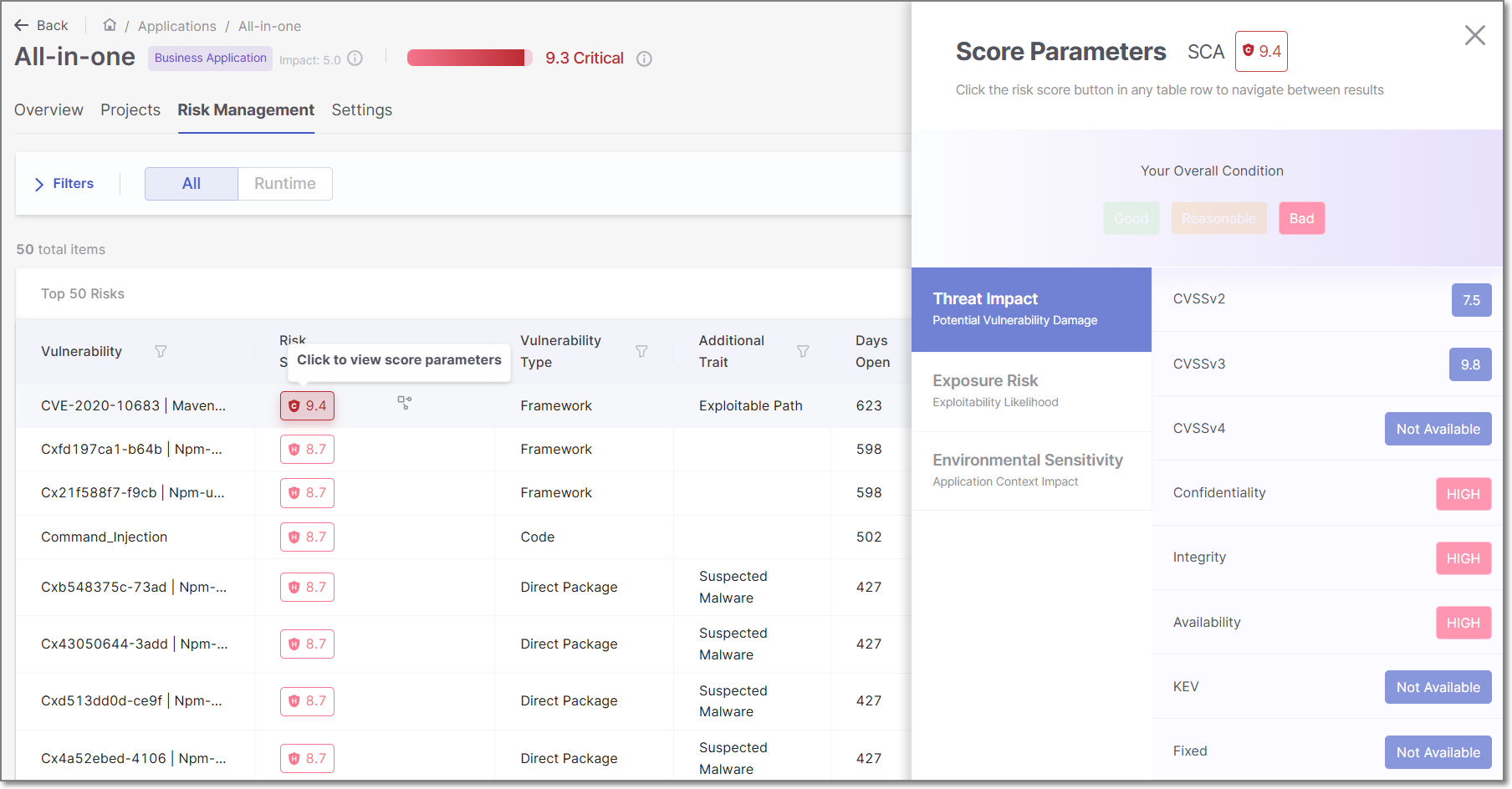

For vulnerabilities identified by the SCA scanner (i.e. Vulnerability Type: Direct Packages or Transitive Packages), the Base Risk Score is the NVD CVSS (Common Vulnerability Scoring System) v3.0 score for that vulnerability.

SAST Vulnerabilities

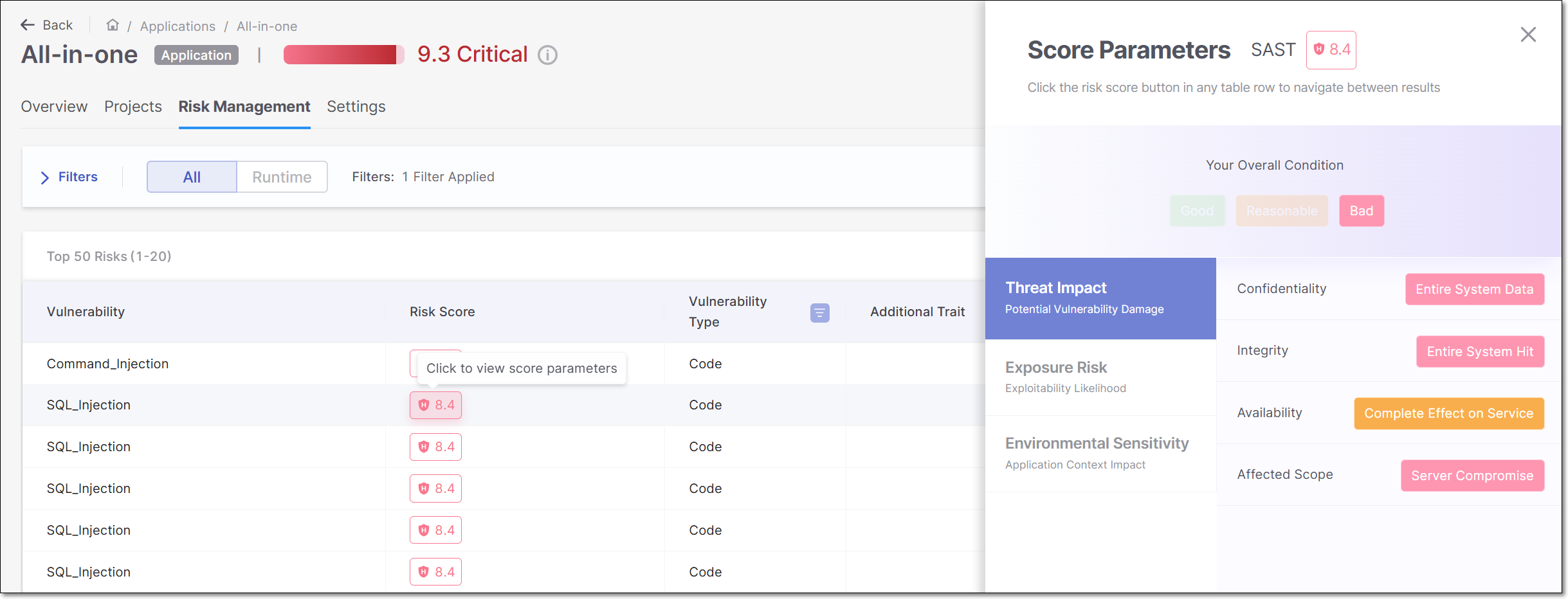

For vulnerabilities identified by the SAST scanner (i.e. Vulnerability Type, Infrastructure), our AppSec team uses their expertise to designate the risk score for each result. The team uses a proprietary algorithm that takes the following parameters into account:

Confidentiality
Integrity
Availability
Affected Scope
Required Privileges
Difficulty of Attack

Bring Your Own Results (BYOR)

For vulnerabilities imported into Checkmarx One via a SARIF file using the BYOR feature, the Base Risk Score is taken from the Severity level in the SARIF file. The severity is mapped to Risk Score as follows:

Critical --> 10.0
High --> 7.0
Medium --> 5.0
Low --> 3.0
None --> 1.0

Correlation Engine

This engine correlates results from multiple engines and assigns a risk score to the correlated results that reflects both the intrinsic severity of the risk as well as the increased risk based on the correlation. There are currently two types of correlated results.

SAST + SCA – The SAST engine is used to identify an Exploitable Path from your code to the vulnerable function in an open source package.
SAST + IaC Security – Correlated results from the SAST and IaC Security scanners.

Additional Risk Factors

When we identify additional risk factors based on the usage of the vulnerable code in the context of your application, we adjust the risk score accordingly. The following table shows how the risk score is adjusted for various sitauation.

Correlation	Identified By	Risk Score adjustment
Runtime usage	Cloud Insights	Base Risk Score + 0.5
Public (i.e., Internet Facing)	Cloud Insights	Base Risk Score + 1

Normalization

For accounts with Cloud Insights, in order to ensure that all risk scores fall within the range of 0.1 to 10.0 (even after adding points for additional risk factors), we apply a normalization formula.

((Base Risk Score + Public + Runtime)/ Max. Possible Score) x 10 = Normalized Risk Score

Base Risk Score: Original risk score before adding points for additional risk factors
Public: Additional 1 point for public (internet facing) risk
Runtime: Additional 0.5 points for runtime usage
Max. Possible Score: The maximum possible score for your account. (Currently, for accounts with Cloud Insights this value is 11.5.)
Normalized Risk Score: The actual Risk Score shown for the vulnerability in Application Risk Management

Example: SQL Injection has a Base Risk Score of 9. From Cloud Insights, we add: +1 because it is Public and 0.5 because it has Runtime usage. This results in a total risk score of 10.5. We normalize the score using the formula:

(( 9 + 1 + 0.5)/ 11.5) x 10 = 9.13

Overall Risk Score

This score represents the overall risk level of a particular application, providing a quick indication of the application's security posture. The Overall Risk Score is calculated as follows:

50% of the score is based on the application's Criticality level, as specified by the user during application creation (can be adjusted by editing the application Settings). This scale, ranging from 0 to 5, is converted to a scale of 0 to 10 by multiplying by 2.
The other 50% is determined based on the average Risk Score of the top 50 most severe risks in the application.

Risk Management Limitations

The following limitations are currently applied to the Application Risk Management functionality:

Results from SCS, Container Security, API Security and DAST scanners are not currently factored into Application Risk Management results. IaC Security results are not listed separately but they are taken into consideration by the correlation engine.
SCA Legal risks are not factored into Application Risk Management results.
If a user changes triages a result (i.e., changes the severity or state), regardless of whether it's SAST or SCA, they must initiate a new scan in order to update the data.

Risk Management Permissions

The tables below show the permissions required for viewing data and taking various actions in the Application Risk Management system.

Table 1. View

Permission	View homepage	View results table	View result details
view-applications
view-risk-management
view-projects
view-scans
view-results

Important

The API for viewing the home page action requires only the first two permissions: view-applications and view-risk-management.

Table 2. Update results

	Update result severity	Update result state	Update result state to not exploitable	Update result state to proposed not exploitable
view-applications
view-risk-management
view-projects
view-scans
view-results
update-results
update-result-severity
update-result-states
update-result-state-not-exploitable
update-result-state-propose-not-exploitable

Description of Actions

The following is an explanation of the actions referred to in the above tables.

View homepage: Access the Application Risk Management homepage, applicable to both the user interface (UI) and the API endpoint GET /summary.
View results table: Access the Application Risk Management results displayed in a table format, accessible from the homepage via links for remediation and viewing results. This action encompasses opening the results tab within the application and using the API endpoint GET /:applicationId/results.
View result detail: View detailed information about a specific result within the results table by clicking on the corresponding row.
Update result: Various actions related to updating results, each self-explanatory:
- Update result severity
- Update result state
- Update result state to "not exploitable"
- Update result state to "proposed not exploitable"

These actions are performed within the result view, accessible by clicking on any result in the table.

Risk Management APIs

Application Risk Management functionality is can be accessed via REST API. See documented here.
