Setting up and Configuring the CxSAST Bamboo Plugin

Before installing the CxSAST Bamboo plugin, the following prerequisites are required:

Software Component


Atlassian Bamboo



Checkmarx Bamboo Plugin supports remote agent configurations. For additional information and instructions, refer to Configuring Remote Agent Support.

To install and setup the Checkmarx Bamboo Plugin:

  1. Navigate to the Atlassian Marketplace.

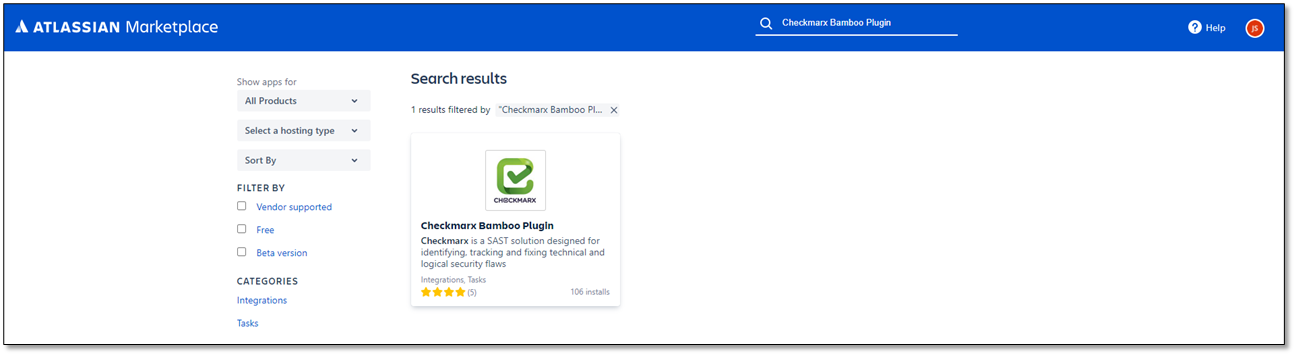

  2. Search 3021374097.png for the Checkmarx Bamboo Plugin. The Checkmarx Bamboo Plugin appears as search result.



    If the Checkmarx page is unavailable, please contact Technical Support for the available plugin.

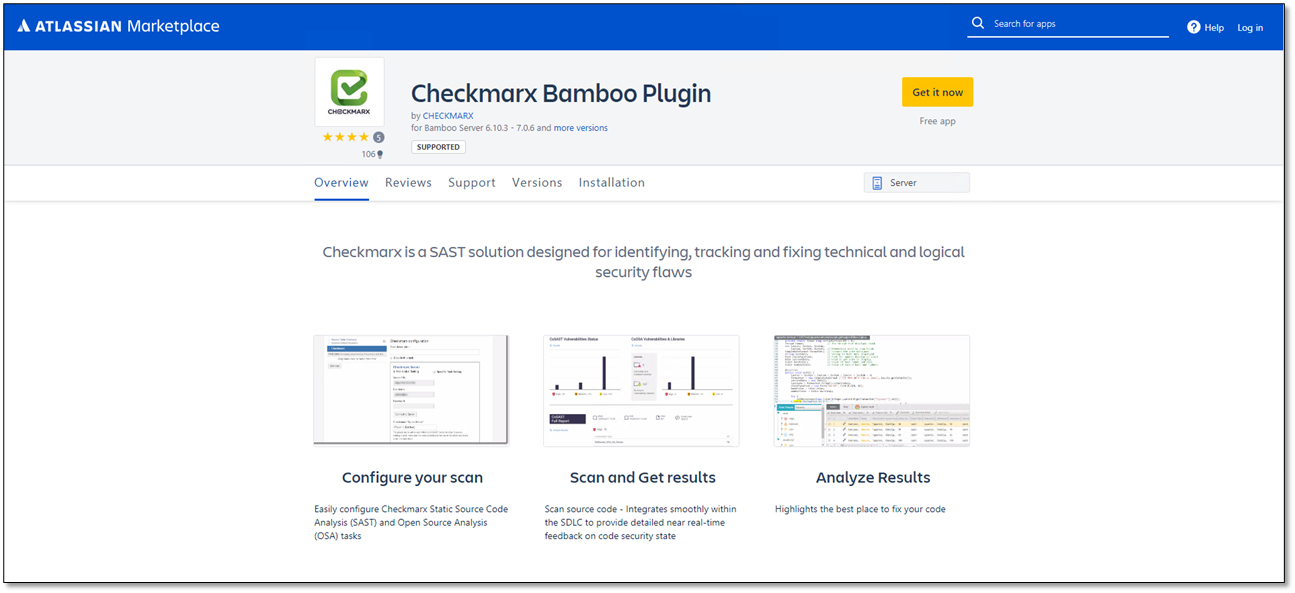

  3. Click Checkmarx Bamboo Plugin 3021374105.png. The Checkmarx Bamboo Plugin page appears.

  4. Click 3021374113.png to log in to the Atlassian Marketplace with your Atlassian account credentials as an Administrator. If your initials or avatar appear instead 3021374117.png, you are already logged in.

  5. Click 3021374121.png to download the installation file 3021374125.png checkmarx-bamboo-plugin-<version>.jar..

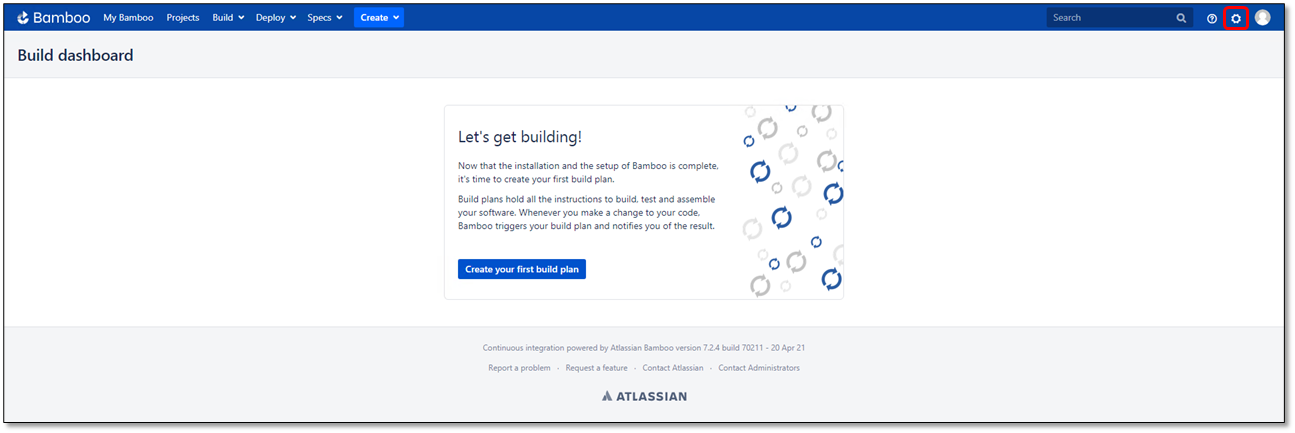

  6. Log into Atlassian Bamboo as an Administrator. To do so, enter the Base Bamboo URL in the address line of your browser. The Build Dashboard screen is displayed.

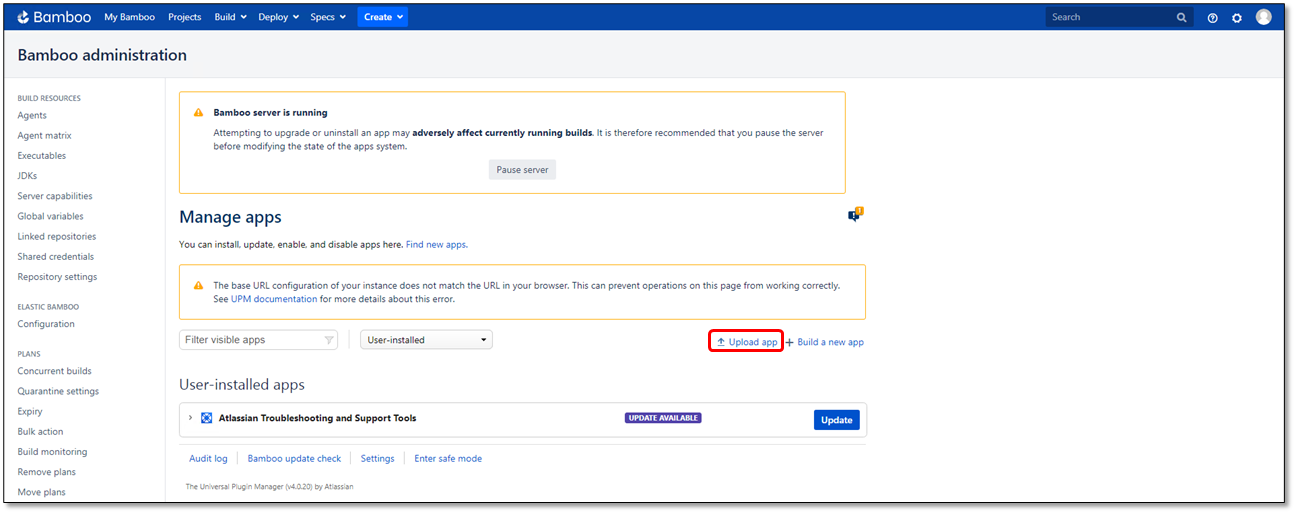

  7. Click 224985107.png and select Manage Apps. The Bamboo Administration window appears.

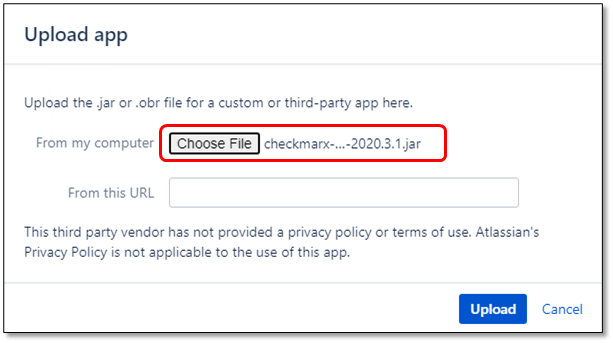

  8. Click 3021374137.png Upload app, navigate to the Checkmarx Bamboo Plugin ( 3021374125.png checkmarx-bamboo-plugin-<version>.jar) in your local directory and click <Upload>.


    A message appears to indicate that the plugin has been successfully installed.
