Checkmarx One JFrog Plugin

Overview

The Checkmarx One JFrog plugin analyzes each of the open source packages in your JFrog artifactory, comparing them against our Software Composition Analysis (SCA) vulnerability database in order to identify security risks and license requirements. The findings are added as "cx" properties to each artifact, enriching the metadata displayed in the Artifactory UI. This provides seamless risk visibility within your DevOps workflow, helping you to identify and address vulnerabilities early in the development process.

The plugin allows you to configure compliance thresholds, so that artifacts exceeding these thresholds are automatically marked as non-compliant. Depending on the configuration, such artifacts can be blocked from usage to prevent the use of insecure components.

Notice

Risks identified by this plugin are shown only in the artifactory itself, they are not synced with the Checkmarx One platform and corresponding projects are not created in your Checkmarx One account.


Analyzing Artifacts

There are 3 ways in which artifacts are analyzed, causing the "cx" properties to be populated:

  1. Manual scan - An administrator can manually trigger a scan of all artifacts in the system or of specific repositories. An initial manual scan should be run as part of the installation process.

  2. Adding repositories - When a user tries to add an artifact from a remote repository, if it doesn't yet have "cx" properties in JFrog, then it is automatically analyzed and the "cx" properties are populated.

  3. Continuous evaluation - The plugin has a scheduled cron job that runs in the background to update the "cx" properties of your artifacts based on the latest vulnerability data in the Checkmarx SCA database. By default, these evaluations run once an hour. You can adjust this by editing the properties file as described below.

Main Features

  • Validates the compliance of open source packages by analyzing licenses, identifying vulnerabilities, and detecting malicious components.

  • Evaluates artifacts against user-defined policies to ensure compliance with security standards related to malicious packages, vulnerabilities and licenses.

  • You can whitelist licenses approved by the organization. Any artifact with a license not included in this list will be flagged as violating the license compliance threshold.

  • Non-compliant artifacts can be blocked from use, with detailed feedback being provided to developers to facilitate efficient remediation of policy violations.

  • The plugin supports artifact scanning for specific user-defined repositories. One or more JFrog repository keys can be configured via the properties file to limit the scope of the scan.

  • The plugin includes a scheduled cron job that runs periodically in the background to coninuously evaluate risks related to your artifacts.

  • You can also periodically trigger manual scans of all artifacts within the configured repositories.

Prerequisites

  • Self-hosted JFrog Artifactory, version 7.90.14+

  • A Checkmarx One account

    To set up the integration you will need to provide the following account info:

    • Base URL of your Checkmarx One environment

    • Base Authentication URL of your Checkmarx One authentication server

    • Tenant name of your Checkmarx One tenant account

    • API Key - See Creating an API Key for Checkmarx One Integrations

Limitations

  • Properties are set on the main package artifact, not on sub-artifacts

  • Properties are applied to the artifact in the JFrog cache, not in the remote repository

Supported Package Managers

The plugin supports only projects that use the following package managers:

Bower, CocoaPods, Composer, Go, Gradle, Ivy, Maven, Npm, Nuget, Pypi, Sbt

Installing and Configuring the Plugin

To install and configure the plugin:

  1. Download the plugin using the above link.

  2. Extract the archive.

    The extracted folder contains a "plugins" folder with the following items:

    • checkmarxSecurityPlugin.groovy

    • cxsupplychainsecurity-plugin.properties

    • lib > artifactory-checkmarx-security-core.jar

    • lib > checkmarxSecurityPlugin.version

  3. Open the cxsupplychainsecurity-plugin.properties file.

  4. Configure access to your Checkmarx One account by entering your account info (see Prerequesites above) in the relevant properties as follows:

    • cxsca.api-key - API Key

    • cxsca.cxurl - Base URL

    • cxsca.base-auth-url - Base Authentication URL

    • cxsca.tenant - Tenant name

  5. The plugin is configured to run as-is, using default settings. You can edit the settings to adjust the following configurations, as described in Adjusting Property Configurations below:

    • Adjust thresholds for non-compliance (Default: Only malicious packages are non-compliant)

    • Block usage of non-compliant artifacts (Default: Not blocked)

    • Add or remove allowed licenses (Default: Allow only MIT,Apache 2.0,BSD 3,ISC,Zlib)

    • Specify repos for scanning (Default: All repos are scanned)

    • Adjust the analysis schedule (Default: every hour)

  6. Once the configuration is completed, save the changes to apply them.

  7. Copy the files from the plugin folder to your installed Artifactory directory at ${ARTIFACTORY_HOME}/var/etc/artifactory/plugins.

  8. If your JFrog instance is not configured to reload plugins automatically (this is the default configuration), then you will need to manually reload the plugins using the following command:

    curl -u username:password -X POST " https://<JFrogURL>/artifactory/api/plugins/execute/checkmarxSecurityReload

  9. To verify that the plugin has been installed succesfully, log in to your JFrog Artifactory instance and navigate to Administrator > Platform Monitoring > Artifactory Logs (i.e., https://<JFrogURL>/ui/admin/artifactory/advanced/system_logs).

    The logs should show:


  10. After completing the installation, run an initial analysis of your artifacts using the following command:

    Notice

    By default, all artifacts are scanned. If you configured specific repositories in the properties file, then only the specified repos are scanned.

    curl -u username:password -X POST "<JFrogURL>/artifactory/api/plugins/execute/scanArtifacts"

Adjusting Property Configurations

After installing the plugin, you can customize your plugin by adjusting the following properties in the cxsupplychainsecurity-plugin.properties file.

Whenever you change a property you must run the following command to update the configuration:

curl -u username:password -X POST "<JFrogURL>/artifactory/api/plugins/execute/checkmarxSecurityReload"

Warning

When you change the cxsca.update-period property, you need to restart the system in order for the change to take effect.

Compliance Thresholds

Property Name

Possible Values

Default

Description

cxsca.security.risk.critical.threshold

none, Integer >=0

none

The max. number of Critical vulnerabilities that will be considered compliant. "none" indicates that critical vulnerabilities will not cause the artifact be considered non-compliant.

cxsca.security.risk.high.threshold

none, Integer >=0

none

The max. number of High vulnerabilities that will be considered compliant. "none" indicates that High vulnerabilities will not cause the artifact be considered non-compliant.

cxsca.security.risk.medium.threshold

none, Integer >=0

none

The max. number of Medium vulnerabilities that will be considered compliant. "none" indicates that Medium vulnerabilities will not cause the artifact be considered non-compliant.

cxsca.security.risk.low.threshold

none, Integer >=0

none

The max. number of Low vulnerabilities that will be considered compliant. "none" indicates that Low vulnerabilities will not cause the artifact be considered non-compliant.

cxsca.security.allow-malicious

yes/no

no

no indicates that malicious packages are considered non-compliant

Block Usage

Property Name

Possible Values

Default

Description

cxsca.security.block-by-default

yes/no

no

yes indicates that non-compliant artifacts will be blocked from being used.

Allowed Licenses

Property Name

Possible Values

Default

Description

cxsca.security.allowed-licenses

[License names]

MIT,Apache 2.0,BSD 3,ISC,Zlib

A comma separated list of licenses that are allowed. All other licenses will be considered non-compliant.

Remote Repositories to be Analyzed

Property Name

Possible Values

Default

Description

cxsca.repositories

JFrog repository key

All repositories

If this property is defined, then only the specified repos are analyzed by Checkmarx. Enter a comma separated list of JFrog repository keys for the repos that will be analyzed.

Continuous Evaluation Frequency

Property Name

Possible Values

Default

Description

cxsca.update-period

1-168

1 hour

Specify the number of hours of the interval between evaluations.

Using the Plugin

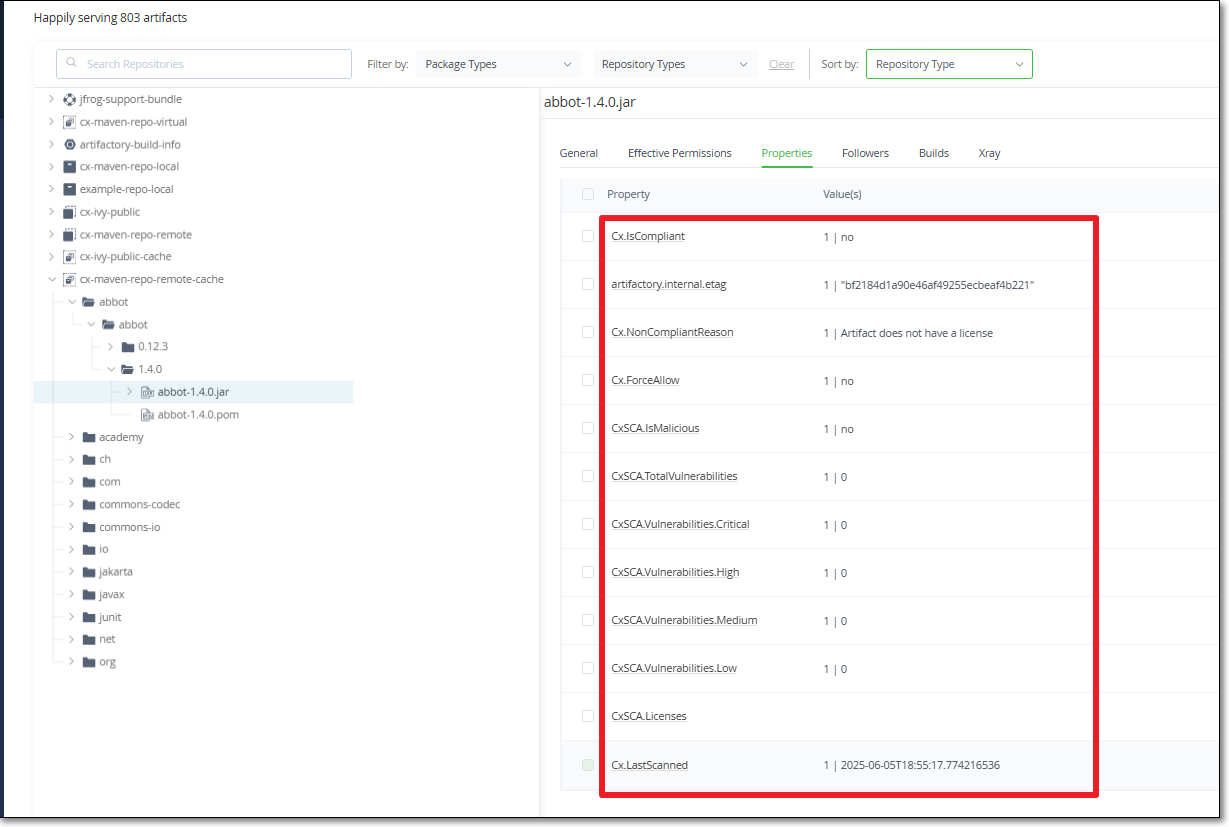

Once the plugin is installed and an initial scan has been run, the results are displayed for each scanned artifact as part of the artifact's properties. The data is automatically updated periodically by our continuous evaluation process.

Checkmarx Artifact Properties

For each artifact that has been analyzed by Checkmarx One, the following properties are added to the properties tab of the artifact.

Property Name

Possible Values

Description

CxSCA.TotalVulnerabilities

Integer >=0

The total number of vulnerabilities identified for the artifact

CxSCA.Vulnerabilities.Critical

Integer >=0

The total number of Critical vulnerabilities identified for the artifact

CxSCA.Vulnerabilities.High

Integer >=0

The total number of High vulnerabilities identified for the artifact

CxSCA.Vulnerabilities.Medium

Integer >=0

The total number of Medium vulnerabilities identified for the artifact

CxSCA.Vulnerabilities.Low

Integer >=0

The total number of Low vulnerabilities identified for the artifact

CxSCA.IsMalicious

yes/no

yes indicates that the package is malicious

CxSCA.Licenses

[string]

A list of licenses associated with the artifact

Cx.LastScanned

Date

The date and time that the artifact was last scanned

Cx.IsCompliant

yes/no

yes indicates the the artifact complies with the security and licensing thresholds that you have configured in the Checkmarx JFrog plugin.

no indicates that the artifact has security risks and/or disallowed licenses that make it non-compliant with the thresholds that you have configured in the Checkmarx JFrog plugin.

Cx.ForceAllow

yes/no

You can set this as yes if you would like to override non-compliance of the artifact and always allow usage of the artifact.

Cx.NonCompliantReason

[string]

For non-compliant artifacts, this shows a list of reasons why this artifact is categorized as non-compliant.

Exempting Artifacts from Compliance

If you have set thresholds for blocking usage, you can override these thresholds for specific artifacts.

Warning

Once you have exempted an artifact, users will be able to download this artifact despite its containing risks of any severity level.

To override the threshold:

  1. Open the properties tab for the desired artifact.

  2. Set the property Cx.ForceAllow to yes.

Running Scans Manually

In addition to the analysis that is done in the background according to the plugin configuration, you can also trigger a manual scan from time to time using the following command:

curl -u username:password -X POST "$ARTIFACTORY_HOME/artifactory/api/plugins/execute/scanArtifacts"

Getting Info About Blocked Artifacts

If a developer tries using an artifact that is blocked from usage due to non-compliance with the plugin thresholds, they will receive an HTTP 403 error. If the developer would like to understand the reason for the blocked usage, they can follow the artifact link displayed in the build console output. They can then view the content of the json response. They can also check the artifact properties to see the value for Cx.NonCompliantReason.

Event Logs

By default, the INFO level event logs from the plugin are written to the artifactory logs. You can access those logs using following URL:

https://<JFrogURL>/ui/admin/artifactory/advanced/system_logs

The following are some common examples of event logs:

  • Manual Scan Logs

    • Starting scan of artifacts

    • Success Log: “Scanning completed for artifacts of all repositories. Total artifacts: {}, Successfully processed: {}, Processing failed: {}.”;

  • Background Scan Logs

    • Number of packages to re-scan :{}

    • Success Log: “Correlation-Statistics: Total artifacts successfully processed: {}, total artifacts failed: {}";

  • Processing Chunk

    • Success Log: “Chunk {} statistics: Successfully processed: {}, Failed: {}“

  • Each Repository

    • Processing repository: {}

    • Success Log: Processed: {}, Successful: {}, Failed: {} artifacts in repository: {}

  • Specific repository configuration not found in artifactory

    • Repo config not found for key: {}, repoPath={}

Setup CX Plugin Logs to log By default, the log level is set as INFO. To enable plugin logs, insert the following snippet in: $ {ARTIFACTORY_HOME}/var/etc/artifactory/logback.xml: &lt;logger name="io.checkmarx" level="debug"/&gt; &lt;logger name="com.checkmarx.plugin" level="debug"/&gt;

Troubleshooting

For troubleshooting purposes, you can change the log level to DEBUG, so that all debug logs are sent to the JFrog logs.

  1. insert the following snippet in $ ${ARTIFACTORY_HOME}/var/etc/artifactory/logback.xml:


<logger name="io.checkmarx" level="debug"/>
<logger name="com.checkmarx.plugin" level="debug"/>

  2. View the generated logs in the artifactory-service.log file in the $ {ARTIFACTORY_HOME}/var/log folder, or access them using the system logs URL:

    https://<JFrogURL>/ui/admin/artifactory/advanced/system_logs
