SAST Local Services Status Monitor

This monitor provides an easy and efficient way for customers to monitor SAST services running on each machine in their enterprise. In addition, it enables cloud ops to monitor SAST services automatically.

Support for Windows

The Services Availability service, installed as part of SAST services on clean or upgraded installations, appears as CxServicesAvailability in Windows services. The service is constantly running on the machine and monitoring SAST services to detect issues and check if they are up and running.

It displays the monitored data as a JSON object inside http://localhost:8078/ and redirects it to http://localhost:8078/ServiceAvailability.

The following items were added to the Services Availability page:

License Expiration - The status is "Valid" if the expiration date taken from the license is still valid. If it is outdated, it is "Expired". If it was not found, it is "not_found".
License HID Validation - The status is "Valid" if the HID taken from the license is the same as the current HID. If it is different, it is "Invalid". If it was not found, it is "not_found"

Both items appear under a new category called "others," as shown below:

     "others": [
         {
             "name": "LicenseExpiration",
             "status": "Valid"
         },
         {
             "name": "LicenseHIDValidation",
             "status": "Valid"
         }
      ]
}

Configuration File Keys

The configuration file is as follows: C:\Program Files\Checkmarx\Checkmarx Services Availability\ServiceAvailability.conf

The default configuration is:

{
    "general": {
        "port": "8078",
        "resultCacheTimeoutInSeconds": 30,  // result cache timeout, separate for each client ip
        "allowRemoteAccess": true,  // if false - access is only allowed from localhost
        "allowRemoteAccessErrorMessages": false   // if false - don't show detailed error messages from other machine which is not localhost
    }
}

Services Monitoring Parameters

Table 1. Services Monitoring

Service Name	LocalServices/ Connections	Service Name in JSON	Type	Environment Variables	CxComponentConfiguration Table	Monitored	Monitored by
AccessControl	connection	AccessControl_Env_Var	Web page	CX_ES_ACCESS_CONTROL_URL		Access Control	Get request to the extracted address
	local service	AccessControl_Rest_Call	Web page			Access Control	Get request to Access Control page http://localhost/CxR
	connection	AccessControl_SAST	Web page		IdentityAuthority	Access Control	Get request to the extracted address
ActiveMQ	connection	ActiveMQ_Env_Var	Queue	ActiveMessageQueueURL		ActiveMQ	Open TCP connection to extracted value
ActiveMQ	connection	ActiveMQ_SAST	Queue		ActiveMessageQueueURL	ActiveMQ	Open TCP connection to extracted value
Database	connection	Database	DB			CxDB	Open DB connection to CxDB
WebServer (portal)	connection	WebServer_Portal	Web page			CxWebClient	Get request to Checkmarx portal http://localhost/cxwebclient/ProjectState.aspx
WebService	local service	WebService	SOAP			CxWebService	Get request to IsAlive in SAST REST API
WebAPI	local service	WebAPI	REST			CxRestApi	Post request to IsAlive in SAST SOAP API
ScansManager	local service	ScansManager	OS Service			CxScansManager	Ping the OS services check if result "running"
JobsManager	local service	JobsManager	OS Service			CxJobsManager	Ping the OS services check if result "running"
SystemManager	local service	SystemManager	OS Service			CxSystemManager	Ping the OS services check if result "running"
ResultsService	local service	ResultsService	OS Service			CxSastResults	Ping the OS services check if result "running"
EngineService	local service	EngineService	OS Service			CxEngineService	Ping the OS services check if result "running"
IISService	local service	IISService	OS Service			IIS Admin Service	Ping the OS services check if result "running"

ActiveMQ

ActiveMQ_Env_Var - The program will extract the ActiveMessageQueueURL from environment variables and will open a connection to ActiveMQ.
ActiveMQ_SAST - The program will extract the ActiveMessageQueueURL from the CxComponentConfiguration and will open a connection to ActiveMQ.

Web Pages

WebServer_Portal - A get request will be made to localhost/cxwebclient/ProjectState.aspx.
AccessControl_Rest_Call - A get request will be made to localhost/CxRestAPI/auth/#/.
AccessControl_Env_Var - The program will extract the CX_ES_ACCESS_CONTROL_URL from environment variables and send a get request to the extracted address.
AccessControl_SAST - The program will extract the IdentityAuthority from the CxComponentConfiguration and send a get request to the extracted address.

Support for Linux

The following SAST components are monitored in Linux:

Engine Service
ActiveMQ
Access Control

Notice

Service Availability does not run in SSL.

Display

The JSON object will have a local-services and a connection object as described in the table above.

The following fields are displayed for each service:

name - the name of the service
status - online/offline/not_found/not_installed
error_message - only if the status has a “not_found” value, then the error_message field will be displayed.

The JSON object will display the name and status fields for each service.

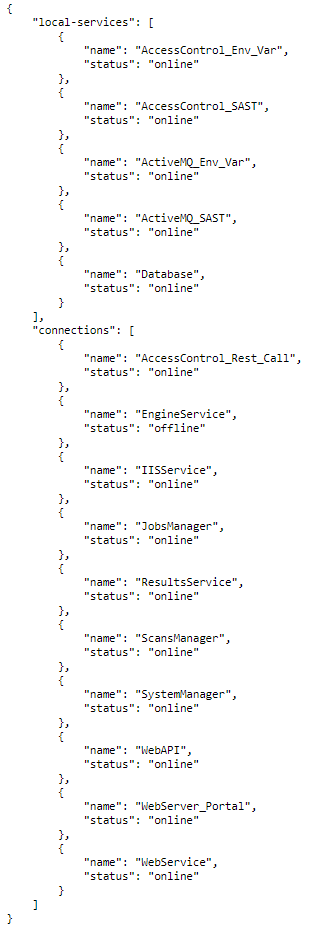

The following is an example of the JSON object:
