Installing and Setting up the Checkmarx VS Code Extension

Installing the Extension

Warning

The Checkmarx VS Code extension includes the Checkmarx One Assist feature as part of the Checkmarx One platform experience and should be used by Checkmarx One customers with a Checkmarx One Assist license. The Checkmarx and Checkmarx Developer Assist VS Code extensions are mutually exclusive. To use the Checkmarx extension, ensure that the Checkmarx Developer Assist extension is uninstalled before installation. If you are not a Checkmarx One customer and are trying to install the Checkmarx Developer Assist VS Code extension, see Initial Setup and Configuration.

The Visual Studio Code Extension is available on the Visual Studio Code marketplace. You can initiate the installation directly from the Visual Studio Code console.

To install the extension:

  1. Open Visual Studio Code.

  2. In the main menu, click on the Extensions icon.

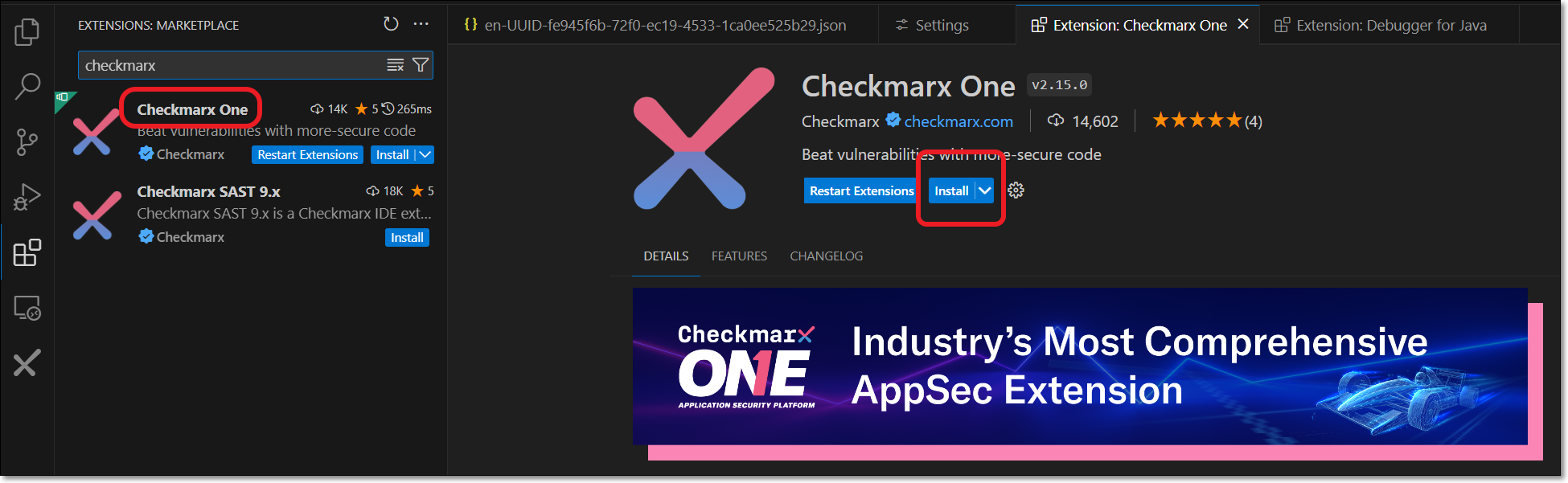

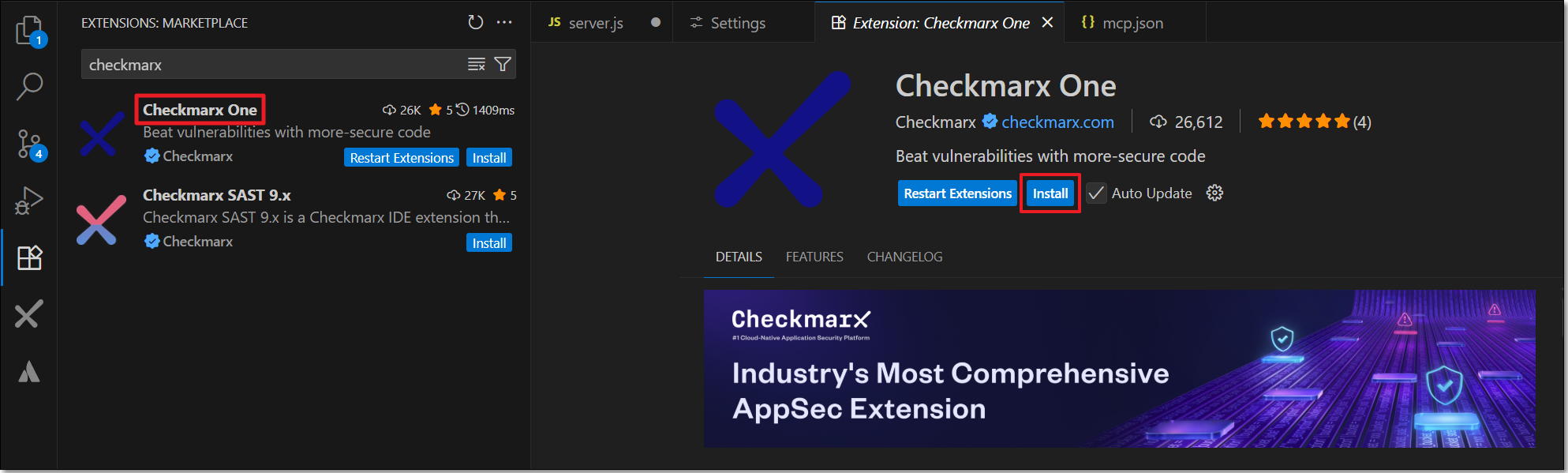

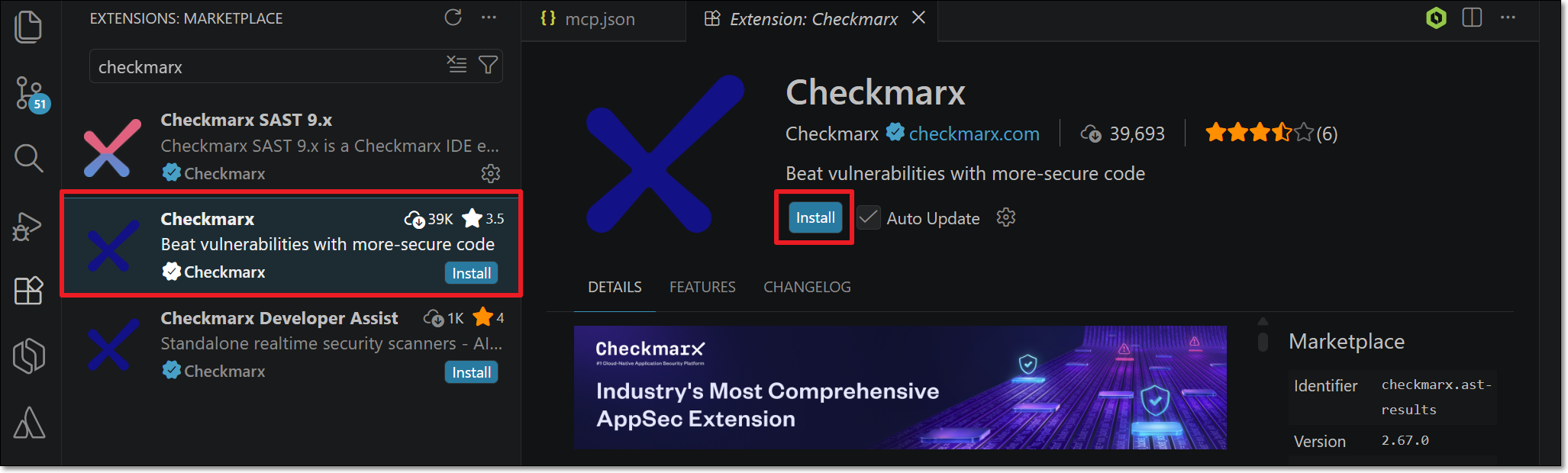

  3. Search for the Checkmarx extension, then click Install for that extension.


    Notice

    Auto Update is enabled by default, so the latest version is installed automatically when available. To prevent automatic updates, clear the Auto Update checkbox. When auto update is disabled, the currently installed version remains unchanged until updates are re-enabled.

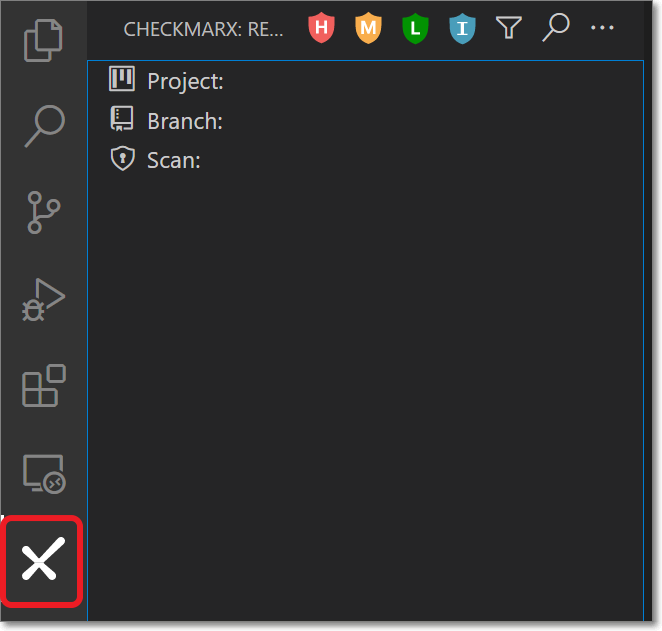

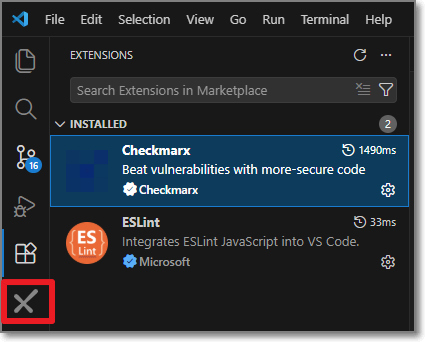

    The Checkmarx extension is installed and the Checkmarx icon appears in the left-side navigation panel.


Setting up the Extension

After installing the plugin, in order to use the Checkmarx One tool you need to configure access to your Checkmarx One account, as described below.

Notice

If you are only using the free KICS Auto Scanning tool and/or the SCA Realtime Scanning tool, then this setup procedure is not relevant. However, for SCA Realtime Scanning tool, if your environment doesn't have access to the internet, then you will need to configure a proxy server in the Settings, under Checkmarx One: Additional Params.

  1. In the VS Code console, click on the Checkmarx extension icon.

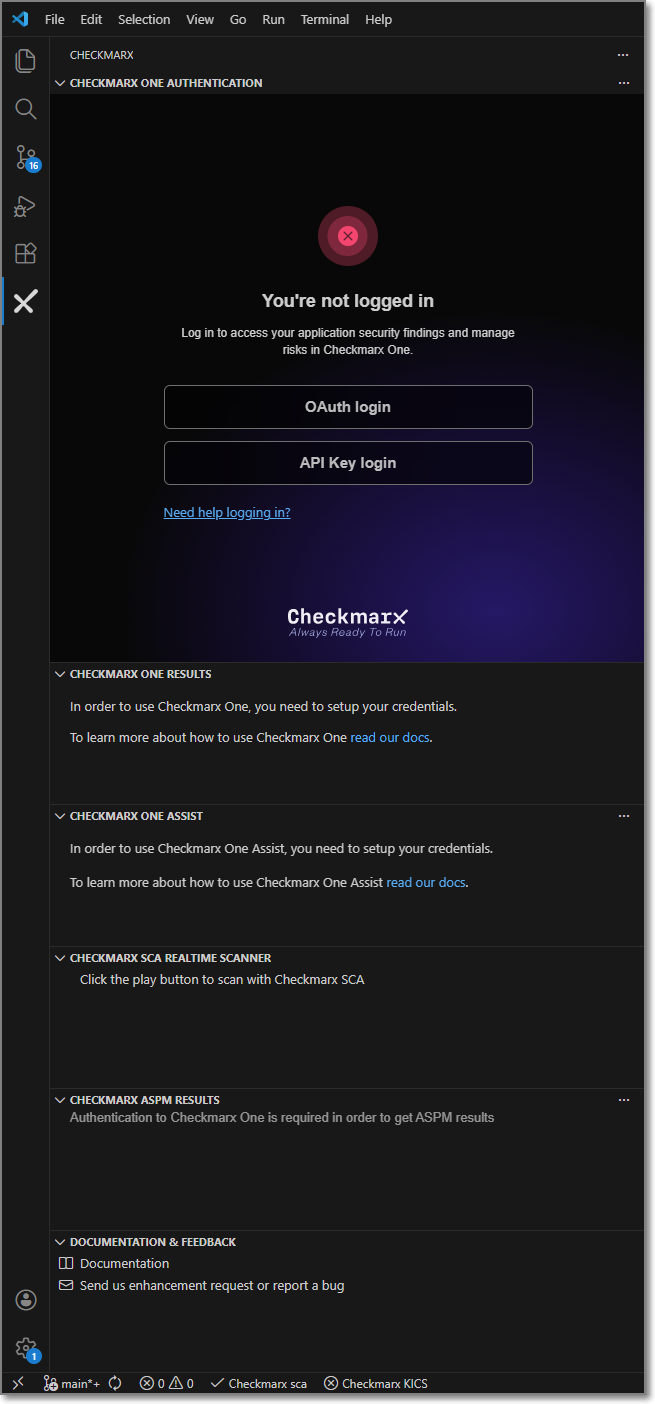

    The Checkmarx One Authentication sidebar opens:


  2. In the Checkmarx One Authentication sidebar, connect to Checkmarx One either using an API Key or login credentials.

    Important

    In order to use this integration for running an end-to-end flow of scanning a project and viewing results with the minimum required permissions, the API Key or user account should have the role plugin-scanner. Alternatively, they can have at a minimum the out-of-the-box composite role ast-scanner as well as the IAM role default-roles.

    • Login Credentials

      1. Select the OAuth login button.

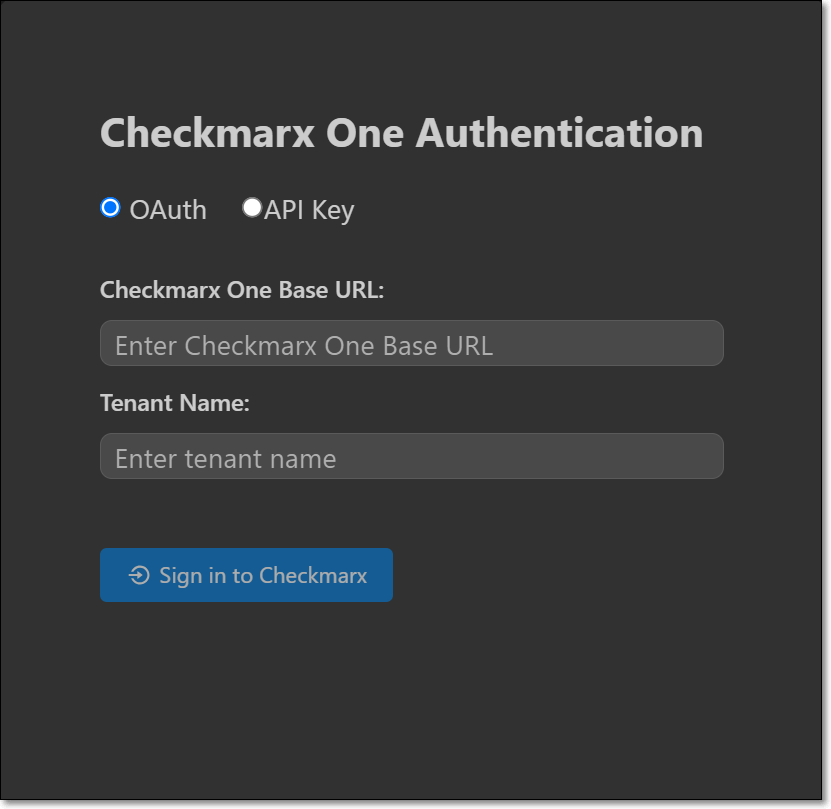

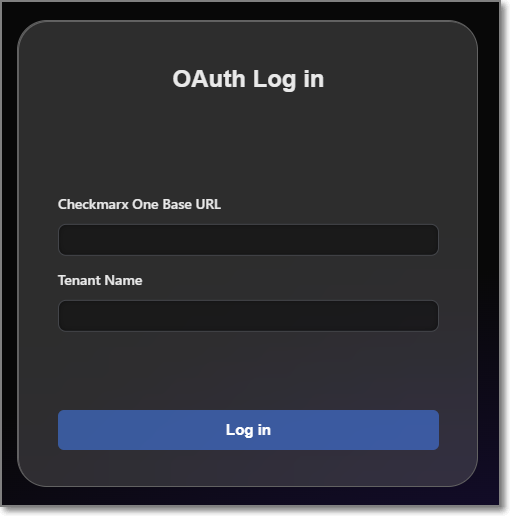

        The OAuth Log in window opens.


      2. Enter the Base URL of your Checkmarx One environment and the name of your tenant account, then click Log in.

        Notice

        Once you have submitted a base URL and tenant name, it is saved in cache and can be selected for future use (saves up to 10 accounts).

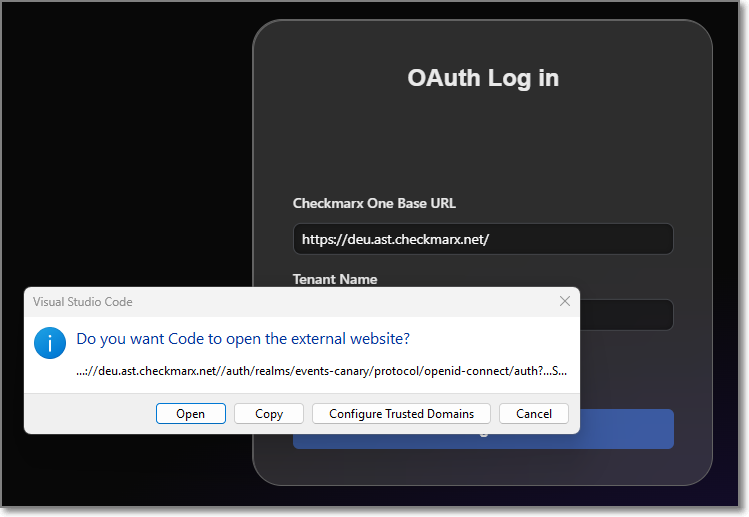

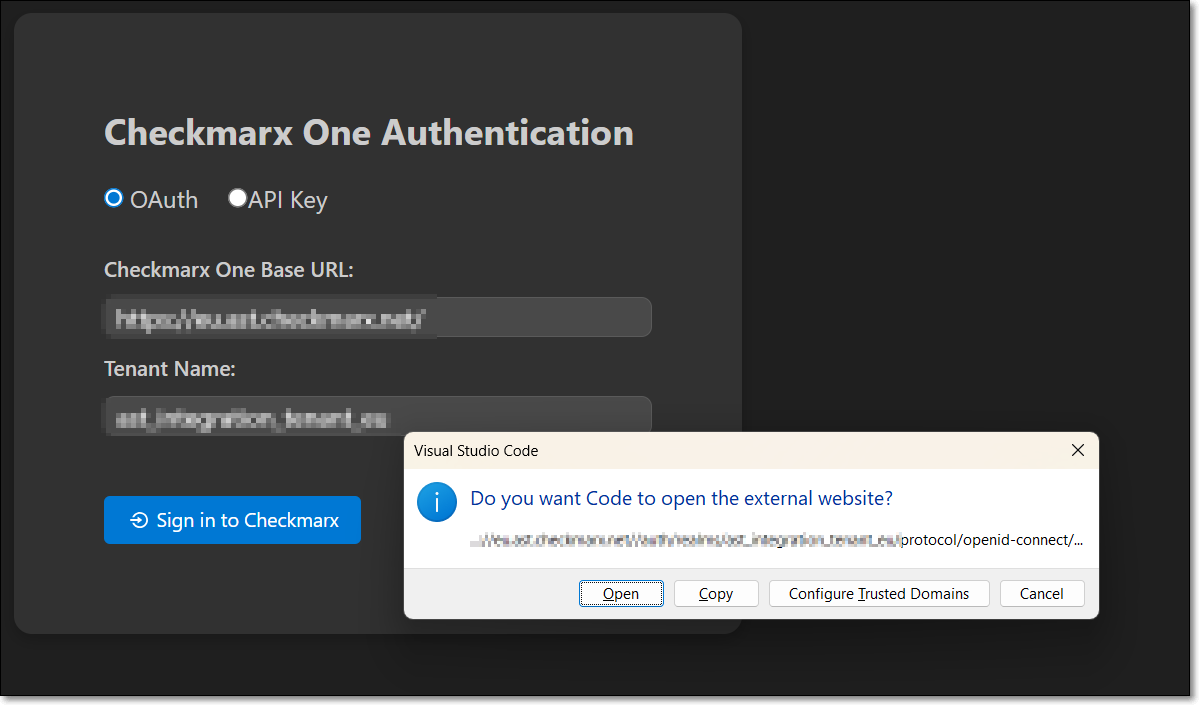

        A confirmation dialog asks for permission to open an external website.


      3. Click on Open to proceed.

        Notice

        If you would like to prevent this dialog from opening in the future, click on Configure Trusted Domains and then in the Command Pallete click on Trust....

      4. If you are logged in to your account, the system connects automatically. If you are not logged in, your account's login page opens in your browser. Enter your Username and Password and then your One-Time Password (2FA) to log in.

    • API Key (see Generating an API Key)

      1. Select the API Key login button.

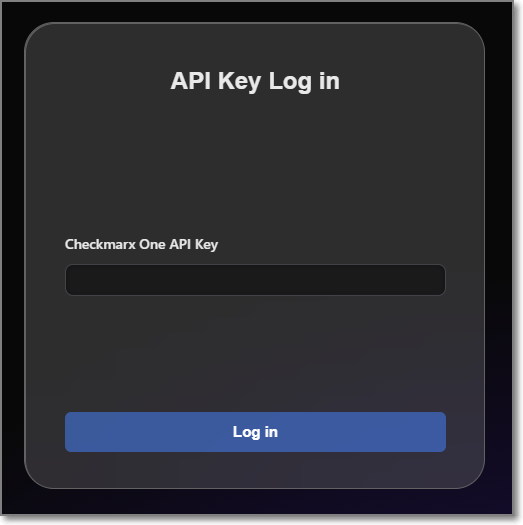

        The API Key Log in window opens.


      2. Enter your Checkmarx One API Key and click Log in.

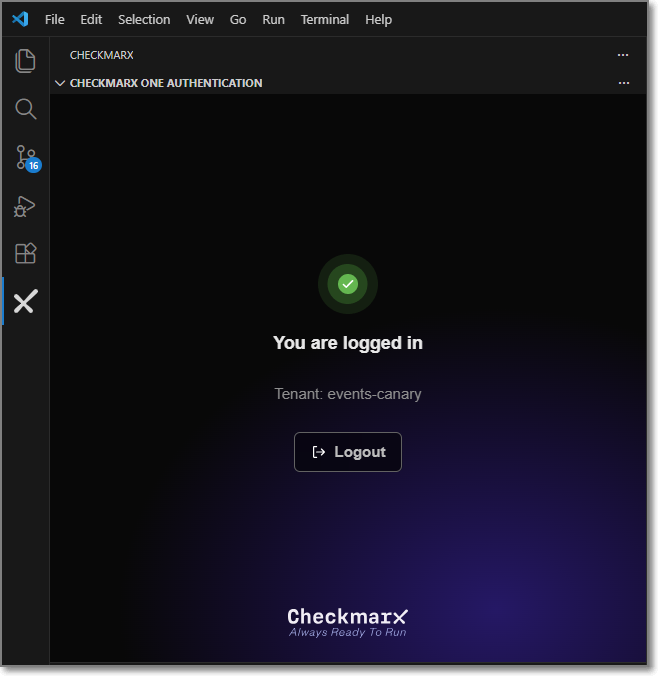

  3. The Checkmarx One Authentication sidebar will now show that you are logged in.

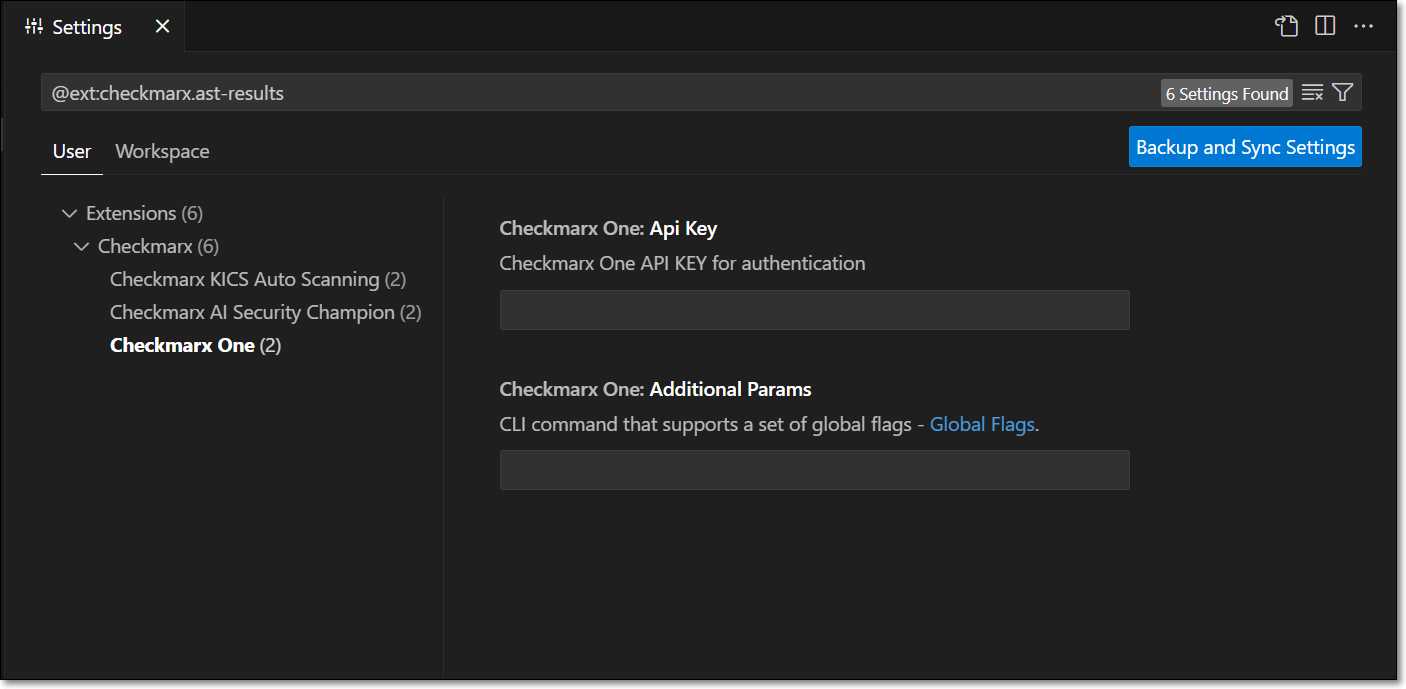

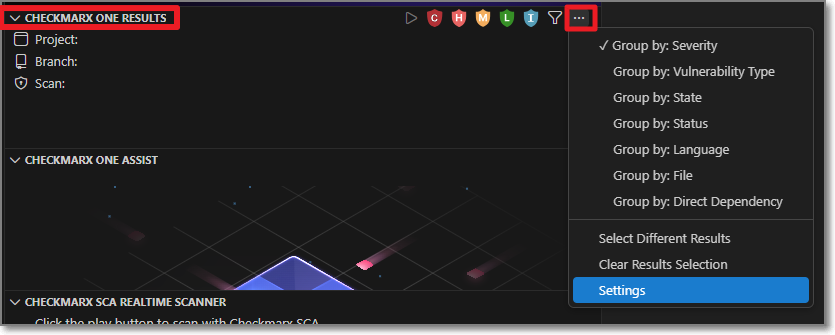

  4. In the Checkmarx One Results sidebar, click on the more options icon in the top right and select Settings.

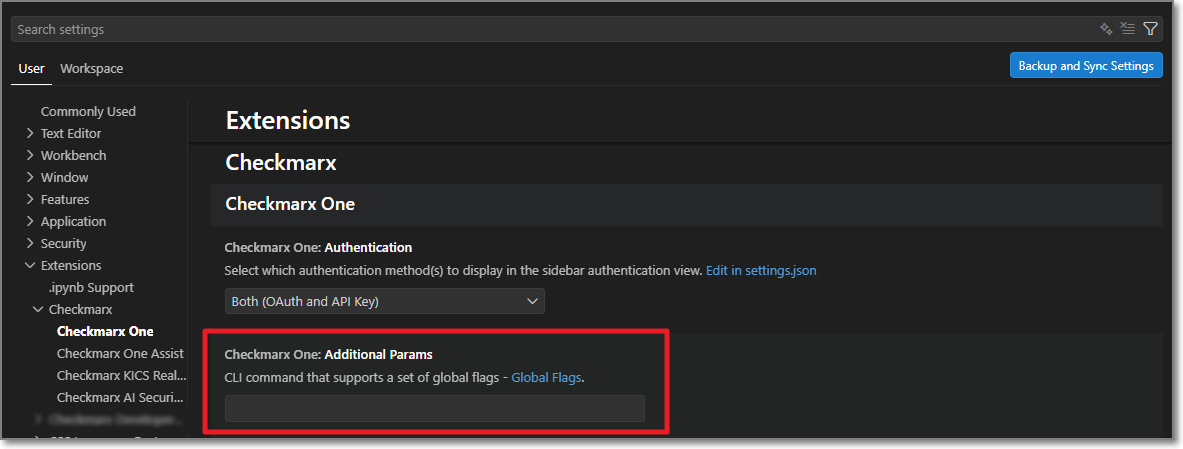

  5. In the Additional Params field, you can submit additional CLI params. This can be used to manually submit the base url and tenant name if there is a problem extracting them from the API Key. It can also be used to add global params such as --debug or --proxy. To learn more about CLI global params, see Global Flags.


Configuring Checkmarx Developer Assist

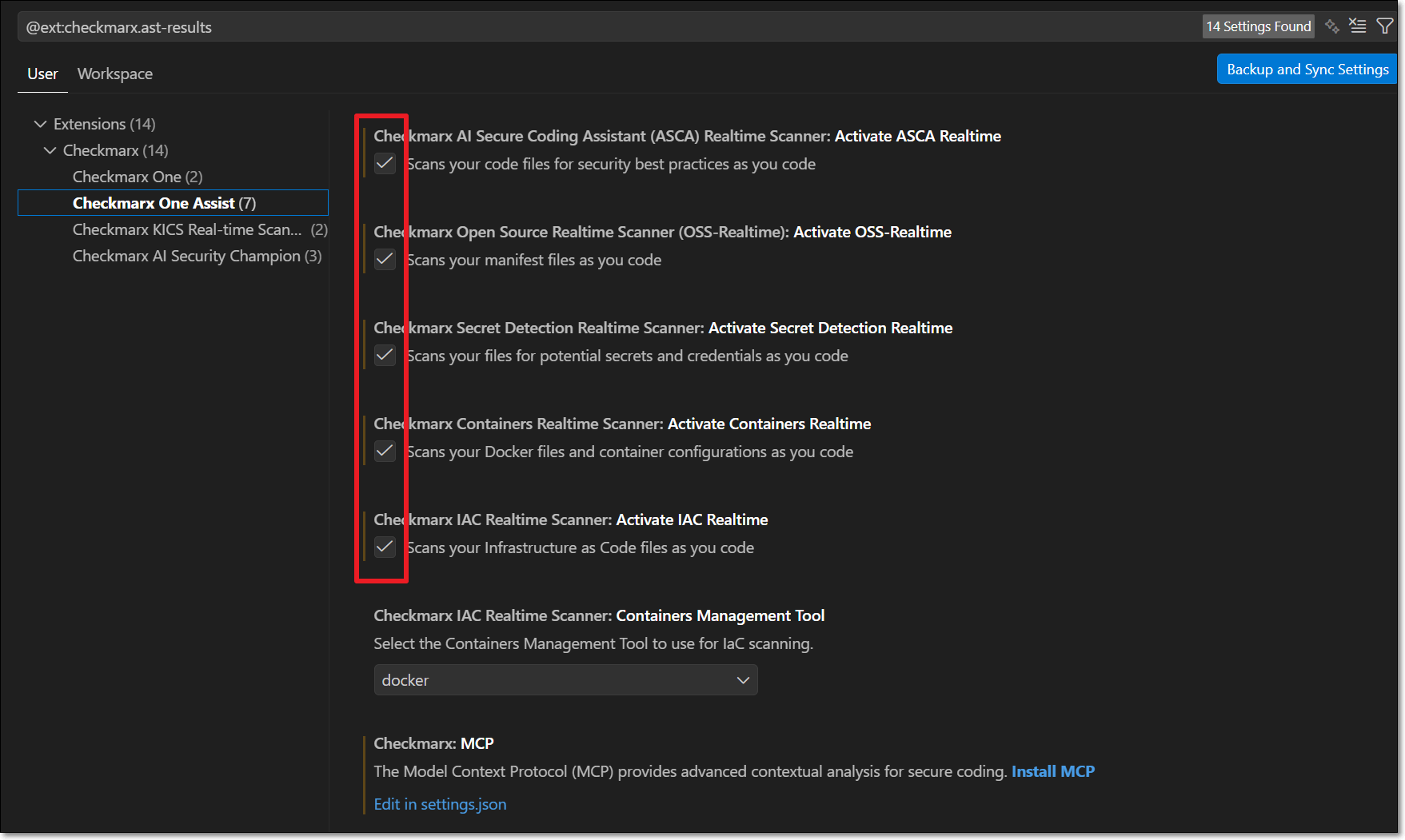

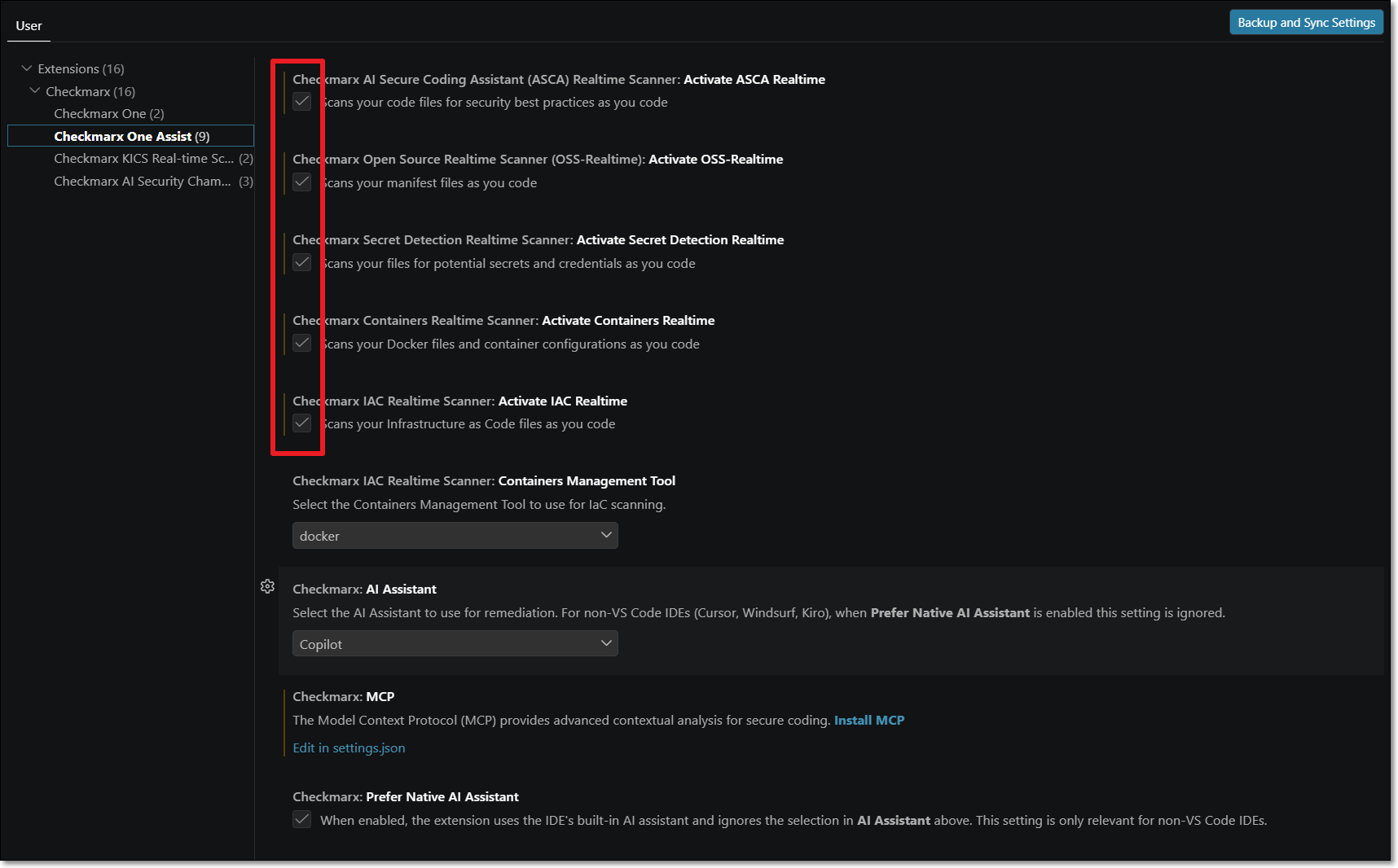

  1. Go to the Checkmarx settings and select Checkmarx One Assist settings.

  2. Make sure that the desired Checkmarx One Assist checkboxes are selected.

    If MCP is activated on the tenant level, then these should be selected by default. You can deselect any scanners that you don't want to run.


  3. For the IaC Realtime scanner, select the Containers Management Tool used in your environment. Options are docker or podman.

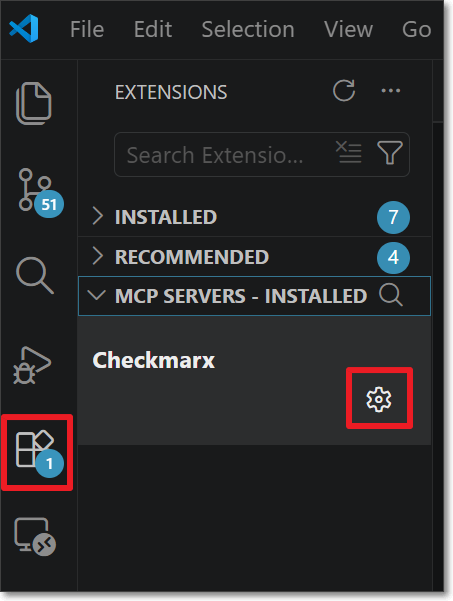

  4. Click View > Command Pallete and enter MCP:List Servers.


  5. In the MCP servers list, select Checkmarx Developer Assist.

  6. Click on Start Server.

Troubleshooting MCP Installation

In case the automatic installation procedure fails. You can manually configure access to the Checkmarx MCP server using the following procedure.

  1. If it does not already exist, create an mcp.json file at the following location: ${homeDir}\AppData\Roaming\Code\User\mcp.json

  2. Add the "checkmarx" mcp using the following snippet, replacing the placeholders as follows:

    • Checkmarx_one_base_url - The base URL of your Checkmarx One environment.

    • Checkmarx_one_API_key - An API Key for your Checkmarx One account.

      {
   "servers":{
      "checkmarx":{
         "url":"<Checkmarx_one_base_url>/api/security-mcp/mcp",
         "headers":{
            "cx-origin":"VSCode",
            "Authorization":"<Checkmarx_one_API_key>"
         }
      }
   }
}

  3. Start running the MCP server as follows:

    1. For the IaC Realtime scanner, select the Containers Management Tool used in your environment. Options are docker or podman.

    2. Click View > Command Pallete and enter MCP:List Servers.


    3. In the MCP servers list, select Checkmarx.

    4. Click on Start Server.

Configuring AI Security Champion

AI Security Champion can be used with the Checkmarx One tool as well as with the KICS Realtime Scanning tool. In order to use AI Security Champion you need to integrate the VS Code extension with your OpenAI account.

Notice

If the Global Settings for your account have been configured to use Azure AI instead of OpenAI, then the credentials are submitted on the account level and it is not possible to submit credentials in your IDE for an alternative AI model.

To set up the integration with your OpenAI account:

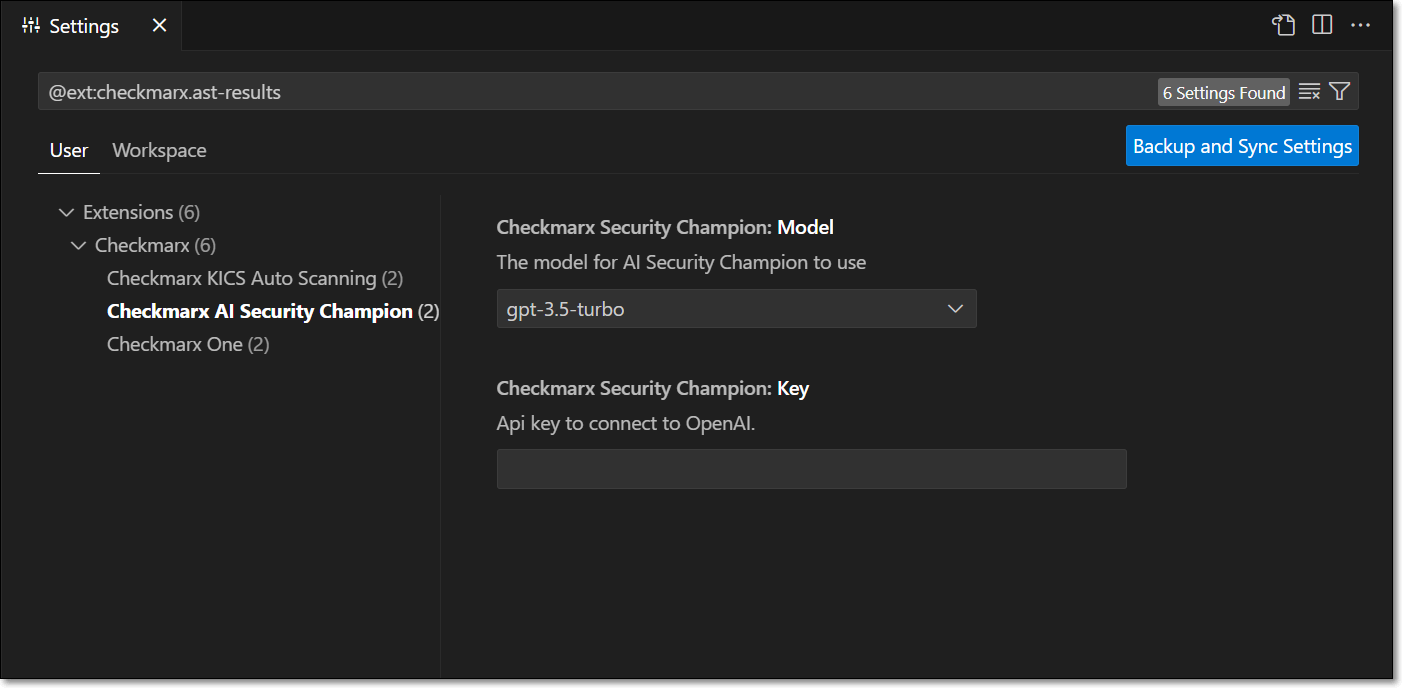

  1. Go to the Checkmarx extension Settings and select Checkmarx AI Security Champion.


  2. In the Model field, select from the drop-down list the model of the GPT account that you are using.

  3. If the model that you would like to use isn't available in the Model drop-down, you can use the Custom Model field to specify the desired model.

    Notice

    If this is specified it will override the model specified in the Model field. This must be a model that is supported for the API Key that you enter in the following step.

  4. In the Key field, enter the API key for your OpenAI account.

    Notice

    Follow this link to generate an API key.

The configuration is saved automatically.

Setting up a Proxy (Optional)

There are three ways to set up a proxy for Checkmarx in VS Code: using Checkmarx One additional parameters, Using VS Code proxy setttings (http.proxy), or using your system’s environment variables.

If multiple methods are used, the following order of precedence is applied (from highest precedence to lowest).

  1. Checkmarx One Additional Parameters

  2. VS Code proxy (http.proxy)

  3. HTTPS_PROXY environment variable

  4. HTTP_PROXY environment variable

Setting up a Proxy using Additional Parameters

  1. In the main navigation, click Customize > All settings.

    The Settings window is shown.

  2. In the Settings window, click Tools > Checkmarx One (or search for Checkmarx One in the search box).

    The Checkmarx VS Code extension configuration settings are shown.

  3. In the Additional parameters section, enter --proxy <proxy_url>, with the proxy_url using the following format http://<proxy_ip>:<port_number>. If authentication is required, then the format should be http://<username>:<password>@<proxy_ip>:<port_number>.

    Notice

    Make sure to include the http:// prefix.

    It is not recommended to pass the username and password in clear text.

  4. Click OK at the bottom of the screen.

Setting up a Proxy Using VS Code Proxy Settings (http.proxy)

  1. In the VS Code console go to File > Preferences > Settings.

  2. In the Settings window search for Proxy.

  3. In the http.proxy field enter your proxy URL using the follwoing format http://<proxy_ip>:<port_number>. If authentication is required, then the format should be http://<username>:<password>@<proxy_ip>:<port_number>.

    Notice

    Make sure to include the http:// prefix.

    It is not recommended to pass the username and password in clear text.

  4. Optionally, set http.proxySupport to override to ensure all VSCode traffic goes through the proxy.

  5. Restart VS Code.

Setting up a Proxy Variable Using your OS System Environment Variables

In your operating system (e.g., Windows, iOS, Linux, etc.), set up system environment variables for HTTP and/or HTTPS.

  • Create an environment variable for HTTP with the following configuration:

    • In the Name field, enter HTTP_PROXY.

    • In the Value field, enter the value of your proxy address using the following format:http://<proxy_ip>:<port_number>. If authentication is required, then the format should be: http://<username>:<password>@<proxy_ip>:<port_number>.

      Notice

      Make sure to include the http:// prefix.

      It is not recommended to pass the username and password in clear text.

  • Create an environment variable for HTTPS with the following configuration:

    • In the Name field, enter HTTPS_PROXY.

    • In the Value field, enter the value of your proxy address using the following format:https://<proxy_ip>:<port_number>. If authentication is required, then the format should be: https://<username>:<password>@<proxy_ip>:<port_number>.

      Notice

      Make sure to include the https:// prefix.

      It is not recommended to pass the username and password in clear text.

Configuring the KICS Realtime Scanning Tool (Optional)

This tool is activated automatically upon installation and no configuration is required.

Notice

It is not necessary to configure the Checkmarx One Authentication settings in order to use the KICS Realtime Scanning feature.

If you would like to customize the scan settings, you can use the following procedure:

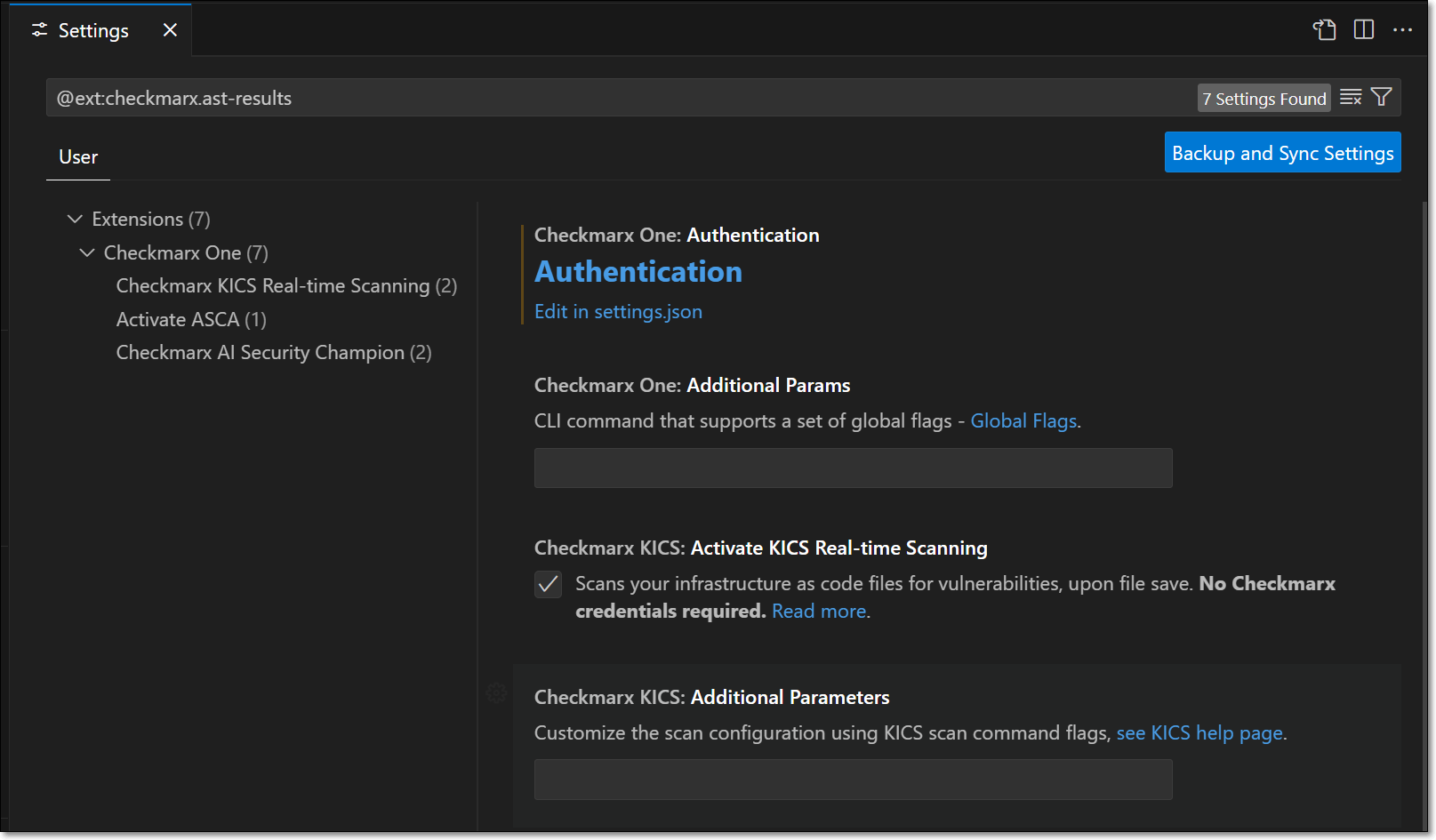

  1. In the VS Code console, go to Settings > Extensions > Checkmarx > Checkmarx KICS Auto Scanning.


  2. By default the extension is configured to run a KICS scan whenever an infrastructure file of a supported type is opened or saved. If you would like to disable automatic scanning, deselect the Activate KICS Auto Scanning checkbox.

    Notice

    In this case, you will still be able to trigger scans manually from the command palette.

  3. If you would like to customize the scan parameters, enter the desired flags in the Additional Parameters field. For a list of available options, see Scan Command Options.
