Data Transformation for the Checkmarx One Integration

Once the data to be imported is identified, it is retrieved from the Checkmarx One API, processed through a set of data sources, and transformed before being loaded into the ServiceNow instance.

Checkmarx One Data Transforms

The data from the API is first loaded into the Checkmarx One AppVulItem Import table, and the Checkmarx One AppVulItem Transform is used to transform the imported information.

The integration uses ServiceNow Transform Maps to map data from temporary import set tables to the target tables in the Vulnerability Response module. You can view these maps by navigating to System Import Sets > Transform Maps .

The primary transform maps are:

CheckmarxOne App List Transform
CheckmarxOne Scan Summary Transform
CheckmarxOne AppVul Item Transform

Note

The integration may not succeed if customizations are made to the target fields on your ServiceNow platform without updating the corresponding transform maps.

The following tables list the transform map fields by integration:

Table 1. CheckmarxOne App List transforms map fields:

Source Field(s) (from CxOne)	Target Field (in ServiceNow)	Description
projectName	Application name	Name of the project in CxOne
projectId	Source Application ID	Unique project UUID
tags	Source APM AppId	A string containing all project tags from CxOne.
groups	Source-assigned teams	String containing the names of the groups/teams assigned to the project in CxOne.
createdAt	Description	Project creation date from CxOne, prefixed with the static string "created at".
applicationId, primaryBranch	Source additional info	JSON object containing the CxOne Application UUID and the name of the project's designated primary branch, if they exist.
(Integration Logic) Deleted project from CxOne	Active	Boolean field is set to `true` when the project is imported and changes to `false` if the project is deleted in CxOne and `Close findings of Deleted Projects` is enabled during a later integration run.

Table 2. CheckmarxOne Scan Summary transforms map fields:

Source Field(s) (from CxOne)	Target Field (in ServiceNow)	Description
projectName	Discovered Applications	Links the scan summary to the corresponding Application Release record.
scanType, scanId	Source scan ID	Unique scan ID from CxOne, prefixed with the scanner type ( `sast` , `sca` , `IaC` , `CS` , `apisec` , `ScoreCard` , or `SecretDetection` ).
scanType, scanId, updatedAt	Scan summary name	Display name composed of the Source Scan ID and the scan's completion timestamp.
updatedAt	Last scan date	Timestamp of scan completion in CxOne.
totalCounter	Detected Flaw Count	Total number of vulnerabilities found by that specific engine in the scan.
loc	Static Scan Size	Lines of Code scanned. (This field is populated for SAST scans only).
branch, prvScanId, prvBranch	Tags	Branch name, previous scanId and previous branch name.
sourceOrigin, sourceType, scan_type	Scan submitted by	A multi-line string containing metadata about the scan origin, source and type.
(Integration Logic) Deleted project from CxOne	Active	Boolean field is set to `true` when the project is imported and changes to `false` if the project is deleted in CxOne and `Close findings of Deleted Projects` is enabled during a later integration run.

Table 3. CheckmarxOne AppVulItem transforms map fields:

Source Field(s) (from CxOne)	Target Field (in ServiceNow)	Description
similarityId, resultHash, id, packageIdentifier, result_hash (+ Branching Logic)	Source AVIT ID	Primary deduplication key. Generated from a combination of vulnerability attributes to uniquely identify a finding. The exact composition depends on the scanner type and Scan Synchronization configuration. See the "Source AVIT ID (Deduplication Key)" section below for the precise logic.
projectName	Discovered Applications	Reference to parent Application Release record.
scanType, scanId, updatedAt (from scan)	Scan summary	Reference to the parent Scan Summary record. The scanType here is the prefix used in the Scan Summary table (e.g., sast, sca, CS for Container Security)
vulnerabilityDetails.cweId (SAST/Containers) vulnerabilityDetails.cveName (SCA) data.queryId (IaC) id (Secrets/Scorecard)	Vulnerability	Reference to the grouped vulnerability entry ( `sn_vul_app_vul_entry` ). The ID is a composite key prefixed with `'Checkmarx One-'` and a unique identifier: SAST/Containers: `CWE-` + `vulnerabilityDetails.cweId` SCA: `vulnerabilityDetails.cveName` (e.g., `CVE-2022-22965` ) IaC: `data.queryId` Secret Detection/Scorecard: `id`
description	Description / Vulnerability explanation	Detailed vulnerability description from Checkmarx One.
data.queryName, vulnerabilityDetails.cweId, data.ruleName	Category name	Vulnerability category name. SAST/IaC: `queryName` . SCA/Containers: `cweId` . Secret Detection/Scorecard: `ruleName` .
data.recommendedVersion (SCA) data.remediation (Secrets/Scorecard) data.remediationLink (Secrets/Scorecard) data.remediationAdditional (Secrets/Scorecard)	Recommendation	SCA: Populated with the recommended package version for remediation. Secret Detection/Scorecard: Populated with a composite string containing remediation text, a link, and additional details. SAST/IaC/Containers: This field is not populated.
http_method, url	Affected URLs	HTTP method and URL for API Security vulnerabilities.
data.nodes[0].fileName	Location	File path where the vulnerability was found.
data.nodes[0].line	Line number	Specific line number of the flaw. Populated for SAST, IaC, Secret Detection and OSSF Scorecard.
branch	Project Branch	Source code branch name where finding was discovered.
data.nodes (SAST) data.exploitableMethods (SCA) notes (IaC) data.ruleDescription (Secrets/Scorecard)	Source notes	Detailed context that varies by scanner: SAST: The full attack vector path, including file names, lines, and columns. SCA: The exploitable path methods, if available. IaC: Reference details for the finding. Secret Detection/Scorecard: The detailed rule description.
data.packageData[*].url	References	Reference URLs for SCA vulnerabilities.
state	Source finding status	Triage state from Checkmarx One (e.g., `TO_VERIFY` , `NOT_EXPLOITABLE` ).
status, state	Source remediation status	Remediation status used for closing vulnerabilities (e.g., `FIXED` , `NEW` ).
severity	Source severity	Vulnerability severity from Checkmarx One (e.g., `HIGH` , `MEDIUM` ).
firstFoundAt	First found	Date the vulnerability was first detected. Populated only if "Include First Detection Date" is enabled.
updatedAt (from scan)	Last found	Timestamp of the scan that found this vulnerability.
Link to result in CxOne UI	Source link	Direct URL to the finding in Checkmarx One UI.
similarityId	Source request	The `similarityId` from Checkmarx One. This field is populated for SAST findings only.
applicationIds, branch	Source additional info	JSON object containing Checkmarx One Application UUID and branch name.
type	Scan type	Scanner type. Note: `SAST` , `IaC (kics)` , `SecretDetection` , and `OSSF ScoreCard` map to static . `SCA` , and `Container Security` maps to sca.
data.packageIdentifier	Package	Unique name and version of vulnerable package (SCA and Container Security).

Table 4: CheckmarxOne AppVulEntry Mappings

Source Field(s) (from CxOne)	Target Field (in ServiceNow)	Description
id, cweId, queryId	source_entry_id	Primary identifier for vulnerability entries. SAST: "Checkmarx One CWE-" + cweId SCA: "Checkmarx One-" + id IaC: "Checkmarx One-" + queryId Containers: "Checkmarx One-" + cweId Secret Detection and Scorecard: "Checkmarx One-" + id
queryName	category_name	Vulnerability category name from CheckmarxOne. SAST and IaC scans: Uses the query name SCA and Container scans: Uses the CWE ID Secret Detection and Scorecard: Uses the rule name
type	scan_type	Scanner type normalized for ServiceNow. SAST, IaC, Secret Detection, Scorecard: Map to "static" SCA and Container Security: Map to "sca"
severity	source_severity	Numeric severity value converted from CheckmarxOne severity strings. CRITICAL: 0 HIGH: 1 MEDIUM: 2 LOW: 3 INFO: 4 Other: 5
cvssScore	cvss_base_score	CVSS base score from CheckmarxOne vulnerability details.
cvss.attackVector	cvss_vector	CVSS vector string from CheckmarxOne vulnerability details.
updatedAt	last_detection_date	Date of the last scan that detected this vulnerability.
compliances	owasp	JSON object containing OWASP Top 10 classification. (This field is populated for SAST scans only).
compliances	short_description	SANS Top 25 classification. (This field is populated for SAST scans only).
firstFoundAt	first_detection_date	Date vulnerability was first detected. (Only populated if "Include First Detection Date" configuration is enabled)
cweId	cwe_list	Array of CWE objects. Contains CWE ID and category name in structured format. (This field is populated for SAST scans only).

Source AVIT ID (Deduplication Key)

The source_avit_id is the most critical field for uniquely identifying a vulnerability and preventing duplicates. Its value is a composite key automatically generated by the integration. The composition of this key changes based on the scanner that found the vulnerability.

Scanner Type	Base Key Composition
SAST	`similarityId` + `_` + `resultHash`
SCA	`id` + `packageIdentifier`
IaC (Kics)	`similarityId`
Container Security	`similarityId` + `_` + `result_hash`
Secret Detection	`similarityId` + `_` + `id`
OSSF Scorecard	`similarityId` + `_`

Branching Logic Impact on Deduplication

Your Scan Synchronization setting on the Configuration page directly impacts the final deduplication key:

If Scan Synchronization is set to "Latest Scan from Each Branch" , the branch name is appended to the Base Key (e.g., [Base Key]main ). This ensures that a vulnerability found in multiple branches is treated as a unique item in each branch.
For all other Scan Synchronization settings ("Latest Scan Across All Branches" or "Latest Scan of Primary Branch"), only the Base Key is used. A vulnerability with the same Base Key will be treated as the same item, regardless of which branch it was found on.

Note on OSSF Scorecard and Secret Detection: Findings from these scanners will always be imported as New and will not show a recurring status in the same way as other scanners due to the nature of their results.

Checkmarx One Transform Map Script Timing and Purpose

The following transform scripts are run during the transformation process.

When the script is run	Purpose
onComplete (when an import set has completed transformation)	Script that is used to process the data source and update the count of AVITs created, updated or unchanged, and the ones imported as part of this integration from Checkmarx One. This script is for internal use and should not be modified or deleted.

Viewing Checkmarx One Vulnerability Integration Import

You can view the data imported by the integration by navigating to the corresponding tables. For quick access, you can type the following commands directly into the Filter Navigator .

To View	Table Name	Filter Navigator Command	Populated by Integration
Imported Projects	Discovered Applications / Application Releases	`sn_vul_app_release_list.do`	Checkmarx One Application List Integration
Imported Scan Summaries	Application Vulnerability Scan Summaries	`sn_vul_app_vul_scan_summary_list.do`	Checkmarx One Scan Summary Integration
Imported Vulnerabilities	Application Vulnerable Items	`sn_vul_app_vulnerable_item_list.do`	Checkmarx One Application Vulnerable Item Integration
Grouped Vulnerability Entries	Application Vulnerability Entries	`sn_vul_app_vul_entry_list.do`	Checkmarx One Application Vulnerable Item Integration
NVD Entries (for SCA)	NVD Entries	`sn_vul_nvd_entry_list.do`	CheckmarxOneAppVulItemIntegration

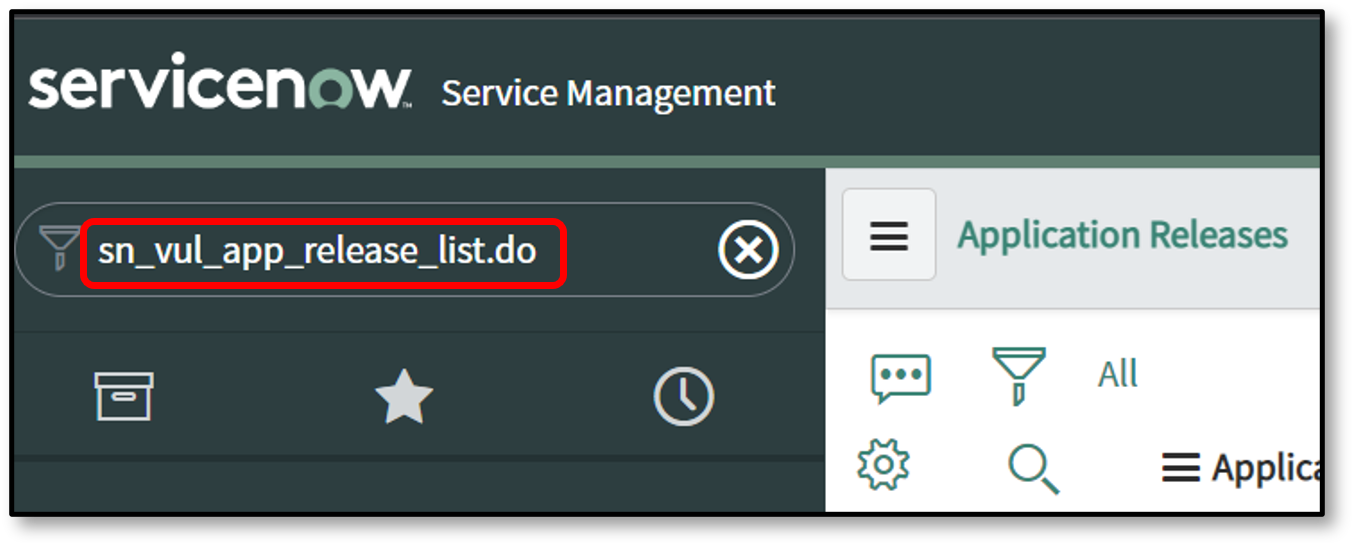

To view the Discovered Applications / Application Releases table in Filter Navigator enter sn_vul_app_release_list.do

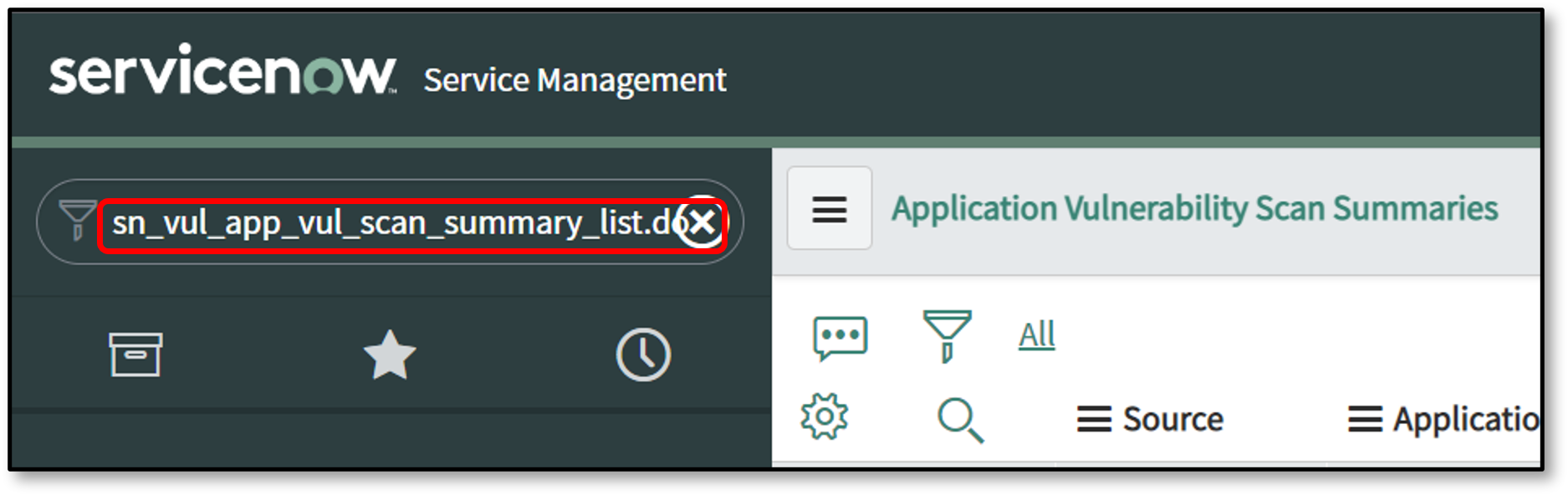

To view the Application Vulnerability Scan Summaries tables in Filter Navigator enter sn_vul_app_vul_scan_summary_list.do

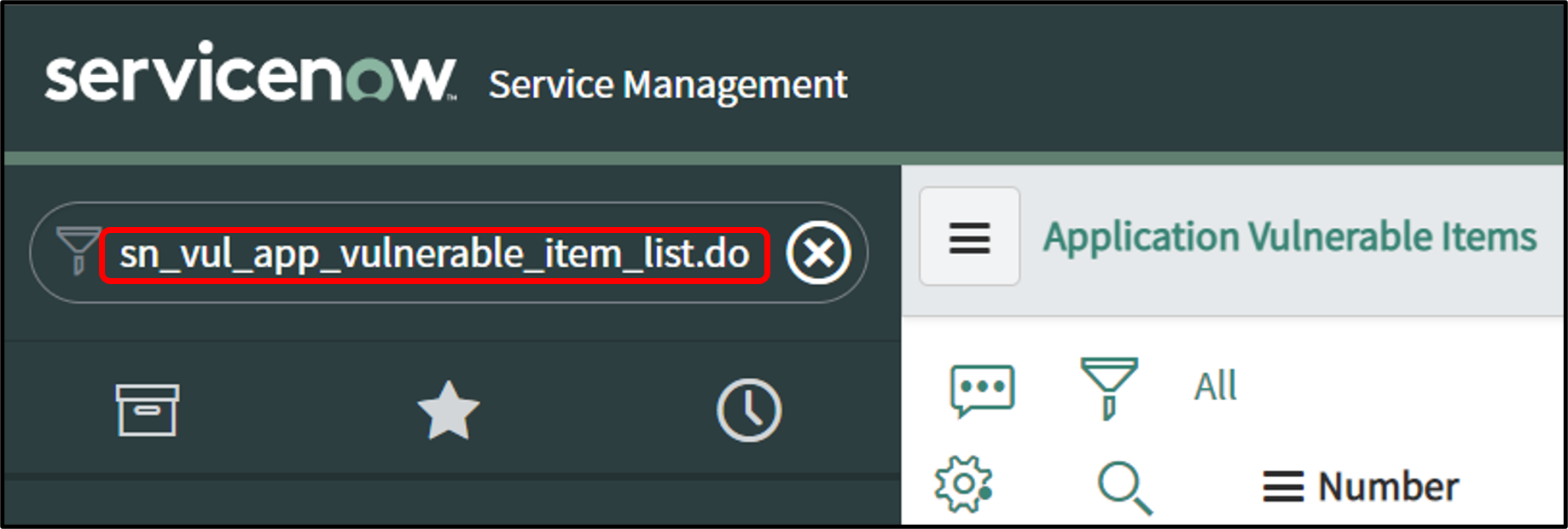

To view the Application Vulnerable Item tables in Filter Navigator enter sn_vul_app_vulnerable_item_list.do

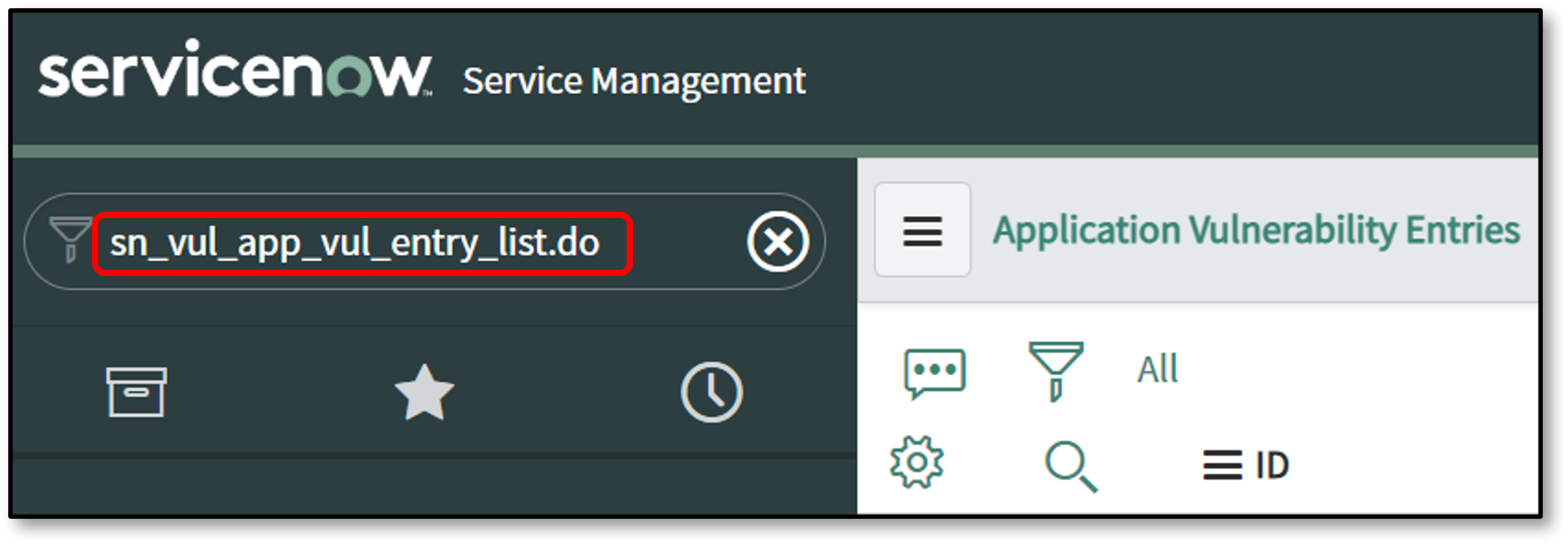

To view the Application Vulnerability Entry tables in Filter Navigator enter sn_vul_app_vul_entry_list.do

Verifying the Property to Produce Closed Vulnerabilities

The behavior for creating records for vulnerabilities that are already closed in Checkmarx One is controlled by a ServiceNow system property.

Navigate to sys_properties.list in the Filter Navigator.
Search for the property with the name sn_vul.create_closed .
Review its value:
- If true : The integration will create new AVI records in ServiceNow even if the finding is already in a "Closed" state in Checkmarx One.
- If false : The integration will not create new records for findings that are already closed. It will only update existing, open AVIs to a "Closed" state.
